Strain Gauge Load Cell
>

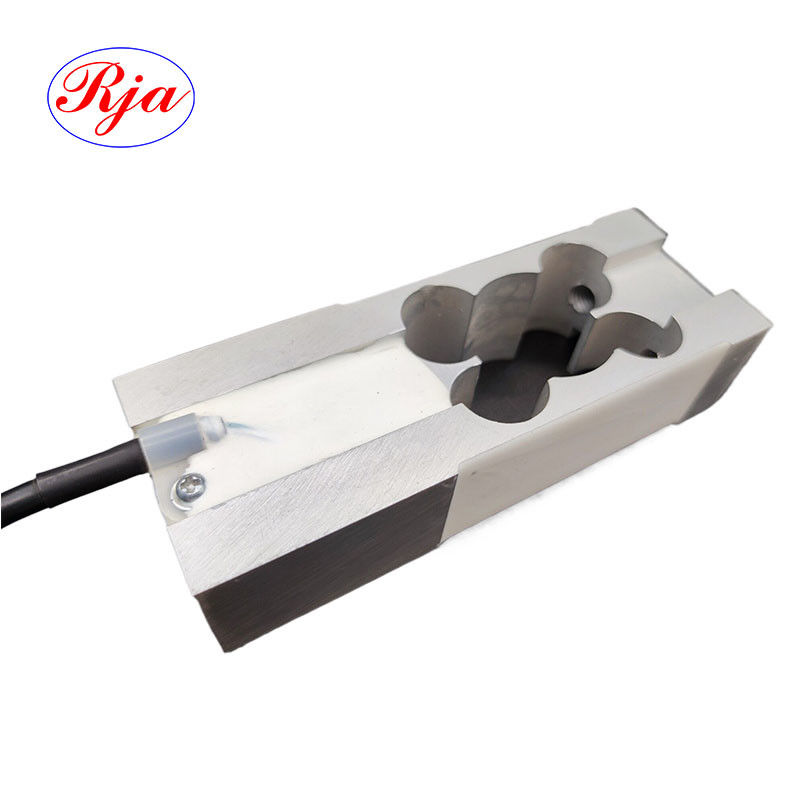

Chinese Load Cell Weight Sensor Transducer Loadcell For Balances

Chinese Load Cell Weight Sensor Transducer Loadcell For Balances

Product Details:
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-6546
Detail Information
Place of Origin:
china
Brand Name:
ruijia
Model Number:
RJ-6546
Capacity:
5/8/20/30/50 Kg
Creep(15min):
±0.02 %FS
Proposed Excitation Voltage:
5~12 V
Allowed Excitation Voltage:
18 V
Cable Specification:
Ф5
Protection:
IP65
Place Of Origin:
Shaanxi, China
Safe Overload:
150% F.S.
High Light:

High Light

High Light:

load cell weight sensor transducer

,

balances load cell weight sensor

,

load cell weight sensor

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 9~15/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
10000 Piece/Pieces per Month
Product Description





Chinese load cell weight sensor transducer loadcell for balances





Principle and Structure:





The Weighing Sensor is constructed using the principle of resistance strain. When the measured force acts directly on the strain gauge of the hollow cylinder pasted with the resistance strain gauge through the pull-indenter, the strain gauge is axially compressed and radially expanded, the corresponding axial resistance strain value decreases, and the radial value increases.This results in a decrease in the corresponding axial resistance strain value and an increase in the radial value. When the bridge is out of balance, an unbalanced voltage output is generated at the angle output when the bridge power is supplied from the outside. This output is proportional to the measured force acting on the load cell. The weighing sensor utilizes this principle to measure forces accurately and efficiently.





Features:



  1. Simplicity and Portability: The weighing sensor features a straightforward design that facilitates easy installation and use. Its compact size also makes it convenient to carry, allowing for flexible applications in various settings.

  2. Excellent Sealing and Moisture Resistance: The sensor is well-sealed, offering superb moisture-proof capabilities. This protective feature ensures reliable performance even in damp or humid environments, which is crucial for maintaining accuracy in tough conditions.

  3. High Anti-Vibration and Shock Stability: Designed to withstand vibrations and shocks, the weighing sensor maintains stability during measurements. This robustness is particularly important in industrial settings where machinery operation can cause disturbances.

  4. Minimal Transmission Error and Reliable Measurement: The structural design of the weighing sensor ensures minimal transmission error, leading to dependable measurement results. It exhibits good static and dynamic characteristics, making it suitable for precise weight determinations in both steady-state and changing conditions.

  5. Suitability for Long-Distance Measurements: The sensor can perform accurately over long distances, making it ideal for remote monitoring and measurement applications. This capability enhances its usefulness in scenarios requiring extended ranges of measurement without sacrificing accuracy.



Dimension:



Chinese Load Cell Weight Sensor Transducer Loadcell For Balances 0





Specification:



Capacity Kg 5/8/20/30/50
Sensitivity mV/V 1.9±0.2
Accuracy

±0.02

Creep(15min) %FS ±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ ±0.017
Temperature Effect on Zero %FS/10℃ ±0.017
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф5
Cable length m 3
Material   Aluminum Alloy




























































Chinese Load Cell Weight Sensor Transducer Loadcell For Balances 1



Company Information
Chinese Load Cell Weight Sensor Transducer Loadcell For Balances 2

Our company takes product technology as guide, cooperates with partners confidentially, and strives to become your better supplier with perfect after-sales service as its guarantee.Since our company began to study resistance strain gauge in 1997, it has continuously pursued technological innovation and developing and producing in strict accordance with the 0IML62# recommendation and GB/T13992-92 standard. Our company employs several senior members of the strain gauge industry as the technical consultant for many years, and has more than 20 years of technical and technological personnel engaged in the industry, so as to ensure the long-term stability and consistency of our products.For many years, our company has been strengthening its cooperation with research institutions in polymer material industry to develop base materials which suitable for high-quality resistance strain gauge. The strain gauge produced by our company is suitable for manufacturing medium-precision and high-precision weighing load cells and precision stress analysis, greatly reducing the lag and non-linear error of products and improving the stability of the product.



Application

Chinese Load Cell Weight Sensor Transducer Loadcell For Balances 3

Process flowchart

Chinese Load Cell Weight Sensor Transducer Loadcell For Balances 4

Packing & Shipping
Chinese Load Cell Weight Sensor Transducer Loadcell For Balances 5


FAQ



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.



2.Do you accept customized?

Yes, we have different customers make their own OEM products. So we can make products as per your requirement.



3. When will you arrange the production?

We will arrange the production immediately after receiving your payment.



4. Can I get some samples before place order and how long for a sample?

Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.


5. Do you have any discount?

To clients who bring repeat orders and large orders. Please contact us for better quote.

E-mail: frank0505@126.com   yangzaiquan@xarj.cn                           Whats: +18992920670


Looking forward to cooperating with you!
