Alloy Steel Strain Gauge Load Cell For Crane Scales Analog Output 5kg 10kg

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-9320
Minimum Order Quantity: 1pc
Price: USD20-40/pc
Packaging Details: Product packed in foam box with bubble bag.
Delivery Time: 2-4 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Usage: Compression And Tension Theory: Resistance Sensor
Output: Analog Sensor Comprehensive Error: ±0.03 & ±0.02
Safe Overload (%F.S): 150 Material: Alloy Steel
Accuracy: C2 / C3 Application: Crane Scale, And Other Electronic Weighing Devices
High Light:

alloy steel load cell

,

weighing scale load cell


Product Description



Alloy Steel Strain Gauge Load Cell For Crane Scales Analog Output 5kg 10kg





What is strength of  Load cell?



1. Made of alloy steel

2. With glue sealing and nickel plated surface,waterproof and anticorrosion, could work for various application

3. Suitable for crane scale, vibratory feeding equipment and other electronic weighing devices

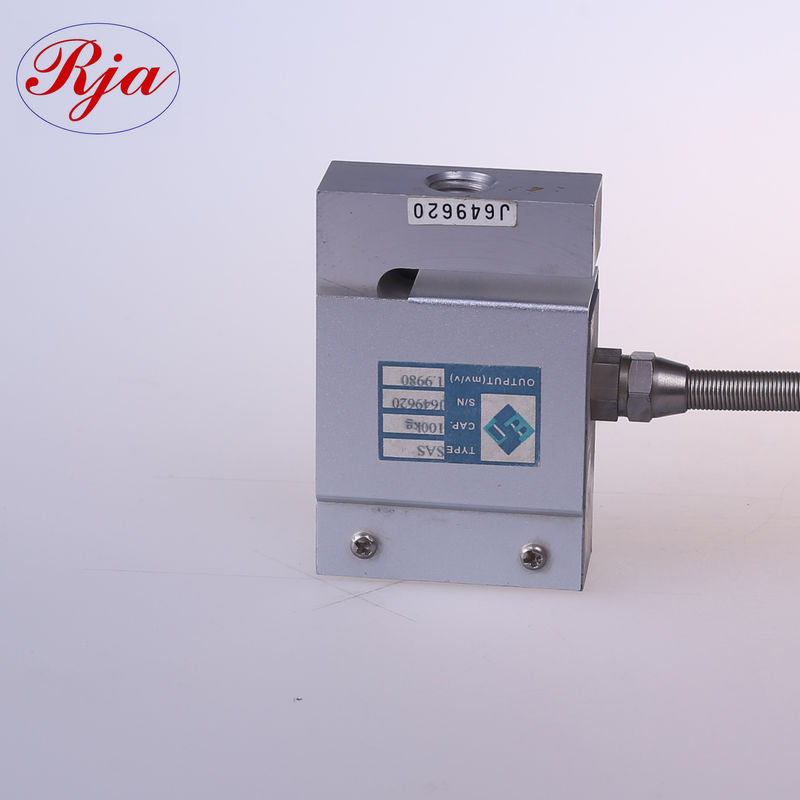

What is Detailed image of  Load cell?





GSL301



GSL301

What is Specifications of Load cell?



Specification:

Range (KG): 10, 50, 100, 150, 200, 250, 300, 500, 1000, 2000, 5000

Accuracy: C2/ C3

Temp. effect on span (%F.S/10℃): ±0.017 & ±0.011

Comprehensive error (%F.S): ±0.03 & ±0.02

Temp. effect on zero (%F.S/10℃): ±0.023 & ±0.015

Rated output (mV/ V): 2.0±0.004

Compensated temp. range (℃): -10~+40

Creep (%F.S/30min): ±0.024 & ±0.016

Operation temp. range (℃): -20~+55

Zero balance (%F.S): ±1.0

Excitation voltage (V): 9-12(DC)

Input resistance (Ω): 350±5

Safe overload (%F.S): 150

Output resistance (Ω): 350±3

Ultimate overload (%F.S): 200

Insulation resistance (MΩ): ≥5000 (100VDC)

Ingress protection: IP66



What is Dimension of Load cell?



GSL301 500kg S type Compression Tension Load Cell

Range (kg )

A

B

C

M

10-50

51

12.7

64

M8

100-500

51

19

76

M12

750-1500

50.8

25.4

76

M12 X1.75

2000-5000

76.2

25.4

108

M18X1.5





What is Application of Load cell?

GSL301 500kg S type Compression Tension Load Cell





What is Process Flowchart of Load cell?

Alloy Steel Strain Gauge Load Cell For Crane Scales Analog Output 5kg 10kg 4







Packaging & Shipping



Alloy Steel Strain Gauge Load Cell For Crane Scales Analog Output 5kg 10kg 5

GSL301



Our Services



Service standards: we are committed to provide a high quality and responsive service to all clients

The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.

Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.

Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business

OEM available



FAQ



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.



2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.



3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.



4. When will you arrange the production?

We will arrange the production immediately after receiving your payment.



5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
