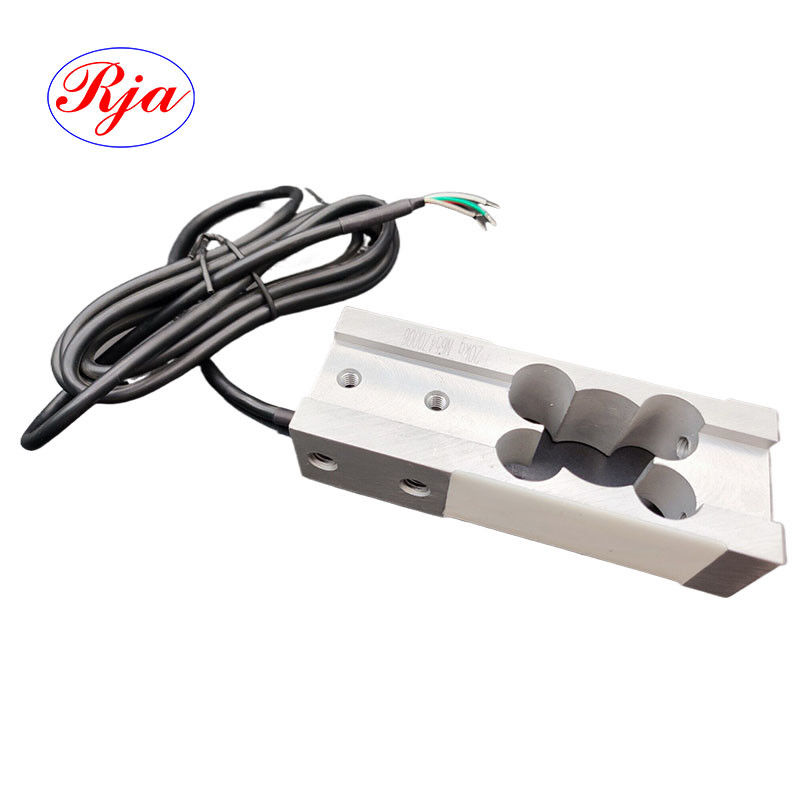

Resistive load cell weight sensor transducer for medical weighing
Principle and Structure:
The weighing sensor employs the resistance strain principle wherein the applied force is directly transmitted to the strain gauge on a hollow cylinder, resulting in axial compression and radial expansion. This change affects the axial and radial resistance strain values, causing an imbalance in the attached Wheatstone bridge. With external power, the bridge generates an output voltage at its angle output, proportional to the force on the load cell, ensuring precise measurement.
Features:
The sensor offers high precision and accuracy, ensuring reliable results.
It provides excellent temperature stability, minimizing errors caused by fluctuating temperatures.
The sensor is highly resistant to electromagnetic interference, ensuring stable performance in various environments.
It consumes low power, making it suitable for energy-efficient applications.
The sensor has a wide measuring range, accommodating a variety of measurement needs.
Dimension:
Specification:
| Capacity | Kg | 5/8/20/30/50 |
| Sensitivity | mV/V | 1.9±0.2 |
| Accuracy |
±0.02 |
|
| Creep(15min) | %FS | ±0.02 |
| Input Resistance | Ω | 406±20 |
| Output Resistance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ±1 |
| Temperature Effects on Span | %FS/10℃ | ±0.017 |
| Temperature Effect on Zero | %FS/10℃ | ±0.017 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 5～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | IP65 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 3 |
| Material | Aluminum Alloy |
