Strain Gauge Load Cell
>

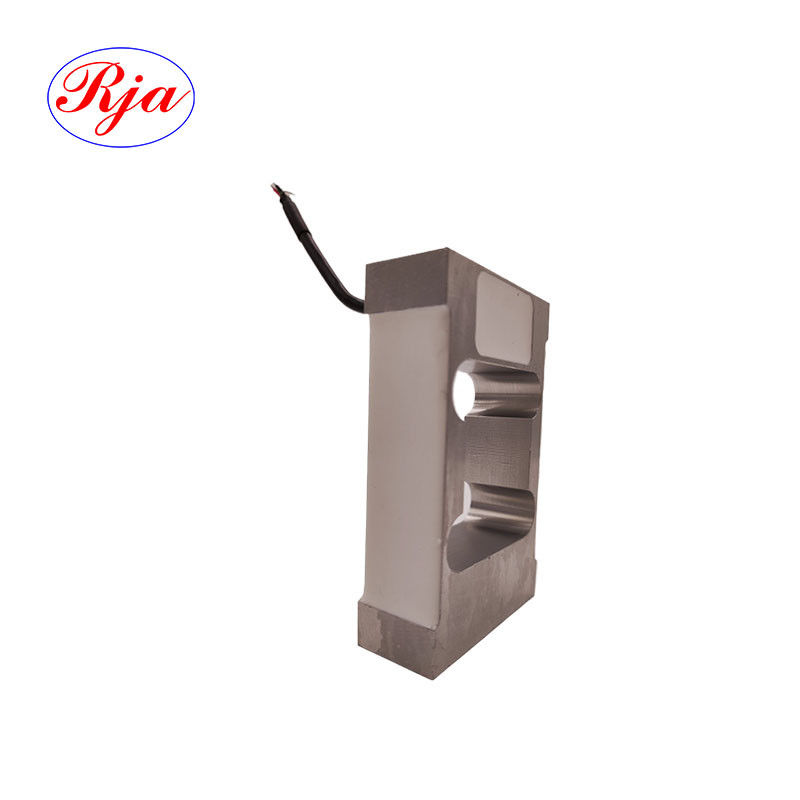

High Accuracy Single Point Load Cell For Packing Scale 5kg 8kg 20kg

High Accuracy Single Point Load Cell For Packing Scale 5kg 8kg 20kg

Product Details:
Place of Origin: china
Brand Name: ruijia
Certification: CE
Model Number: RJ-6522
Detail Information
Place of Origin:
china
Brand Name:
ruijia
Certification:
CE
Model Number:
RJ-6522
Capacity:
4/5/6/8/10/15/20/30 Kg
Creep(15min):
±0.02 %FS
Rated Temperature Range:
-10~+60 ℃
Operating Temperature Range:
-20~+80 ℃
Cable Specification:
Ф4
Protection:
IP65
High Light:

High Light

High Light:

20kg single point load cell

,

5kg single point load cell

,

8kg single point load cell

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 8~13/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
10000 Piece/Pieces per Month
Product Description

High accuracy single point load cell for packing scale 5kg 8kg 20kg



A load cell, or weighing sensor, is a device that converts force applied to it into a measurable electrical output. Common types include compression, tension, torque, and shear load cells. They utilize strain gauges that deform under stress, changing their electrical resistance in a predictable manner. This principle allows for the accurate measurement of weight and forces in various applications, from industrial scales to scientific research. Load cells are available in different materials, capacities, and precision levels to meet the requirements of diverse fields such as manufacturing, aerospace, and construction.



Features:

1. The weighing sensor has a simple structure and is easy to install, use and carry.

2. It has good sealing and moisture-proof performance.

3. It has high anti-vibration and shock stability.

4. The structural design ensures that the transmission error is small and the measurement is reliable, and it has good static and dynamic characteristics.



Single Point Load Cells
Capacity
4kg 6kg 10kg 20kg 30kg
Accuracy Class
G
Rated output
2.0±5%mV/V
Zero balance
±2%R.O.
Linearity Error
±0.015%R.O.
Repeatability Error
±0.01%R.O.
Hysteresis Error
±0.01%R.O.
Creep(30 minute)
±0.02%R.O.
Temp.Effect on Output
±0.02%R.O./10°C
Temp.Effect on Zero
±0.02%R.O./10°C
Input resistance
405±10Ω
Output resistance
350±3Ω
Insulation Resistance
≥5000MΩ(50VDC)
Temperature Compensated
-10-+40°C
Operating Temperature Range
-20-+60°C
Excitation,recommended
5~12VDC
Excitation,maximum
18VDC
Safe overload
150%.R.C
Ultimate Overload
200%.R.C
Cable,and length
φ4mm×0.1m *
Protection Class
IP65
