Strain Gauge Load Cell
>
Industrial Aluminum Alloy Weighing Sensor 50kg 100kg 200kg Platform Scale

Industrial Aluminum Alloy Weighing Sensor 50kg 100kg 200kg Platform Scale

Product Details:
Place of Origin: china
Brand Name: ruijia
Model Number: PT-M10
Detail Information
Place of Origin:
china
Brand Name:
ruijia
Model Number:
PT-M10
Mounting Type:
Screw Mount
Model Number:
6540
Description:
Flat Platform Scale Sensor
Certificate:
CE
Safe Overload:
150% F.S.
Theory:
Resistance Sensor
High Light:

High Light

High Light:

200kg aluminum alloy weighing sensor

,

100kg aluminum alloy weighing sensor

,

50kg aluminum alloy weighing sensor

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 50/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
10000 Piece/Pieces per Month
Product Description

Introduction to products

The Weighing Sensor operates on the basis of resistance strain. It functions by having the force being measured exerted onto the strain gauge, which is affixed to a hollow cylinder. This force is transmitted through an indenter that pulls, causing the gauge to compress axially and expand radially. Consequently, the axial resistance strain value diminishes while the radial value increases. An imbalance occurs in the Wheatstone bridge circuitry, leading to an output voltage at the bridge's angle, indicative of the force applied to the load cell.



Specification

Capacity(Kg):50/100/150/200/250/350/500
Temp. effect on zero(%F.S/10℃) : ±0.02
Sensitivity(mv/v): 2.0±0.2
Rated temprature range(℃ ) : -10~+60
Accuracy : ±0.02
Operating temperature range(℃ ) : -20~+80
Creep(%F.S/15min) :±0.02
Proposed Excitation voltage(V) : 5~12
Input resistance(Ω) : 406±20
Allowed Excitation voltage(V) : 18
Output resistance(Ω) : 350±5
Safe overload (%F.S) : 120
Insulation resistance(MΩ): ≥5000(100VDC)
Ultimate overload (%F.S) : 150
Zero Balance(%F.S) :±1
Protection:IP65
Temp. effect on span(%F.S/10℃): ±0.02
Material:Aluminum alloy



Product display

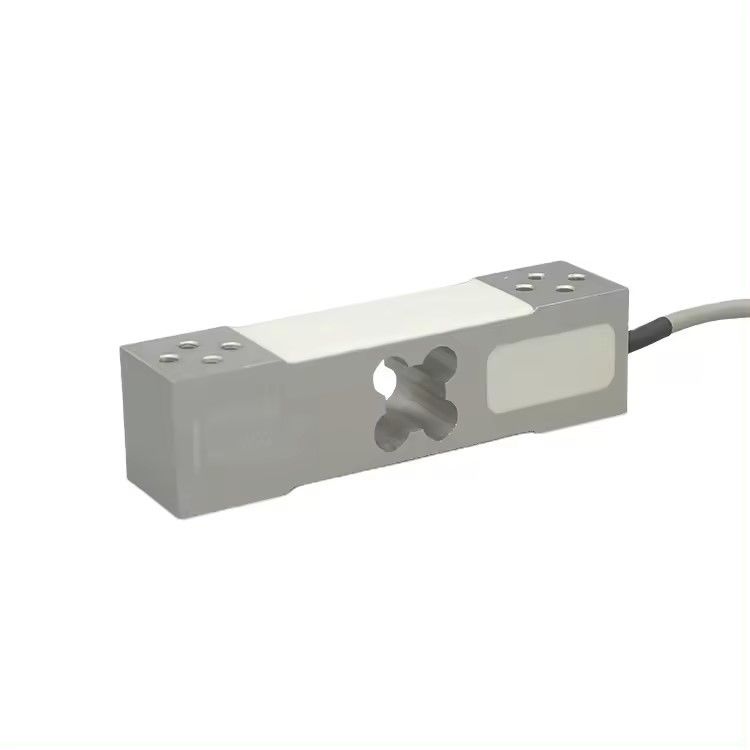

Industrial Aluminum Alloy Weighing Sensor 50kg 100kg 200kg Platform Scale 0
Industrial Aluminum Alloy Weighing Sensor 50kg 100kg 200kg Platform Scale 1
Industrial Aluminum Alloy Weighing Sensor 50kg 100kg 200kg Platform Scale 2
