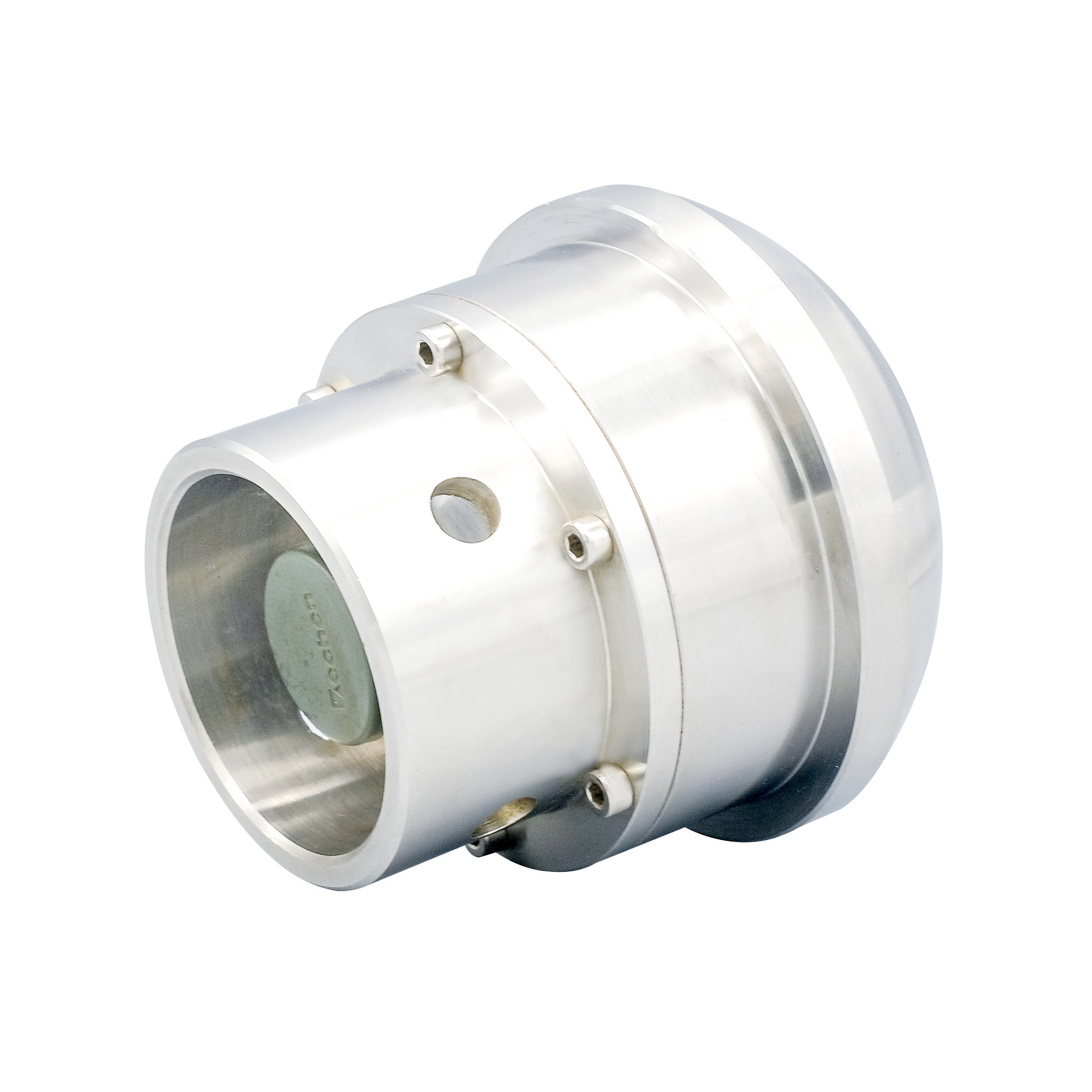

Ruijia PT-5F Hammer Union Pressure Transmitter For Oil Fields

Ruijia PT-5F Hammer Union Pressure Transmitter For Oil Fields

Product Details:
Place of Origin: China
Brand Name: Ruijia
Model Number: PT-5F
Detail Information
Place of Origin:
China
Brand Name:
Ruijia
Model Number:
PT-5F
Hysteresis:
0.2 %FS
Combined Error:
0.5 %FS
Operating Temperature Range:
-40~+125 ℃
Repeatability:
0.1 %FS
Insulation Resistance:
≥5000 MΩ(50VDC)
Protection:
IP67
Annual Stability:
0.5 %FS
Capacity:
5000/10000/15000/20000 Psi
High Light:

High Light

High Light:

Hammer Union Pressure Transmitter

,

Oil Fields Pressure Transmitter

Trading Information
Delivery Time:
10-15 working days
Payment Terms:
L/C, T/T
Product Description

Product Description:

Strain Gauge Load Cell is a high-accuracy weighing device that is widely used in oil fields and other industries. It is made of stainless steel, making it highly durable and corrosion-resistant. The overall structure is exceptionally stable, with insulation resistance of up to 5000 MΩ (50VDC). It is available in four capacity options, including 5000, 10000, 15000 and 20000 Psi. Installation is easy with the 1502 Union, and the electrical connection is E+:A E-:B, with the supply voltage ranging from 9 to 30V.



Features:

  • Product Name: Strain Gauge Load Cell
  • Repeatability: 0.1 %FS
  • Annual stability: 0.5 %FS
  • Operating Temperature Range: -40~+125 ℃
  • Safe Overload: 150%
  • Capacity: 5000/10000/15000/20000 Psi
  • Strain gage pressure transducers: Suitable for Oil Fields
  • Material: Stainless Steel
  • Pressure transmitter: High Accuracy


Technical Parameters:



Ruijia PT-5F Hammer Union Pressure Transmitter For Oil Fields 0





Parameter Value
Repeatability 0.1% FS
Annual Stability 0.5% FS
Capacity 5000/10000/15000/20000 Psi
Operating Temperature Range -40~+125 ℃
Hysteresis 0.2% FS
Safe Overload 150%
Linearity 0.2% FS
Installation Mode 1502 Union
Protection IP67
Electrical Connection E+:A E-:B


Applications:

Ruijia PT-5F Hammer Union Pressure Transmitter for Oil Fields

Ruijia PT-5F Hammer Union Pressure Transmitter is specially designed for oil fields and other highly demanding applications. Made of stainless steel, this explosion-proof pressure transmitter is IP67 rated, so it can work even in harsh environments. The electrical connection features E+:A and E-:B, providing a stable and reliable performance. With a high insulation resistance of ≥5000 MΩ(50VDC) and a safe overload of 150%, this pressure transmitter is a great choice for oil fields and other hazardous areas.

Easy to install with its 1502 Union, the Ruijia PT-5F Hammer Union Pressure Transmitter is one of the most reliable solutions in the market when it comes to measuring pressure in oil fields and other hazardous areas.
