Hammer Union Strain Gauge Load Cell 4-20 MA 5000 / 10000 / 15000 / 20000 Psi Pressure

Basic Information
Place of Origin: China
Brand Name: Ruijia
Model Number: PT-5F
Price: USD 400-500
Payment Terms: T/T, L/C
Detail Information
Electrical Connection: E+:A E-:B Hysteresis: 0.2 %FS
Protection: IP67 Output: 4~20 MA
Safe Overload: 150% Capacity: 5000/10000/15000/20000 Psi
Supply Voltage: 9~30V Linearity: 0.2 %FS
High Light:

Hammer Union Strain Gauge Load Cell


20000 Psi Pressure Gauge


Overall Strain Gauge Load Cell 20ma

Product Description

Product Description:

Strain Gauge Load Cell is an overall structure designed for pressure measurement in oil fields. It is a reliable and compact device made of corrosion-resistant materials. With a safe overload of 150%, an annual stability of 0.5 %FS, an insulation resistance of ≥5000 MΩ(50VDC)and an IP67 protection, it is suitable for measuring pressures from 5000/10000/15000/20000 Psi. It is an ideal Hammer Union Pressure Transmitter for oil fields and other harsh environments.



  • Product Name: Strain Gauge Load Cell
  • Overall Structure: Stainless Steel
  • Insulation Resistance: ≥5000 MΩ(50VDC)
  • Operating Temperature Range: -40~+125 ℃
  • Electrical connection: E+:A E-:B
  • Annual stability: 0.5 %FS
  • Supply voltage: 9~30V

Technical Parameters:

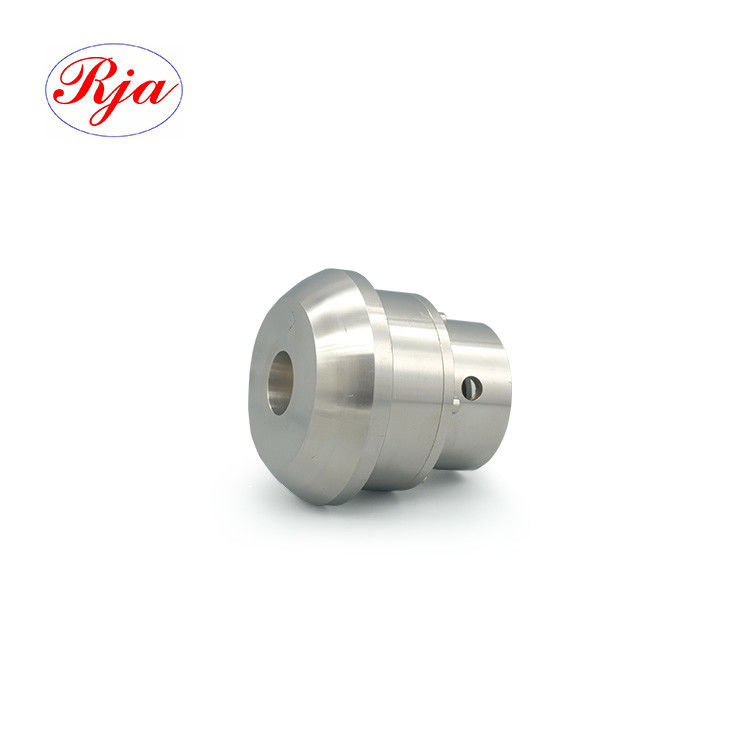

Hammer Union Strain Gauge Load Cell 4-20 MA 5000 / 10000 / 15000 / 20000 Psi Pressure 0

Parameters Details
Supply voltage 9~30V
Combined error 0.5%FS
Output 4~20MA
Ultimate Overload 200%
Protection IP67
Insulation Resistance ≥5000 MΩ (50VDC)
Hysteresis 0.2%FS
Repeatability 0.1%FS
Operating Temperature Range -40~+125℃
Capacity 5000/10000/15000/20000 Psi
Oil Fields Yes
Overall structure Yes
Pressure Measurement Yes
Load cell Yes


Strain Gauge Load Cell – Ruijia PT-5F

The Ruijia PT-5F strain gauge load cell is an ideal choice for a variety of industrial applications that require reliable and accurate measurement of force. It features an overall stainless steel structure with an oil field-grade finish for maximum durability and corrosion resistance. With a 200% ultimate overload and a 150% safe overload, the Ruijia PT-5F offers superior load measurement accuracy. The device operates at a 9-30V supply voltage and delivers an output of 4-20mA. Its insulation resistance is ≥5000 MΩ (50VDC), ensuring reliable operation even in harsh environments.

Packing and Shipping:

Packaging and Shipping of Strain Gauge Load Cell:

The strain gauge load cells are securely packaged in certified, heavy-duty boxes. These boxes are lined with shock absorbent material and the cells are secured in place with foam inserts. The cells are then sealed with additional labeling to ensure that the product arrives in perfect condition.

Once the package is ready, it is shipped via a reliable and secure shipping carrier. The package is tracked and monitored throughout its entire journey to ensure that it is delivered quickly and safely.
