| Place of Origin: | China |
| Brand Name: | Ruijia |
| Model Number: | RJ-6502 |

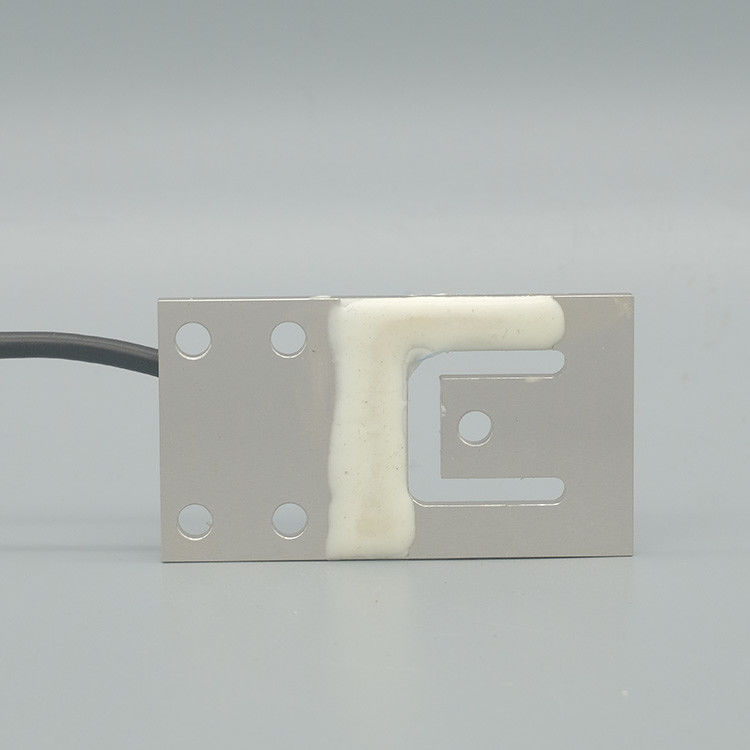

Strain gauge load cells are advanced weighing sensors designed for a wide range of applications, from baby scales to industrial scales. They consist of a planar beam with strain gauges attached. Their output resistance is 1090±30 Ω, and they have a capacity of 7kg, 10kg, 30kg, 75kg, 150kg, and 300kg. They are able to handle 150% of capacity without damage, and have a zero balance of ±2%. Additionally, they have an IP65 protection class.
| Capacity | Kg | 7.5 | 15 | 30 | 75 | 150 | 300 |
| Sensitivity | mV/V |
1.0±0.2 |
1.5±0.2 | ||||
| Sensitivity | %FS | 0.05 | |||||
| Creep(5min) | %FS |
0.02 |
|||||
| Linearity Error | %FS | 0.05 | |||||
| Hysteresis Error | %FS | 0.02 | |||||
| Repeatability Error | %FS | 0.02 | |||||
| Input Resistance | Ω | 1090±30 | |||||
| Output Resistance | Ω | 1000±10 | |||||
| Insulation Resistance | M Ω | ≥5000(100VDC) | |||||
| Zero Balance | %FS | ±2 | |||||
| Temperature Effects on Span | %FS/10℃ | 0.05 | |||||
| Temperature Effect on Zero | %FS/10℃ | 0.05 | |||||
| Rated Temperature Range | ℃ | -10～+40 | |||||
| Operating Temperature Range | ℃ | -20～+60 | |||||
| Proposed Excitation Voltage | V | 6～12 | |||||
| Allowed Excitation Voltage | V | 3～15 | |||||
| Safe Overload | %FS | 120 | |||||
| Ultimate Overload | %FS | 150 | |||||
| Protection | IP65 | ||||||
| Cable specification | mm | Φ3.8UL & Φ1Electronic wiring | |||||
| Cable length | m | 0.6 | |||||
| Material | Aluminum Alloy | ||||||
The Strain Gauge Load Cell product will be packaged securely using anti-static foam, cardboard, and bubble wrap materials for shock absorption. The Load Cell will be placed in a sealed bag and placed in a shock-resistant box for shipping.
The box used for shipping the Strain Gauge Load Cell will be labeled with the customer's name, address, and a unique tracking number. It will be securely sealed with packing tape to ensure that the contents remain secure during transit.
The Strain Gauge Load Cell will be shipped via an insured and reliable freight carrier. The customer will be notified of the tracking number and shipment status via email.
