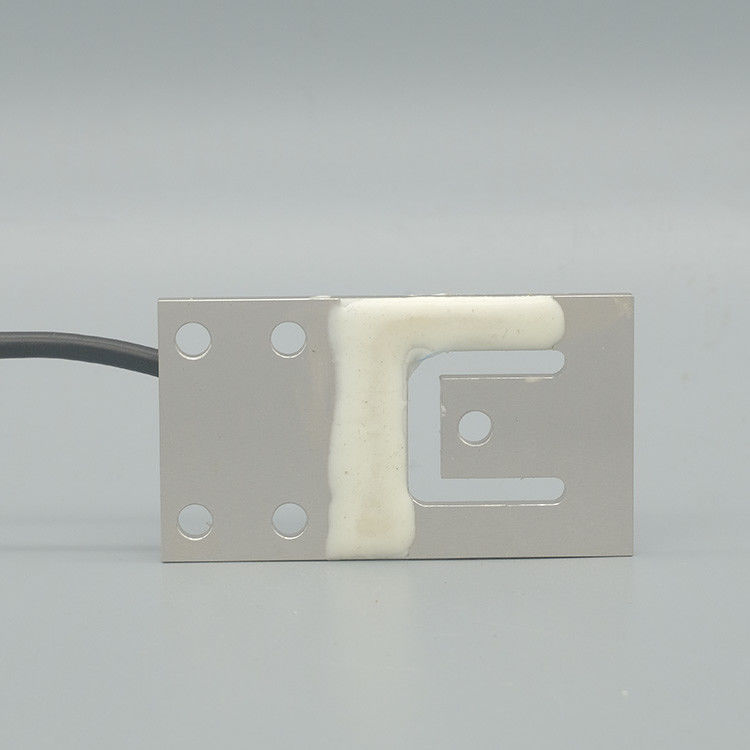

Planar Beam Strain Gauge Load Cell High Precision For Capacity Low Profile Medical Scale

Name: Planar Beam Strain Gauge Load Cell High Precision For Capacity Low Profile Medical Scale
Brand: Ruijia
SKU: RJ-6502
Price: 4 USD
Availability: InStock
Rating: 4.8 (149 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Ruijia
Model Number:	RJ-6502

Detail Information

Place of Origin:

China

Brand Name:

Ruijia

Model Number:

RJ-6502

Sensitivity:

1.0±0.2 / 1.5±0.2

Protection Class:

IP65

Creep（5min):

0.02%FS

Proposed Excitation Voltage:

3-15V

Compensated Temperature:

-10℃-40℃

Operating Temperature:

0℃-60℃

Safe Overload:

150%

Input Resistance:

385Ω

Highlight:

High Light

Highlight:

Planar Beam Strain Gauge Cell

Medical Scale Spoke Type Load Cell

Low Profile Strain Gauge Load Cell

Trading Information

Price:

USD 4-7/piece

Payment Terms:

L/C, T/T

Product Description

Product Description:

RJ-6502 is a weighing sensor with a planar beam structure and low profile that allows for self-centering. It is designed for applications that require a low profile solution. Typically, it will be used in sets of three or four per scale, such as retail scales, medical scales, or any weighing environment where space is limited.

Features:

Ultra-low profile
Anodized aluminum alloy construction
Multi-range with same structure: from 7.5kg to 300kg
Can be used individually or in combination

Dimensions:

Planar Beam Strain Gauge Load Cell High Precision For Capacity Low Profile Medical Scale 0

Parameters:

Capacity	Kg	7.5	15	30	75	150	300
Sensitivity	mV/V	1.0±0.2				1.5±0.2
Sensitivity	%FS	0.05
Creep(5min)	%FS	0.02
Linearity Error	%FS	0.05
Hysteresis Error	%FS	0.02
Repeatability Error	%FS	0.02
Input Resistance	Ω	1090±30
Output Resistance	Ω	1000±10
Insulation Resistance	M Ω	≥5000(100VDC)
Zero Balance	%FS	±2
Temperature Effects on Span	%FS/10℃	0.05
Temperature Effect on Zero	%FS/10℃	0.05
Rated Temperature Range	℃	-10～+40
Operating Temperature Range	℃	-20～+60
Proposed Excitation Voltage	V	6～12
Allowed Excitation Voltage	V	3～15
Safe Overload	%FS	120
Ultimate Overload	%FS	150
Protection		IP65
Cable specification	mm	Φ3.8UL & Φ1Electronic wiring
Cable length	m	0.6
Material	Aluminum Alloy

FAQ:

Q: What is Strain Gauge Load Cell?: A: Strain Gauge Load Cell is a type of force transducer which converts the mechanical force into an electrical signal, to measure the tension, compression, weight, etc.
Q: What is the Brand Name of Strain Gauge Load Cell?: A: The Brand Name of Strain Gauge Load Cell is Ruijia.
Q: What is the Model Number of Strain Gauge Load Cell?: A: The Model Number of Strain Gauge Load Cell is RJ-6502.
Q: Where is Strain Gauge Load Cell made?: A: Strain Gauge Load Cell is made in China.
Q: What is the capacity of Strain Gauge Load Cell?: A: The capacity of Strain Gauge Load Cell depends on the model. The capacity of Ruijia RJ-6502 is 5kg.
