| Place of Origin: | China |
| Brand Name: | Ruijia |
| Model Number: | RJ-9810 |

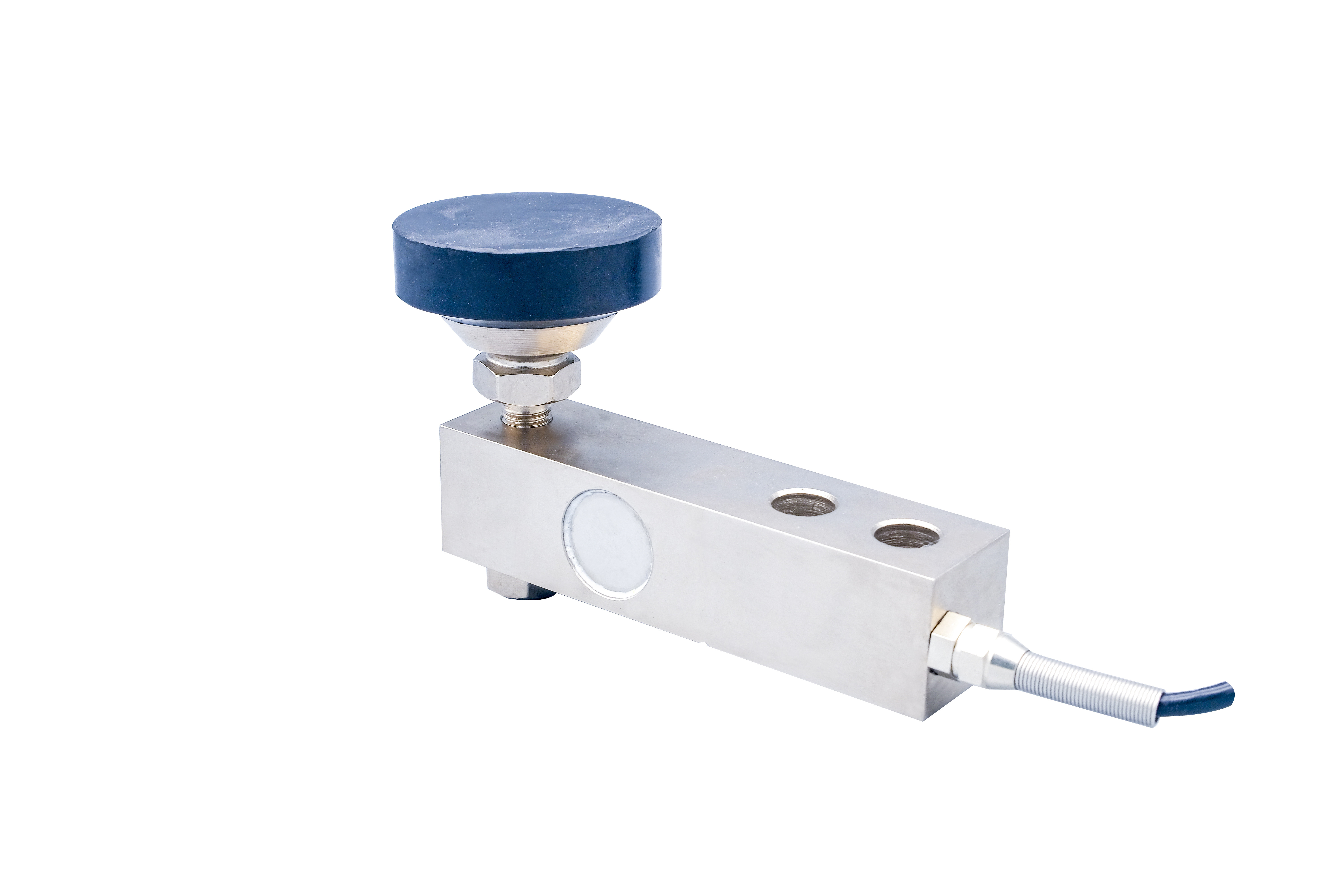

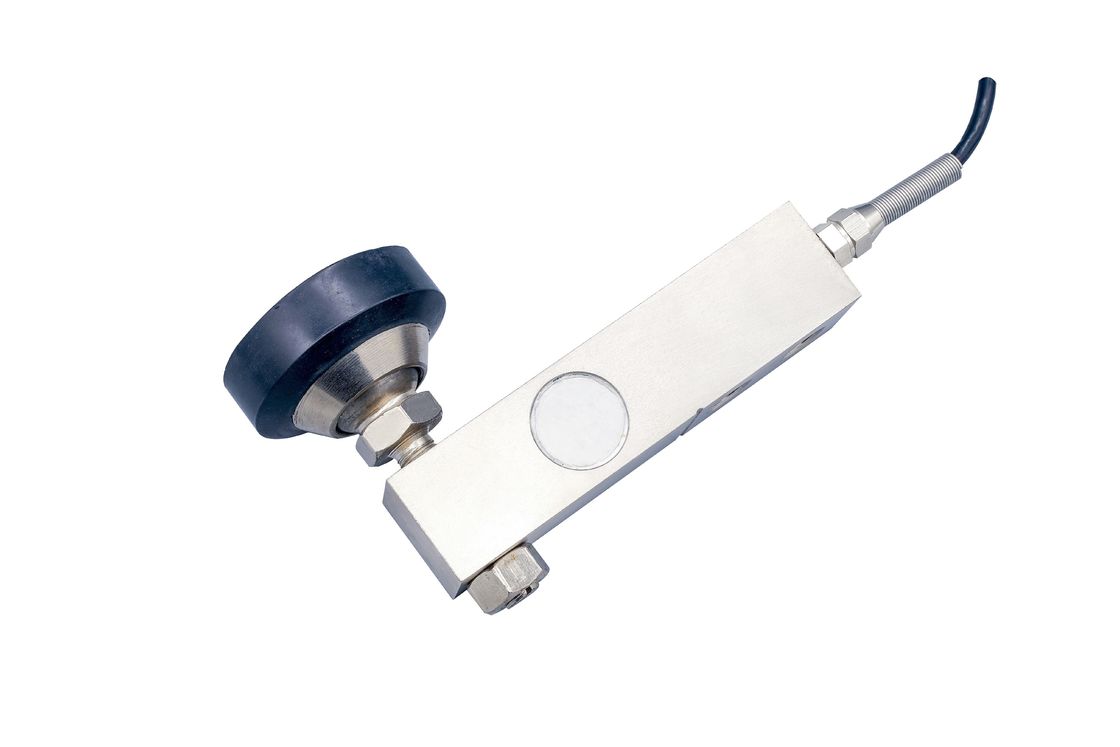

Strain Gauge Load Cell is a platform scale with high accuracy and ultimate overload. It is widely used in elevator, hoist and other force measurement applications. It features accuracy of 0.03%, ultimate overload of 200%, capacity of 100kg, cable length of 1m and insulation resistance of ≥5000MΩ.
Our strain gauge load cell is designed to provide highly accurate, repeatable and reliable measurement of tension and compression forces. It is perfect for force measurement applications in platform scale, elevator and hoist. The capacity of 100kg and ultimate overload of 200% makes it an ideal choice for various force measurement requirements.
The load cell is designed with premium materials that guarantee long service life and superior performance. It has an accuracy of 0.03%, cable length of 1m and insulation resistance of ≥5000MΩ. With its advanced features and high accuracy, it is perfect for force measurement applications.
Our strain gauge load cell is the ideal choice for those who need reliable and accurate force measurement. It is designed to provide the highest accuracy and ultimate overload, making it perfect for platform scale, elevator and hoist applications.
Ruijia RJ9810 strain gauge load cell is ideal for a variety of force measurement applications, such as platform scales, elevator control, and other force measurement. It features a compensated temperature range of -10℃ to 50℃, and an excitation voltage of 5V. The load cell is equipped with a 1m cable, an input resistance of 385Ω, and an ultimate overload of 200%. It is a reliable and accurate solution for force measurement and weighing applications.
Strain Gauge Load Cell is a customized product for elevator, platform scale and weighing sensor applications. This Ruijia RJ9810 model is the perfect solution for your project needs. It features:
These features make Ruijia RJ9810 Strain Gauge Load Cell an ideal choice for elevator, platform scale and weighing sensor applications. Contact us today to discuss your requirements and get a customized solution.
| Capacity | t | 0.1/0.2/0.25/0.5/1/2/5 |
| Sensitivity | mV/V | 2.0±0.005 3.0±0.005 |
| Accuracy | %FS | ≤±0.02 0.02 |
| Creep(15min) | %FS | ≤±0.02 |
| Input Resistance | Ω | 375±10 |
| Output Resistance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ≤±1 |
| Temperature Effects on Span | %FS/10℃ | ≤0.02 |
| Temperature Effect on Zero | %FS/10℃ | ≤0.02 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -35～+80 |
| Proposed Excitation Voltage | V | 6～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 150 |
| Ultimate Overload | %FS | 300 |
| Protection | IP65 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 3 |
| Material | Alloy Steel |
Our professional technical support team provides comprehensive technical support and services for our Strain Gauge Load Cell products. Our technical support team is available 24/7 to help you with any questions or concerns. We offer a variety of services, including installation assistance, troubleshooting tips, and maintenance recommendations.
We also provide product updates and firmware upgrades to help you keep your Strain Gauge Load Cell running at its best. Our technical team is highly trained and experienced in the installation, maintenance, and repair of Strain Gauge Load Cells.
We are dedicated to providing the highest quality products and services to our customers. If you have any questions or concerns about our Strain Gauge Load Cell products, please contact our technical support team for assistance.
Strain Gauge Load Cell Packaging and Shipping:
The Strain Gauge Load Cell is packaged in an anti-static bag and enclosed in a box with foam padding. The box is sealed with a tamper-evident sticker and labeled to indicate the contents. The box is shipped out in a protective cardboard box with appropriate cushioning materials. As a safety precaution, all packages are inspected for damage before being shipped out.
