Strain Gauge Load Cell
>

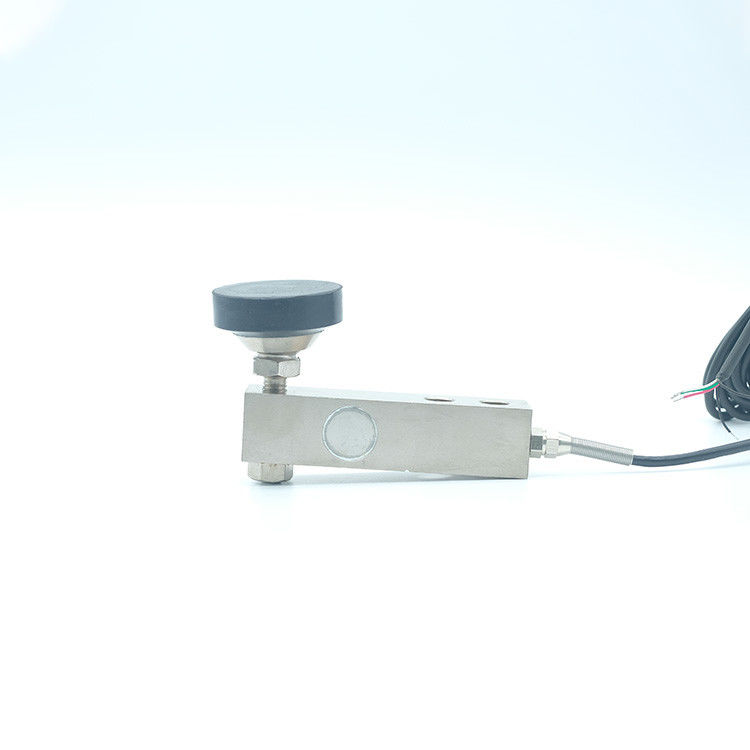

Alloy Steel Strain Gauge Load Cell Ultimate Overload 200% For Precision Measurement

Alloy Steel Strain Gauge Load Cell Ultimate Overload 200% For Precision Measurement

Product Details:
Place of Origin: China
Brand Name: Ruijia
Model Number: RJ-9810
Detail Information
Place of Origin:
China
Brand Name:
Ruijia
Model Number:
RJ-9810
Operating Temperature:
0℃-60℃
Output Resistance:
350Ω
Safe Overload:
150%
Ultimate Overload:
200%
Material:
Alloy Steel
Excitation Voltage:
5V
Input Resistance:
385Ω
Compensated Temperature:
-10℃-50℃
High Light:

High Light

High Light:

Alloy Steel Load Cell Weighing Scale

,

5V Strain Gauge Type Load Cell

,

Strain Gauge Type Platform Scales

Trading Information
Price:
USD 15/piece
Product Description

Product Description:

Strain Gauge Load Cell is a highly precise weighing sensor, which is widely used in various types of platform scales and precision measurement applications. This load cell features Zero Balance of ±1%, Capacity of 100kg, Excitation Voltage of 5V, Compensated Temperature of -10℃-50℃, and Insulation Resistance of ≥5000MΩ. It is an ideal choice for precise measurement of weight and force in a wide range of industrial applications.



Applications:

Ruijia RJ9810 Strain Gauge Load Cell

A strain gauge load cell is a device used to measure the weight of an object. The Ruijia RJ9810 is a highly accurate strain gauge load cell that is perfect for a range of applications such as platform scales, elevators, bridges, and weight monitoring.
The Ruijia RJ9810 strain gauge load cell features 385Ω input resistance, ±1% zero balance, 200% ultimate overload, 0.03% accuracy, and an operating temperature of 0℃-60℃. This load cell is ideal for accurate weight measuring and feedback.



Customization:

Ruijia RJ9810 Strain Gauge Load Cell Customized Service

Ruijia RJ9810 Strain Gauge Load Cell is a perfect choice for elevator, platform scale and other load cell applications. This product has an input resistance of 385Ω and an accuracy of 0.03%. It is made of aluminum alloy and has an ultimate overload of 200% and a safe overload of 150%.

Dimension:

Alloy Steel Strain Gauge Load Cell Ultimate Overload 200% For Precision Measurement 0

Parameters:

Capacityt0.1/0.2/0.25/0.5/1/2/5
SensitivitymV/V2.0±0.005 3.0±0.005
Accuracy%FS

≤±0.02

0.02

Creep(15min)%FS≤±0.02
Input ResistanceΩ375±10
Output ResistanceΩ350±5
Insulation ResistanceM Ω≥5000(100VDC)
Zero Balance%FS≤±1
Temperature Effects on Span%FS/10℃≤0.02
Temperature Effect on Zero%FS/10℃≤0.02
Rated Temperature Range-10~+60
Operating Temperature Range-35~+80
Proposed Excitation VoltageV6~12
Allowed Excitation VoltageV18
Safe Overload%FS150
Ultimate Overload%FS300
Protection IP65
Cable specificationmmФ5
Cable lengthm3
Material Alloy Steel






































Support and Services:

Strain Gauge Load Cell Technical Support and Service

We offer technical support and service for Strain Gauge Load Cells to ensure the best performance and reliability of your product. Our experienced engineers and technicians are available to answer your questions and provide expert advice about the installation, maintenance, and operation of your load cell.
Our technical support services include:

  • Assistance with installation and calibration of the load cell
  • Advice on proper use and maintenance of the load cell
  • Troubleshooting of any issues or problems with the load cell
  • Replacement parts and components

We are committed to delivering top-notch service and support to our customers. If you have any questions or concerns about your Strain Gauge Load Cell, please do not hesitate to contact us.



Packing and Shipping:

Strain Gauge Load Cell Packaging and Shipping:
Packaging: The strain gauge load cell is carefully packaged in a box or plastic container, depending on the size and weight of the product. The box will be labeled with the product's name and details.
Shipping: The strain gauge load cell will be shipped in a secure package with adequate padding to protect the product from damage during transit. All orders will be shipped via a reliable shipping service with tracking information provided.



FAQ:

Q1: What is the Brand Name of the Strain Gauge Load Cell?

A1: The Brand Name of the Strain Gauge Load Cell is Ruijia.

Q2: What is the Model Number of the Strain Gauge Load Cell?

A2: The Model Number of the Strain Gauge Load Cell is RJ9810.

Q3: Where is the Strain Gauge Load Cell manufactured?

A3: The Strain Gauge Load Cell is manufactured in China.

Q4: What type of signal does the Strain Gauge Load Cell output?

A4: The Strain Gauge Load Cell typically outputs an electrical signal.

Q5: How accurate is the Strain Gauge Load Cell?

A5: The accuracy of the Strain Gauge Load Cell depends on a variety of factors such as the environment and application.
