Strain Gauge Load Cell
>

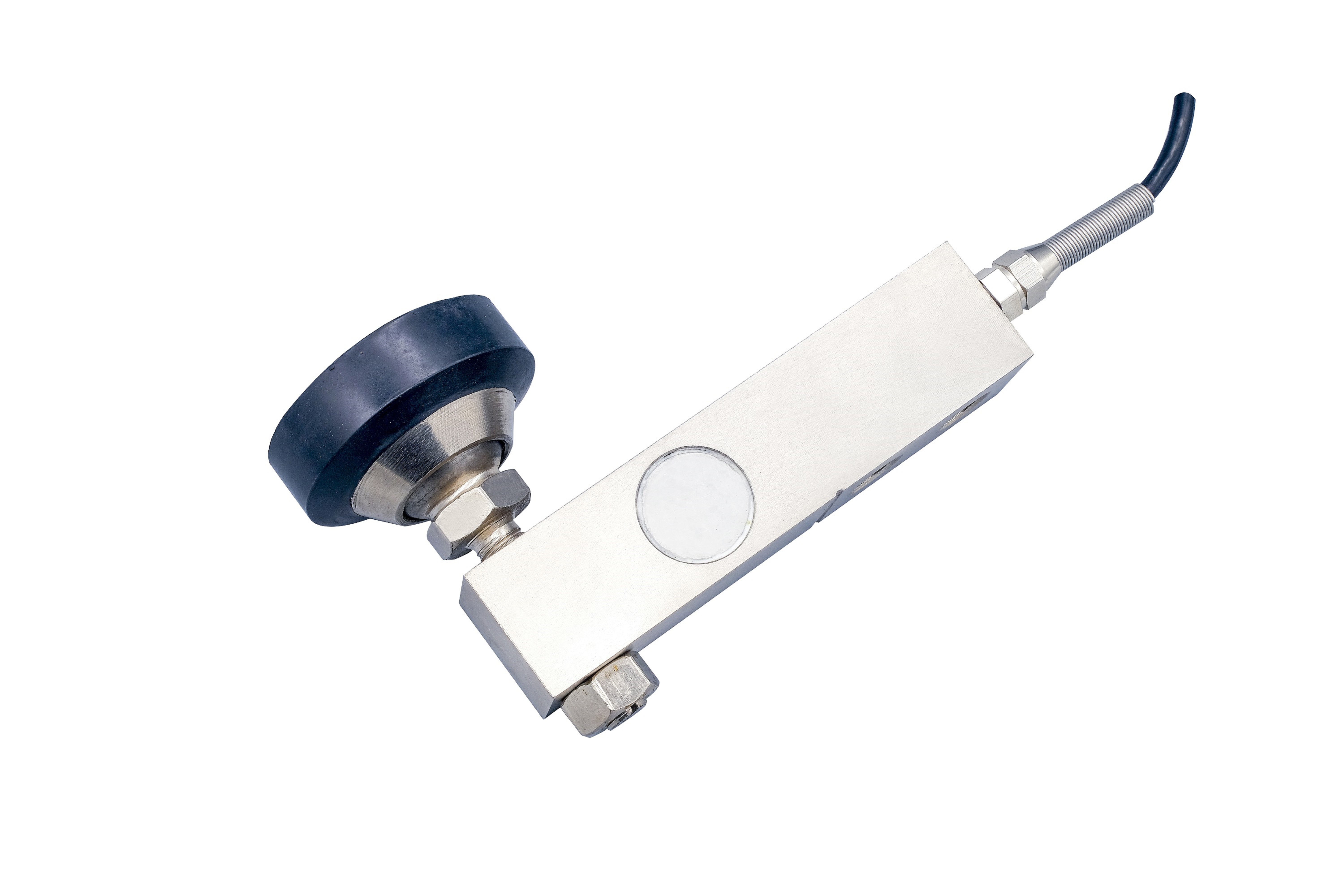

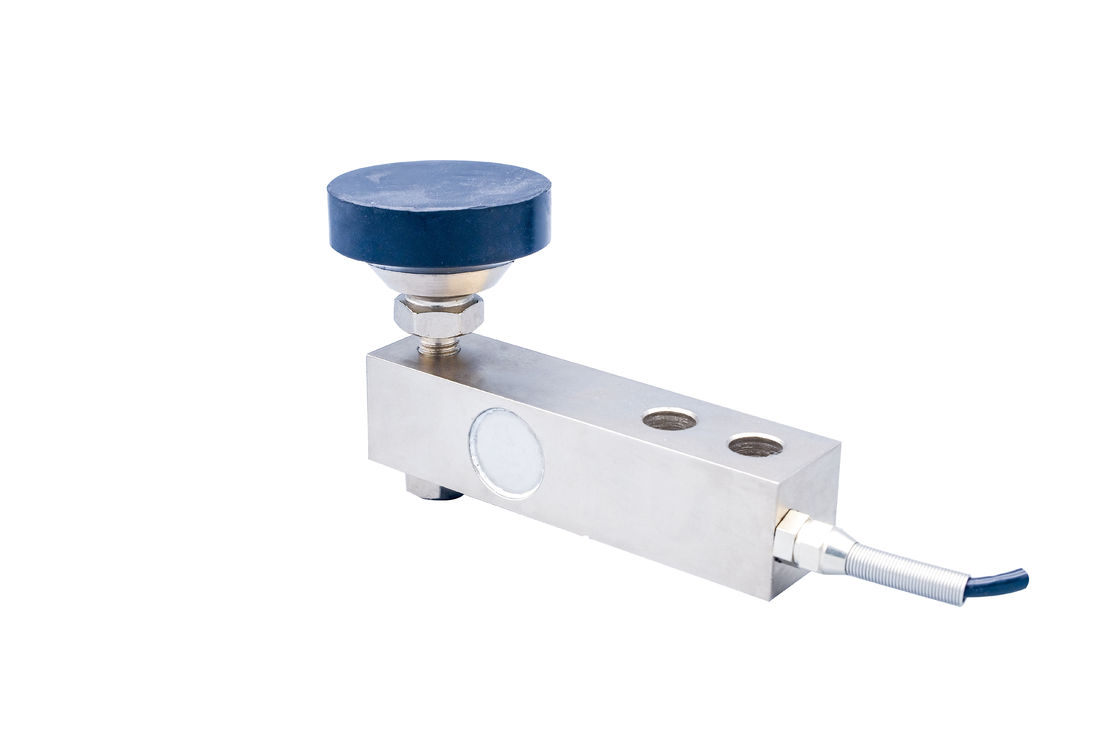

Aluminum Alloy Material Strain Gauge Load Cell 2mV/V Output Signal

Aluminum Alloy Material Strain Gauge Load Cell 2mV/V Output Signal

Product Details:
Place of Origin: China
Brand Name: Ruijia
Model Number: RJ9810
Detail Information
Place of Origin:
China
Brand Name:
Ruijia
Model Number:
RJ9810
Safe Overload:
150%
Ultimate Overload:
300%
Insulation Resistance:
≥5000MΩ
Excitation Voltage:
18 V
Zero Balance:
±1%
Operating Temperature:
-35-80 ℃
Input Resistance:
375±10 Ω
Output Resistance:
350±5 Ω
High Light:

High Light

High Light:

Strain Gauge Load Cell 2mV/V

,

Aluminum Alloy 100kg Load Cell

,

18V Strain Gauge Load Cell

Trading Information
Price:
USD 15/piece
Payment Terms:
T/T, L/C
Product Description

Product Description:

The strain gauge load cell is a weighing sensor device that uses strain gauges to measure the force applied to the load cell. It is a reliable and high-precision device with an ultimate overload of 200%, a capacity of 100kg, an operating temperature of 0℃-60℃, and an excitation voltage of 5V. It is characterized by an output signal of 2mV/V. This load cell is suitable for a wide range of applications, including force-measuring devices, industrial weighing systems, and process control systems. It is a versatile, high-precision, and low-cost solution for accurate weighing measurement.



Applications:

Ruijia RJ9810 strain gauge load cell is a type of load cell or load cell sensor, which is widely used in various platform scales. It has a wide operating temperature range of 0℃-60℃ and an output resistance of 350Ω. The output signal is 2mV/V and the compensated temperature is -10℃-50℃. Furthermore, the ultimate overload of Ruijia RJ9810 strain gauge load cell is 200%.



Dimension:

Aluminum Alloy Material Strain Gauge Load Cell 2mV/V Output Signal 0

 Parameters:

Capacity t 0.1/0.2/0.25/0.5/1/2/5
Sensitivity mV/V 2.0±0.005 3.0±0.005
Accuracy %FS

≤±0.02

0.02

Creep(15min) %FS ≤±0.02
Input Resistance Ω 375±10
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±1
Temperature Effects on Span %FS/10℃ ≤0.02
Temperature Effect on Zero %FS/10℃ ≤0.02
Rated Temperature Range -10~+60
Operating Temperature Range -35~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 150
Ultimate Overload %FS 300
Protection   IP65
Cable specification mm Ф5
Cable length m 3
Material   Alloy Steel






































Customization:

Ruijia RJ9810 Strain Gauge Load Cell

The Ruijia RJ9810 Strain Gauge Load Cell is perfect for elevator, platform scale, and platform scale applications. It delivers precise accuracy with a zero balance of ±1%, and an accuracy of 0.03%. Its input resistance is 385Ω while its insulation resistance is ≥5000MΩ. This load cell also operates in temperatures ranging from 0℃ to 60℃.
