| Place of Origin: | Shannxi, China |
|---|---|
| Brand Name: | Ruijia |
| Model Number: | RJ-9810 |
| Minimum Order Quantity: | 1pc |
| Price: | USD 15/piece |
| Packaging Details: | Standard export packaging |
| Delivery Time: | Within 2-4 Weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Usage: | Weighting | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 0.1/0.2/0.25/0.5/1/2/5 T |
| Sensitivity: | 2.0±0.005 3.0±0.005 MV/V | Creep（5min): | ≤±0.02 %FS |
| Accuracy: | ≤±0.02 %FS | Input Resistance: | 375±10 Ω |
| Output Resistance: | 350±5 Ω | Rated Temperature Range: | -10～+60 ℃ |
| Operating Temperature Range: | -35～+80 ℃ | Cable Specification: | Ф5 |
| Cable Length: | 3 M | Material: | Alloy Steel |

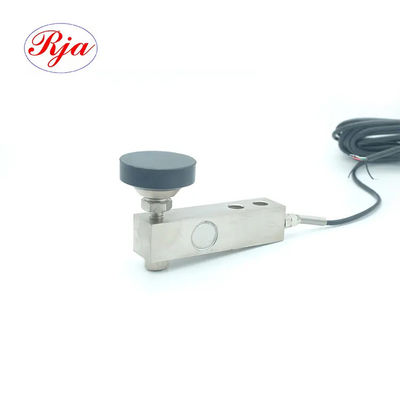

| High Light: | Livestock Strain Gauge Load Cell,2000kg Strain Gauge Load Cell,Alloy Steel Platform Scales Load Cell |
||
| Capaacity | Dimension (mm) | ||||||||||||
| t | L | L1 | L2 | L3 | L4 | W | W1 | H | H1 | D | D1 | M | A1/A2 |
| 0.1-0.3 | 130 | 15.8 | 25.4 | 76.2 | 54.2 | 31.8 | 34 | 31.8 | 15.8 | 13.5 | 13.5 | M12*1.75 | A1 |
| 0.5-2 | 130 | 15.8 | 25.4 | 76.2 | 54.2 | 31.8 | 31.8 | 31.8 | 15.8 | 13.5 | 13.5 | M12*1.75 | A2 |
| 2.5-5 | 171.5 | 19.1 | 38.1 | 95.3 | 77.2 | 38.1 | 38.1 | 38.1 | 18.8 | 19.8 | 19.8 | M18*1.5 | A2 |
| Capacity | t | 0.1/0.2/0.25/0.5/1/2/5 |
| Sensitivity | mV/V | 2.0±0.005 3.0±0.005 |
| Accuracy | %FS |
≤±0.02 |
| Creep(15min) | %FS | ≤±0.02 |
| Input Resistance | Ω | 375±10 |
| Output Resistance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ≤±1 |
| Temperature Effects on Span | %FS/10℃ | ≤0.02 |
| Temperature Effect on Zero | %FS/10℃ | ≤0.02 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -35～+80 |
| Proposed Excitation Voltage | V | 6～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 150 |
| Ultimate Overload | %FS | 300 |
| Protection | IP65 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 3 |
| Material | Alloy Steel |
Xian Ruijia Measurement Instrument Co., Ltd was founded in 2005, mainly engaged in the force sensor and related electronic products design, production and sales. With 100 employees, our company's head officce is located at No. 81, Jinye 1st Roade, Hi-tech District, Xi'an Shaanxi Province. Our branch is located in Hanzhong, Han District.
We have more than 20 years of scientific research and production experience in aluminum and steel high-precision load cells, ranging from 1kg to 50t,and pressure sensors, loader oil pressure sensors, ranging from 1Mpa to 200Mpa. In addition, our independent R&D of oil well drilling, fracturing, cementing pressure sensors also won the State Ministry of Science and Technology Innovation Fund support. The products have reached the technical standards of similar products in Europe and America.
