|Output:||Analog Sensor||Capacity:||7.5/15/30/75/150/300 Kg|
|Sensitivity:||0.05 %FS||Creep（5min):||≤±0.02 %FS|
|Zero Balance:||±2 %FS||Input Resistance:||1090±30 Ω|
|Output Resistance:||1000±10 Ω||Rated Temperature Range:||-10～+40 ℃|
|Operating Temperature Range:||-20～+60 ℃||Cable Specification:||Ф1|
|Cable Length:||0.6 M||Protection:||IP65|

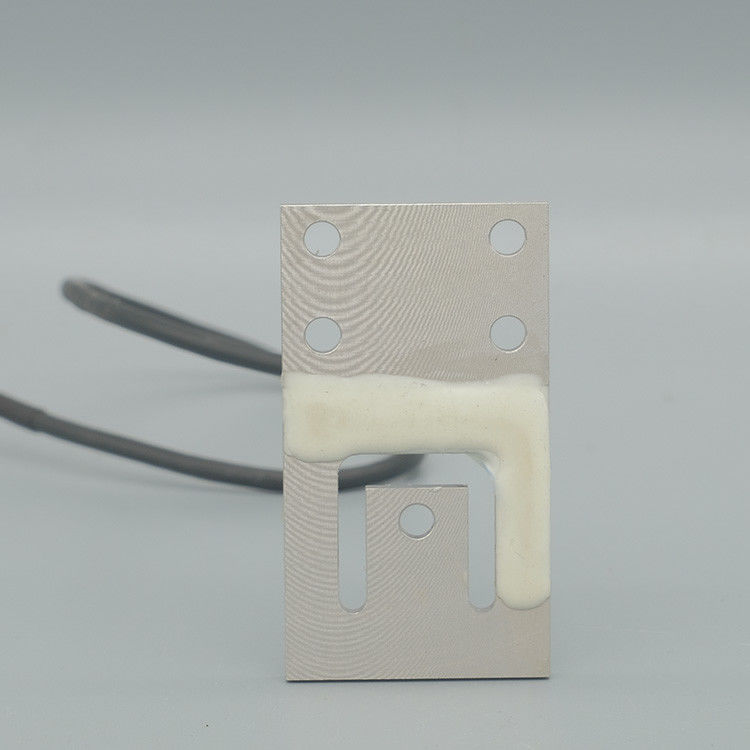

300kg Planar Beam Weighing Scale Load Cell,
Low Profile Weighing Sensors,
IP65 Weighing Scale Load Cell
Planar beam load cell range is designed for applications where a low profile solution is needed. Typically, it is used in sets of three or four per scale in applications such as retail scales, medical scales or any weighing environment where space is a limiting factor.
Anodized aluminum alloy construction
|Insulation Resistance||M Ω||≥5000(100VDC)|
|Temperature Effects on Span||%FS/10℃||0.05|
|Temperature Effect on Zero||%FS/10℃||0.05|
|Rated Temperature Range||℃||-10～+40|
|Operating Temperature Range||℃||-20～+60|
|Proposed Excitation Voltage||V||6～12|
|Allowed Excitation Voltage||V||3～15|
|Cable specification||mm||Φ3.8UL & Φ1electronic wiring|
Widely used for low profile infant and adult medical scales, platform scales, personal scales, airport baggage scales, postal scales , medical equipment, ect.
