Spokes Button Load Cell 10kg 20kg 50kg Micro Strain Gauge Type Force Sensors

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-6623
Minimum Order Quantity: 1pc
Price: USD 30/piece
Packaging Details: Standard export packaging
Delivery Time: Within 2-4 Weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Capacity: 10/20/50 Kg Sensitivity: 1.5±0.2 MV/V
Accuracy: ≤±0.1 %FS Creep(15min): ≤±0.02 %FS
Input Resistance: 370±30 Ω Output Resistance: 350±10 Ω
Temperature Effects On Span: ≤0.02 %FS Operating Temperature Range: -20~+80 ℃
Protection: IP65 Material: Aluminum Alloy
High Light:

Micro Strain Gauge Type Force Sensors

,

Spokes Sensor Button Load Cell

,

10kg Button Load Cell


Product Description

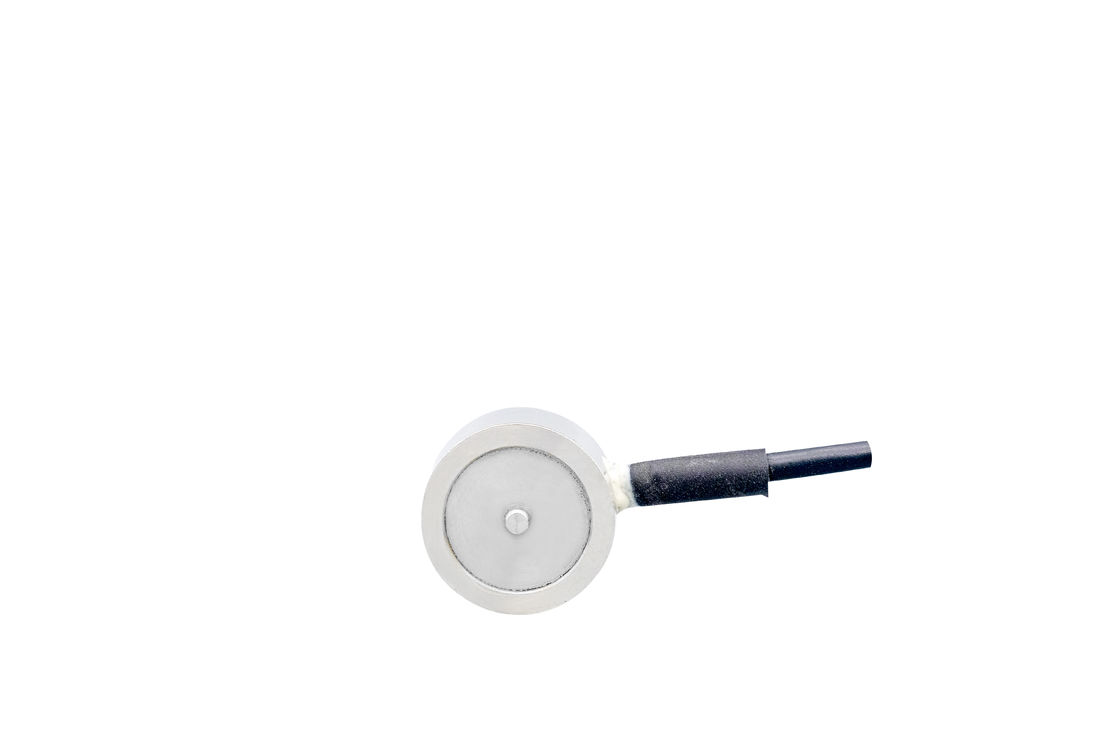

10kg 20kg 50kg Micro Strain Gauge Type Force Sensors Button Load Cell Spokes Sensor



Theory:



Spoke type load cells, also called pancake load cells have a mounting rig and female center-thread, which makes them suitable for compression and tension applications. It is used for electronic, tensile testing, impact testing, tank and silo level monitoring, and other industrial weighing system.

They are often used for elastomer measurement. After the resistance sheet is deformed, its resistance will also change (or value), and then the resistance change will be converted into a signal according to the corresponding measurement circuit, and the external force will be converted into a signal change, thus completing the process of converting the external force into a signal change electrical signal.



Dimension:

 Spokes Button Load Cell 10kg 20kg 50kg Micro Strain Gauge Type Force Sensors 0Spokes Button Load Cell 10kg 20kg 50kg Micro Strain Gauge Type Force Sensors 1




Specification:



Capacity Kg 10/20/50
Sensitivity mV/V 1.5±0.2
Accuracy %FS

≤±0.1

Creep(15min) %FS ≤±0.02
Input Resistance Ω 370±30
Output Resistance Ω 350±10
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±1
Temperature Effects on Span %FS/10℃ ≤0.05
Temperature Effect on Zero %FS/10℃ ≤0.05
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф3
Cable length m 1
Material   Aluminum Alloy
