| Place of Origin: | china |
|---|---|
| Brand Name: | ruijia |
| Model Number: | RJ-9320 |
| Minimum Order Quantity: | 1pc |
| Price: | USD 30/piece |
| Packaging Details: | Standard export packaging |
| Delivery Time: | Within 2-4 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Capacity: | 0.1/0.2/0.5/0.75/1/1.5/2/5 T | Sensitivity: | 2.0±0.004 MV/V |
|---|---|---|---|
| Creep（15min): | ±0.02 %FS | Zero Balance: | ≤±1 %FS |
| Temperature Effects On Span: | ≤0.02 %FS | Temperature Effect On Zero: | ≤0.017 %FS |
| Operating Temperature Range: | -20～+80 ℃ | Ultimate Overload: | 150 %FS |
| Protection: | IP65 | Material: | Aluminum Alloy |
| High Light: | 5Ton Scale Load Cell Weighing Sensors,Force Sensor Hanging Scale Load Cell,Aluminum Alloy Hanging Scale Load Cell |
||

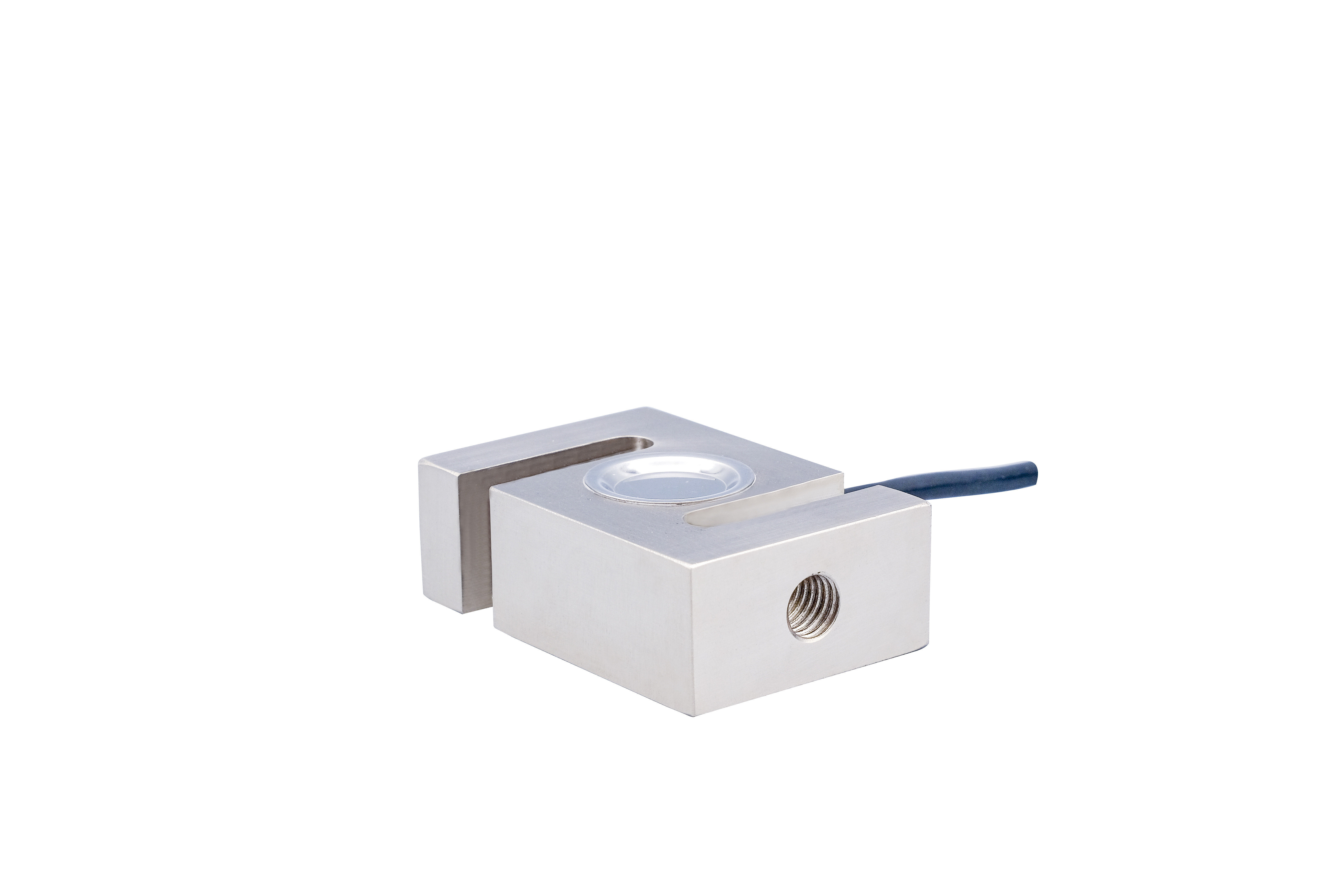

High Precision Tension and Compression S Type Force Sensor Hanging Scale Load Cell Weighing Sensors
Theory:
S-beam load cells, also known as S-type load cells, are force sensors that measure tension and compression. It is based on such a principle: the elastic body (elastic element, sensitive beam) is elastically deformed under the action of external force, so that the resistance strain gauge (conversion element) pasted on its surface is also deformed. After the resistance strain gauge is deformed, its resistance The value will change (increase or decrease), and then the resistance change will be converted into an electrical signal (voltage or current) through the corresponding measurement circuit, thus completing the process of converting the external force into an electrical signal.
Dimension:
Specification:
| Capacity | t | 0.1/0.2/0.5/0.75/1/1.5/2/5 |
| Sensitivity | mV/V | 2.0±0.004 |
| Accuracy | %FS |
≤±0.02 |
| Creep(15min) | %FS | ≤±0.02 |
| Input Resistance | Ω | 375±30 |
| Output Resistance | Ω | 350±10 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ≤±1 |
| Temperature Effects on Span | %FS/10℃ | ≤0.02 |
| Temperature Effect on Zero | %FS/10℃ | ≤0.017 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 6～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | IP67 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 3 |
| Material | Alloy Steel Material |
About the Company
Application
Process flowchart
Packing & Shipping
FAQ
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2.Do you accept customized?
Yes, we have different customers make their own OEM products. So we can make products as per your requirement.
3. When will you arrange the production?
We will arrange the production immediately after receiving your payment.
4. Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.
5. Do you have any discount?
To clients who bring repeat orders and large orders. Please contact us for better quote.
E-mail: frank0505@126.com yangzaiquan@xarj.cn Whats: +86 18992920670
Looking forward to cooperating with you!
