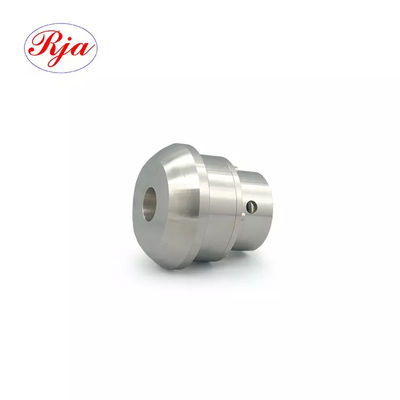

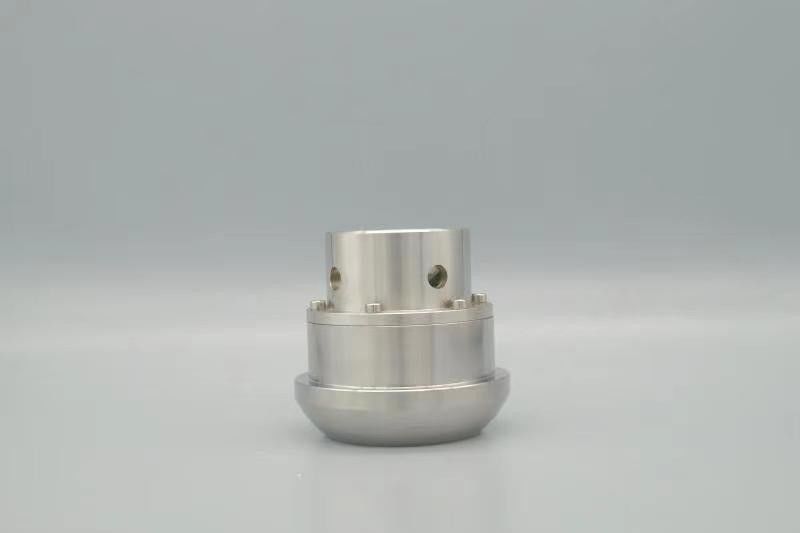

15000psi Hammer Union Pressure Sensor High Accuracy Transmitter For Oil Fields

15000psi Hammer Union Pressure Sensor High Accuracy Transmitter For Oil Fields

Product Details:
Place of Origin: china
Brand Name: ruijia
Model Number: PTM-5M
Detail Information
Place of Origin:
china
Brand Name:
ruijia
Model Number:
PTM-5M
Capacity:
5000/10000/15000/20000 Psi
Output:
4~20 MA
Supply Voltage:
9~30 V
Combined Error:
0.5 %FS
Ultimate Overload:
300 %FS
Protection:
IP67
Electrical Connection:
E+:A E-:B
Installation Mode:
1502(Union)
High Light:

High Light

High Light:

Hammer Union Pressure Sensor

,

15000psi Hammer Union Pressure Sensor

,

Hammer Union Pressure Sensor High Accuracy

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 500/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
10000 Piece/Pieces per Month
Product Description

15000psi High accuracy Hammer Union Pressure Sensor & Transmitter for Oil Fields





Theory:



Oil pressure sensor is a device that converts pressure signal into electrical signal through piezoresistive effect. Oil pressure sensor is one of the most commonly used sensors in the industry. It is widely used in various industrial automatic control environments, involving water conservancy and hydropower, construction machinery, aerospace, transportation, petrochemical, machine tools, pipelines and many other industries. As an important part of hydraulic equipment, pressure sensor is used for pressure measurement and control. It can accurately measure the pressure to be measured and transmit the test results to subsequent display or control in a timely manner.





Features:



Anti-overload, anti-shock, high precision and good stability, high quality, low price, can adapt to the characteristics of various industrial applications, is the crystallization of precision machining, temperature compensation and analog signal processing technology, the main circuit process material Advanced, sealed and cured completely isolated from the outside, can meet the requirements of moisture-proof, waterproof, explosion-proof, anti-corrosion, dust-proof and other harsh working conditions.





Dimension:



 15000psi Hammer Union Pressure Sensor High Accuracy Transmitter For Oil Fields 0



Specification:



Range Mpa 40/60/100/120/140
psi 5000/10000/15000/20000
Output mA 4~20
Supply voltage V 9~30
Combined error %FS 0.5
Linearity %FS 0.2
Hysteresis %FS 0.2
Repeatability %FS 0.1
Insulation Resistance M Ω ≥5000(50VDC)
Operating Temperature Range -40~+125
Annual stability %FS 0.5
Safe Overload %FS 150
Ultimate Overload %FS 300
Protection   IP67
Electrical connection   E+:A E-:B
Installation mode   1502(Union)
