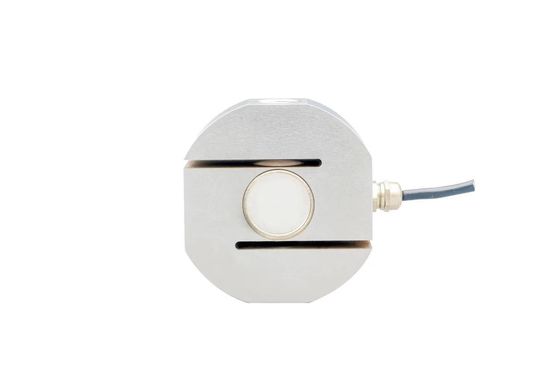

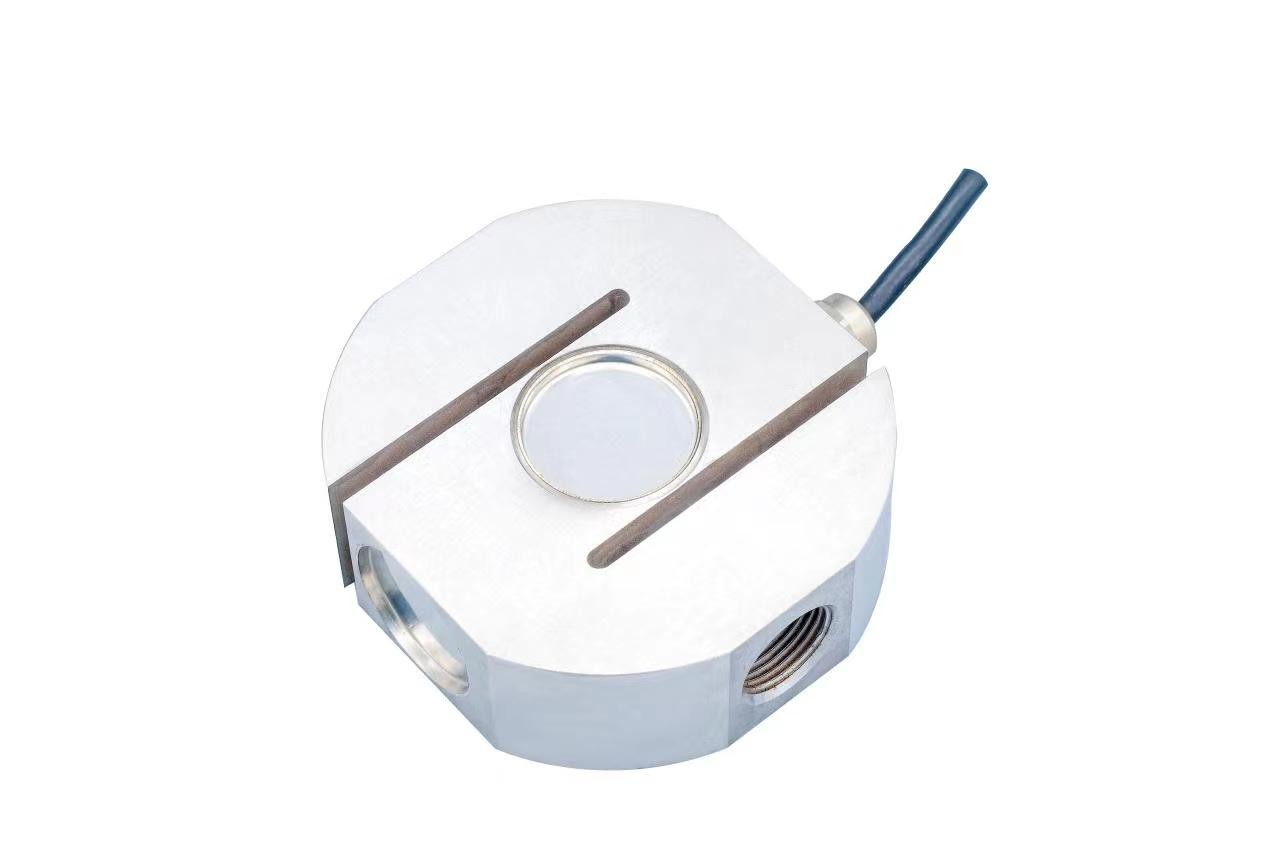

1T 2T 3T Alloy Steel Tension Load Cell S Type Electronic Weighing System Sensors

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-9310
Minimum Order Quantity: 1pc
Price: USD 30/piece
Packaging Details: Standard export packaging
Delivery Time: Within 2-4 Weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Capacity: 1/2/3 T Accuracy: ≤±0.02 %FS
Creep(5min): ≤±0.02 %FS Input Resistance: 375±30 Ω
Output Resistance: 350±10 Ω Rated Temperature Range: -10~+60 ℃
Operating Temperature Range: -20~+80 ℃ Cable Specification: Ф5
Cable Length: 3 M Protection: IP65

Product Description

1T 2T 3T Alloy Steel Tension Load Cell S Type Electronic Weighing System Sensors





Theory:



The S-type pressure sensor is a kind of snesor commonly used in sensors. It is mainly used to measure the pressure and tensile pressure between solids. It is often refered to as an S shape pull pressure sensor. The sensor is made of alloy steel, sealed by silicon rubber, easy to install and use. It is suitable for electronic weighing system such as batching scale, crane scale and mechanical scale.



The working principle of S-type sensor: under the action of external force, the elastic body will undergo elastic deformatio, so that the resistance strain aguge pasted on its surface will also deform along with the deformation. The strain gauge will have a large or smaller resistance and then convert this resistance into an electronic sigal(voltage or current) through the corresponding measuring circuit, thus completing the process of converting the external force into electronic signal.







Dimension:



1T 2T 3T Alloy Steel Tension Load Cell S Type Electronic Weighing System Sensors 0





Specification:



Capacity t 1/2/3
Sensitivity mV/V 2.0±0.004
Accuracy %FS

≤±0.02

Creep(15min) %FS ≤±0.02
Input Resistance Ω 375±30
Output Resistance Ω 350±10
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±1
Temperature Effects on Span %FS/10℃ ≤0.02
Temperature Effect on Zero %FS/10℃ ≤0.017
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP67
Cable specification mm Ф5
Cable length m 3
Material   Stainless steell Material
