| Place of Origin: | china |
|---|---|
| Brand Name: | ruijia |
| Model Number: | RJ-6536 |
| Minimum Order Quantity: | 1pc |
| Price: | USD 50/piece |
| Packaging Details: | Standard export packaging |
| Delivery Time: | Within 2-4 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Capacity: | 10/20/30/40 Kg | Sensitivity: | 2.0±0.2 MV/V |
|---|---|---|---|
| Creep（5min): | ±0.02 %FS | Input Resistance: | 406±20 Ω |
| Output Resistance: | 350±5 Ω | Insulation Resistance: | ≥5000 M Ω（100VDC） |
| Zero Balance: | ≤±1 %FS | Temperature Effects On Span: | ±0.02 %FS/10℃ |
| Temperature Effect On Zero: | ±0.02 %FS/10℃ | Cable Specification: | Ф5 Mm |
| Cable Length: | 2 M | Protection: | IP65 |
| High Light: | 40kg Resistive Strain Gauge Load Cell,Strain Gauge Load Cell Corrosion Resistant,Resistive Electronic Platform Scale |
||

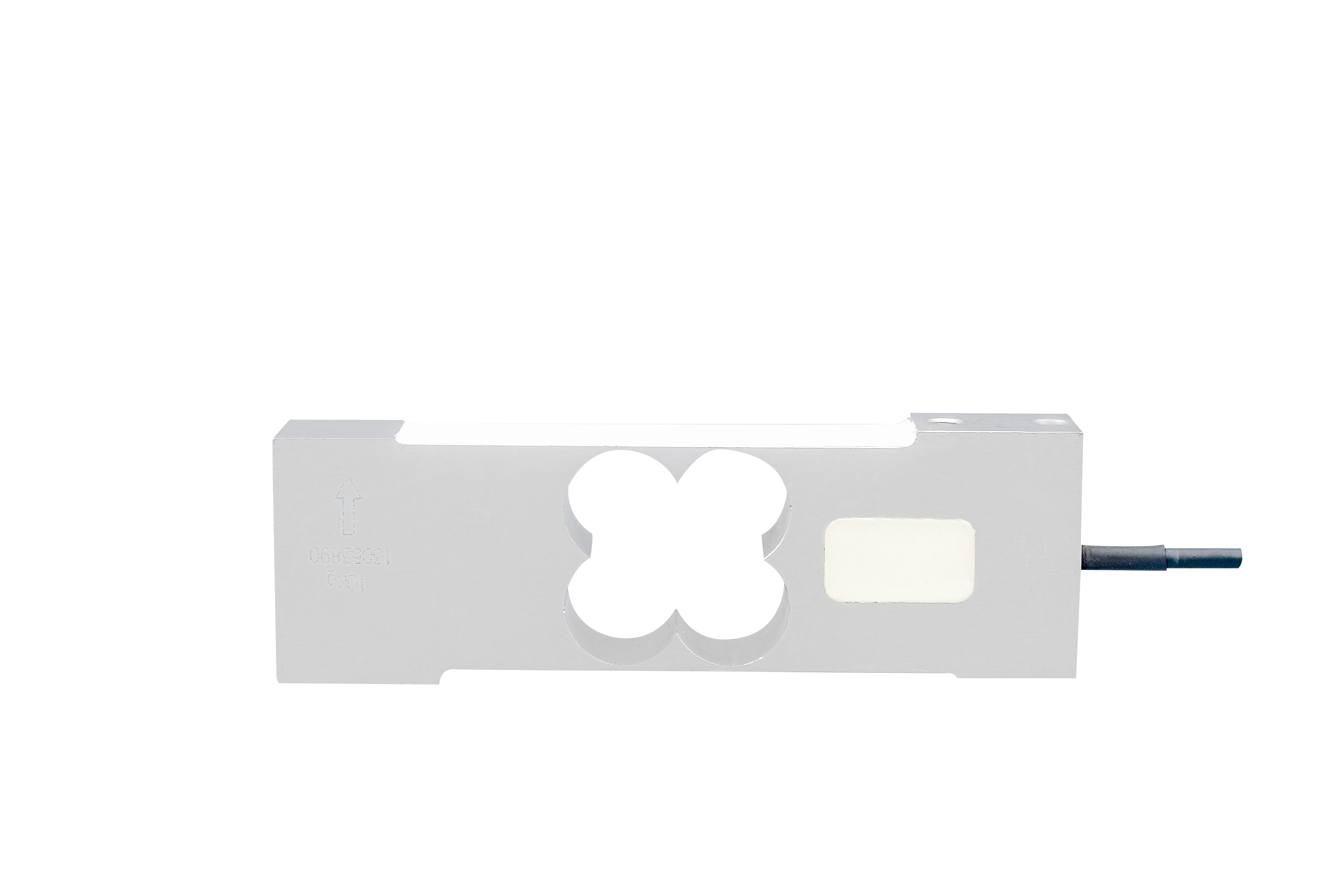

Resistive Strain Gauge 10~40kg Load Cell Corrosion Electronic Platform Scale
Force Sensor:
Force Sensors, are devices that are designed to translate applied mechanical forces, such as tensile and compressive forces, into output signals whose value can be used to reflect the magnitude of the force. The signals may be sent to indicators, controllers, or computers to inform operators or serve as inputs to provide control over machinery and processes. Although strictly speaking force sensors and force transducers differ from each other, the two terms are most commonly used interchangeably.
Dimension:
Specification:
| Capacity | Kg | 10/20/30/40 |
| Sensitivity | mV/V | 2.0±0.2 |
| Accuracy |
±0.02 |
|
| Creep(15min) | %FS | ±0.02 |
| Input Resistance | Ω | 406±20 |
| Output Resistance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ±1 |
| Temperature Effects on Span | %FS/10℃ | ±0.02 |
| Temperature Effect on Zero | %FS/10℃ | ±0.02 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 5～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | IP65 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 2 |
| Material | Aluminum Alloy |
Company information
Xian Ruijia measurement instrument co., LTD was founded in 2005, mainly engaged in the force sensitive sensor and related electronic products design, production, sales and technical service/company registered capital of 1 million yuan, existing staff 100 people,the company headquarters is located in No.81 Jinye 1st Road ,high-Tech Zone,Xi’an,Shaanxi. Branch office located in hanzhong, han area. The company has been engaged in the industry for more than 20 years of scientific research and production experience, under the leadership of the company, mainly undertake aluminum, steel high-precision weighing sensors,ranging from 1kg to 50t. Pressure sensor, loader oil pressure sensor, range from 1Mpa to 200Mpa. Independently developed electronic balance series weighing sensor, which have been widely praised by many customers at home and abroad, won the honorary title of Xi 'an high-tech enterprise.
Application
Process flowchart
Packing & Shipping
FAQ
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2.Do you accept customized?
Yes, we have different customers make their own OEM products. So we can make products as per your requirement.
3. When will you arrange the production?
We will arrange the production immediately after receiving your payment.
4. Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.
5. Do you have any discount?
To clients who bring repeat orders and large orders. Please contact us for better quote.
E-mail: frank0505@126.com yangzaiquan@xarj.cn Whats: +18992920670
Looking forward to cooperating with you!
