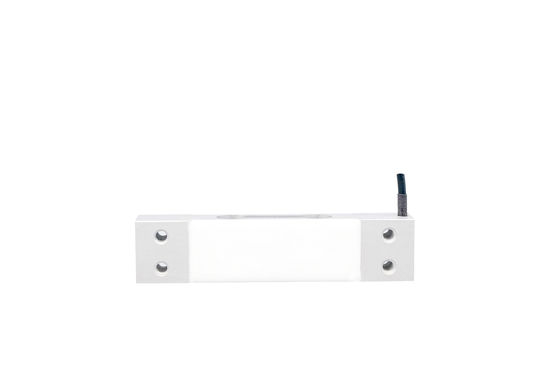

3kg - 150kg Aluminum Alloy Parallel Beam Load Cell Platform Weighing Sensor

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-6530
Minimum Order Quantity: 1pc
Price: USD 50/piece
Packaging Details: Standard export packaging
Delivery Time: Within 2-4 Weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Capacity: 3/5/8/10/15/20/30/45/50/100/150 Kg Sensitivity: 2.0±0.2 MV/V
Creep(5min): ≤±0.02 %FS Input Resistance: 406±20 Ω
Output Resistance: 350±5 Ω Insulation Resistance: ≥5000 M Ω(100VDC)
Zero Balance: ≤±1 %FS Rated Temperature Range: -10~+60 ℃
Operating Temperature Range: -20~+80 ℃ Safe Overload: 120 %FS
Ultimate Overload: 150%FS Protection: IP65
High Light:

150kg Parallel Beam Load Cell

,

100VDC Parallel Beam Load Cell

,

Aluminum Alloy Scale Weight Sensor


Product Description

Parallel Beam 3kg~150kg Load Cell Weighing Sensor Load Cell for Platform Scales





Load Cell:



A load cell is a force transducer. It converts a force such as tension, compression, pressure, or torque into an electrical signal that can be measured and standardized. As the force applied to the load cell increases, the electrical signal changes proportionally. The most common types of load cell used are strain gauges, pneumatic, and hydraulic. It is widely used in several types of measuring instruments such as laboratory balances, industrial scales, platform scales and univeral testing machines.





Dimension:



3kg - 150kg Aluminum Alloy Parallel Beam Load Cell Platform Weighing Sensor 0





Specification:





Capacity Kg 3/5/8/10/15/20/30/45/50/100/150
Sensitivity mV/V 2.0±0.2
Accuracy

≤±0.02

Creep(15min) %FS ≤±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±1
Temperature Effects on Span %FS/10℃ ≤0.02
Temperature Effect on Zero %FS/10℃ ≤0.02
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф4
Cable length m 0.4
Material   Aluminum Alloy






















































Company information
3kg - 150kg Aluminum Alloy Parallel Beam Load Cell Platform Weighing Sensor 1

Xian Ruijia measurement instrument co., LTD was founded in 2005, mainly engaged in the force sensitive sensor and related electronic products design, production, sales and technical service/company registered capital of 1 million yuan, existing staff 100 people,the company headquarters is located in No.81 Jinye 1st Road ,high-Tech Zone,Xi’an,Shaanxi. Branch office located in hanzhong, han area. The company has been engaged in the industry for more than 20 years of scientific research and production experience, under the leadership of the company, mainly undertake aluminum, steel high-precision weighing sensors,ranging from 1kg to 50t. Pressure sensor, loader oil pressure sensor, range from 1Mpa to 200Mpa. Independently developed electronic balance series weighing sensor, which have been widely praised by many customers at home and abroad, won the honorary title of Xi 'an high-tech enterprise.




Application

3kg - 150kg Aluminum Alloy Parallel Beam Load Cell Platform Weighing Sensor 2

Process flowchart

3kg - 150kg Aluminum Alloy Parallel Beam Load Cell Platform Weighing Sensor 3

Packing & Shipping
3kg - 150kg Aluminum Alloy Parallel Beam Load Cell Platform Weighing Sensor 4

FAQ



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.



2.Do you accept customized?

Yes, we have different customers make their own OEM products. So we can make products as per your requirement.



3. When will you arrange the production?

We will arrange the production immediately after receiving your payment.



4. Can I get some samples before place order and how long for a sample?

Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.


5. Do you have any discount?

To clients who bring repeat orders and large orders. Please contact us for better quote.
