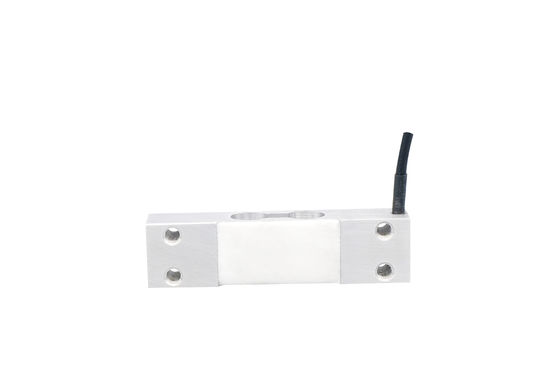

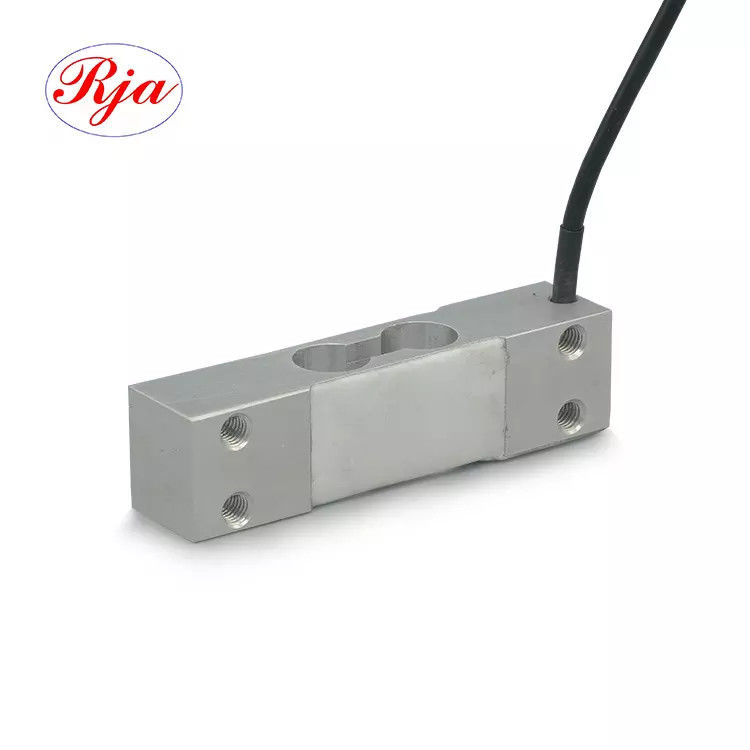

Aluminum High Precision Load Cell Electronic Balance Weighing Sensor 5kg 10kg 20kg 40kg

Aluminum High Precision Load Cell Electronic Balance Weighing Sensor 5kg 10kg 20kg 40kg

Product Details:
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-6532
Detail Information
Place of Origin:
china
Brand Name:
ruijia
Model Number:
RJ-6532
Capacity:
5/10/20/40 Kg
Sensitivity:
1.1±0.2 MV/V
Creep(5min):
≤±0.01 %FS
Input Resistance:
406±20 Ω
Output Resistance:
350±5 Ω
Insulation Resistance:
≥5000 M Ω(100VDC)
Zero Balance:
≤±2 %FS
Proposed Excitation Voltage:
6~12 V
Allowed Excitation Voltage:
18 V
Safe Overload:
120 %FS
Ultimate Overload:
150%FS
Protection:
IP65
High Light:

High Light

High Light:

Aluminum High Precision Load Cell 5kg

,

Electronic Balance Weighing Sensor

,

10kg Electronic High Precision Load Cell

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 50/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
10000 Piece/Pieces per Month
Product Description

Aluminum High Precision Load Cell 5kg 10kg 20kg 40kg for Electronic Balance Weighing Cell





Load Cells:



A load cell is a force transducer. It converts a force such as tension, compression, pressure, or torque into an electrical signal that can be measured and standardized. As the force applied to the load cell increases, the electrical signal changes proportionally. The most common types of load cell used are strain gauges, pneumatic, and hydraulic.





Common types of load cells:



  • Single Point load cells; used in small to medium platform scales with platform sizes of 200x200mm up to 1200x1200 mm.
  • Shear Beam load cells; used in low profile scale and process applications, available in capacities from 100kg up to 50t.
  • Dual Shear Beam load cells; used in truck scales, tank and hopper applications.
  • S-type load cells; used in tension applications where you will find static and dynamic loads.
  • Spoke Type load cells; used in low profile, high precision application. High forces varying from 1t-500t.





Dimension:



Aluminum High Precision Load Cell Electronic Balance Weighing Sensor 5kg 10kg 20kg 40kg 0





Specification:



Capacity Kg 5/10/20/40
Sensitivity mV/V 1.1±0.2
Accuracy %FS

≤±0.02

Creep(15min) %FS ≤±0.01
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ≤±2
Temperature Effects on Span %FS/10℃ ≤0.02
Temperature Effect on Zero %FS/10℃ ≤0.02
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф3
Cable length m 0.4
Material   Aluminum Alloy






















































Company information
Aluminum High Precision Load Cell Electronic Balance Weighing Sensor 5kg 10kg 20kg 40kg 1

Xian Ruijia measurement instrument co., LTD was founded in 2005, mainly engaged in the force sensitive sensor and related electronic products design, production, sales and technical service/company registered capital of 1 million yuan, existing staff 100 people,the company headquarters is located in No.81 Jinye 1st Road ,high-Tech Zone,Xi’an,Shaanxi. Branch office located in hanzhong, han area. The company has been engaged in the industry for more than 20 years of scientific research and production experience, under the leadership of the company, mainly undertake aluminum, steel high-precision weighing sensors,ranging from 1kg to 50t. Pressure sensor, loader oil pressure sensor, range from 1Mpa to 200Mpa. Independently developed electronic balance series weighing sensor, which have been widely praised by many customers at home and abroad, won the honorary title of Xi 'an high-tech enterprise.




Application

Aluminum High Precision Load Cell Electronic Balance Weighing Sensor 5kg 10kg 20kg 40kg 2

Process flowchart

Aluminum High Precision Load Cell Electronic Balance Weighing Sensor 5kg 10kg 20kg 40kg 3

Packing & Shipping
Aluminum High Precision Load Cell Electronic Balance Weighing Sensor 5kg 10kg 20kg 40kg 4

FAQ



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.



2.Do you accept customized?

Yes, we have different customers make their own OEM products. So we can make products as per your requirement.



3. When will you arrange the production?

We will arrange the production immediately after receiving your payment.



4. Can I get some samples before place order and how long for a sample?

Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.


5. Do you have any discount?

To clients who bring repeat orders and large orders. Please contact us for better quote.
