| Place of Origin: | china |
| Brand Name: | ruijia |
| Model Number: | RJ-6510 |

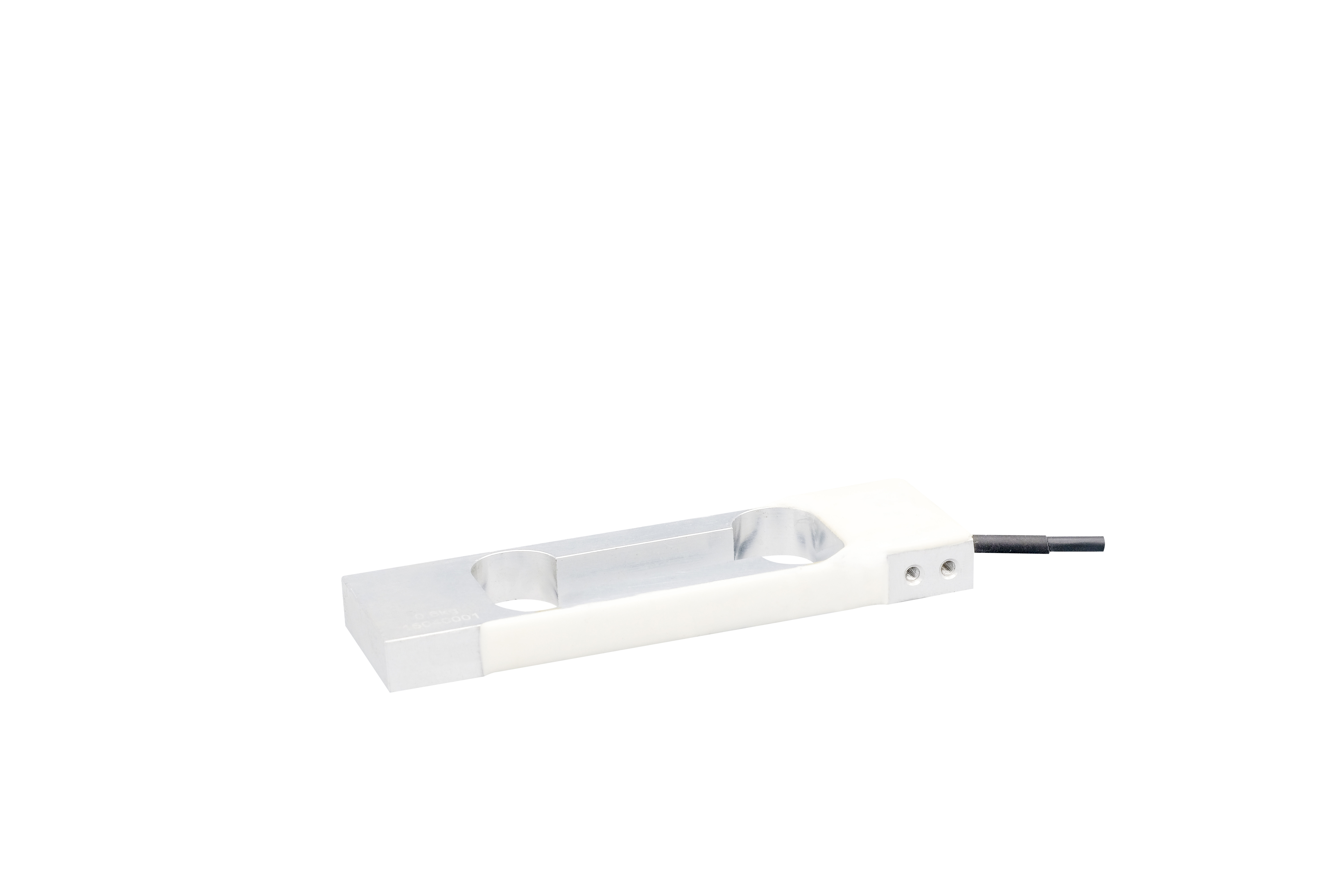

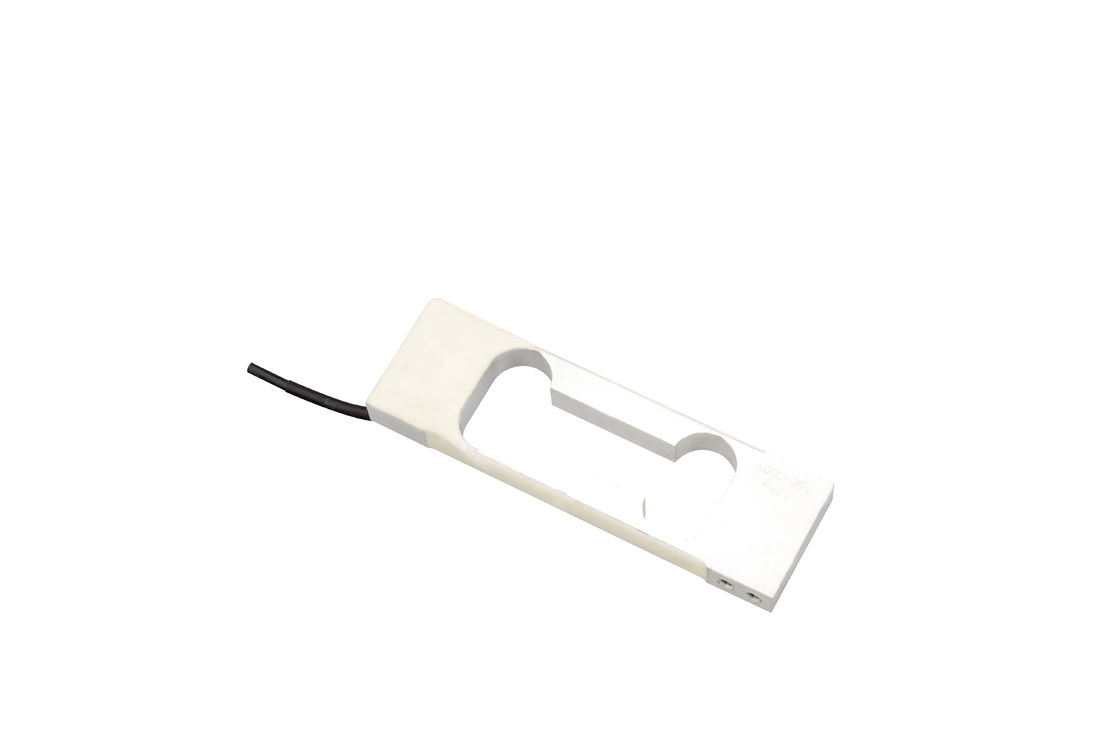

Small Range 0.3kg 0.6kg 1.2kg 1.5 kg 2kg Aluminum Alloy load cell for Electronic Scales Weighing Sensor
Principle and Structure:
A force sensor is a device that converts the magnitude of a force into an associated electrical signal. Force is the direct cause of changes in the motion of matter. Force sensors can detect mechanical quantities such as tension, tension, pressure, weight, torque, internal stress and strain. Specific devices include metal strain gauges, pressure sensors, etc., which have become indispensable core components in power equipment, construction machinery, various types of work machines and industrial automation systems.
Features:
1. Easy to install, use and carry.
2. Silicon rubber sealing with good waterproof performance.
3. It has high anti-vibration and shock stability.
4. Widely used for medical scales, low profile platform scales, postal scales, medical equipment test and measurement application.
Dimension:
Specification:
| Capacity | Kg | 0.3/0.6/1.2/1.5/2 |
| Sensitivity | mV/V | 1.1±0.2 |
| Accuracy | %FS |
≤±0.02 |
| Creep(15min) | %FS | ≤±0.01 |
| Input Resistance | Ω | 406±20 |
| Output Resistance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ≤±2 |
| Temperature Effects on Span | %FS/10℃ | ≤0.02 |
| Temperature Effect on Zero | %FS/10℃ | ≤0.02 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 6～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | IP65 | |
| Cable specification | mm | Ф3 |
| Cable length | m | 0.4 |
| Material | Aluminum Alloy |
Company information
Xian Ruijia measurement instrument co., LTD was founded in 2005, mainly engaged in the force sensitive sensor and related electronic products design, production, sales and technical service/company registered capital of 1 million yuan, existing staff 100 people,the company headquarters is located in No.81 Jinye 1st Road ,high-Tech Zone,Xi’an,Shaanxi. Branch office located in hanzhong, han area. The company has been engaged in the industry for more than 20 years of scientific research and production experience, under the leadership of the company, mainly undertake aluminum, steel high-precision weighing sensors,ranging from 1kg to 50t. Pressure sensor, loader oil pressure sensor, range from 1Mpa to 200Mpa. Independently developed electronic balance series weighing sensor, which have been widely praised by many customers at home and abroad, won the honorary title of Xi 'an high-tech enterprise.
Application
Process flowchart
Packing & Shipping
FAQ
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2.Do you accept customized?
Yes, we have different customers make their own OEM products. So we can make products as per your requirement.
3. When will you arrange the production?
We will arrange the production immediately after receiving your payment.
4. Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.
5. Do you have any discount?
To clients who bring repeat orders and large orders. Please contact us for better quote.
E-mail: frank0505@126.com yangzaiquan@xarj.cn Whats: +18992920670
Looking forward to cooperating with you!
