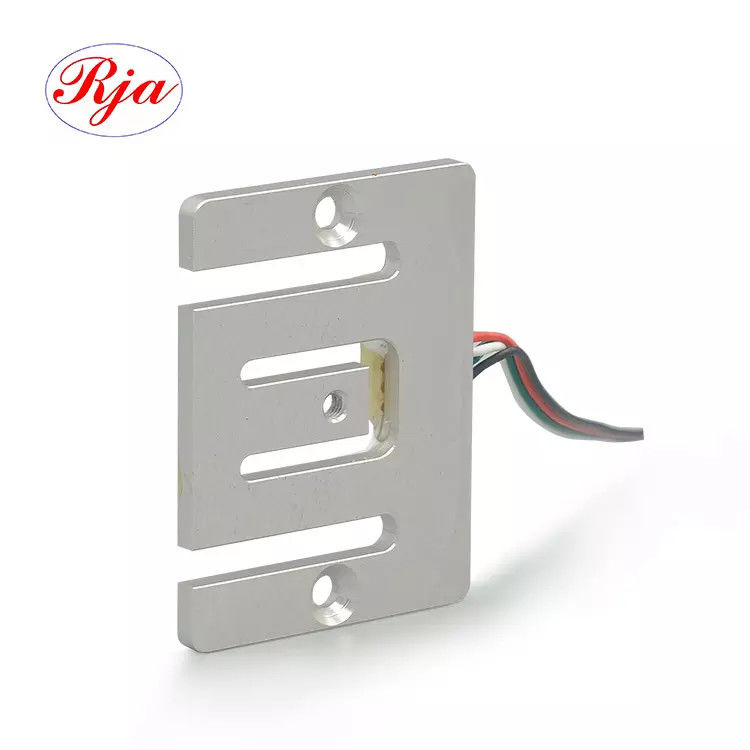

5kg 10kg 20kg Aluminum Parallel Beam Load Cell Water Proof Weighing Sensor

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-6501
Minimum Order Quantity: 1pc
Price: USD 50/piece
Packaging Details: Standard export packaging
Delivery Time: Within 2-4 Weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Theory: Resistance Sensor Capacity: 5/10/25 Kg
Sensitivity: 0.05 Creep(5min): ±0.02 %FS
Input Resistance: 395±20 Ω Output Resistance: 350±5 Ω
Rated Temperature Range: -10~+60 ℃ Operating Temperature Range: -20~+80 ℃
Cable Specification: Ф5 Protection: IP65
High Light:

20kg Aluminum Parallel Beam Load Cell


Water Proof Parallel Beam Load Cell


Parallel Beam Strain Gauge Weight Sensor

Product Description

Aluminum Parallel Beam 5kg 10kg 20kg weighing sensor water-proof Load Cell



Principle and Structure:


The parallel beam sensor is based on such a principle: the elastomer is elastically deformed under the action of external force, so that the resistance strain gauge pasted on its surface is also deformed. The resistance will change (increase or decrease), and then the resistance change will be converted into an electrical signal (voltage or current) through the corresponding measurement circuit, thus completing the process of converting the external force into an electrical signal.





1. Easy to install, use and carry.

2. Silicon rubber sealing with good waterproof performance.

3. It has high anti-vibration and shock stability.

4. Widely used for medical scales, low profile platform scales, postal scales, medical equipment test and measurement application.





5kg 10kg 20kg Aluminum Parallel Beam Load Cell Water Proof Weighing Sensor 0





Capacity Kg 5/10/25
Sensitivity mV/V 1.5±0.2
Sensitivity %FS 0.05
Creep(5min) %FS


Input Resistance Ω 395±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ 0.05
Temperature Effect on Zero %FS/10℃ 0.05
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 6~12
Allowed Excitation Voltage V 3~15
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Φ1Electronic wiring
Cable length m 0.4
Material   Aluminum Alloy


Company information
5kg 10kg 20kg Aluminum Parallel Beam Load Cell Water Proof Weighing Sensor 1
Our company takes product technology as guide, cooperates with partners confidentially, and strives to become your better supplier with perfect after-sales service as its guarantee.Since our company began to study resistance strain gauge in 1997, it has continuously pursued technological innovation and developing and producing in strict accordance with the 0IML62# recommendation and GB/T13992-92 standard. Our company employs several senior members of the strain gauge industry as the technical consultant for many years, and has more than 20 years of technical and technological personnel engaged in the industry, so as to ensure the long-term stability and consistency of our products.For many years, our company has been strengthening its cooperation with research institutions in polymer material industry to develop base materials which suitable for high-quality resistance strain gauge. The strain gauge produced by our company is suitable for manufacturing medium-precision and high-precision weighing load cells and precision stress analysis, greatly reducing the lag and non-linear error of products and improving the stability of the product.

5kg 10kg 20kg Aluminum Parallel Beam Load Cell Water Proof Weighing Sensor 2
Process flowchart
5kg 10kg 20kg Aluminum Parallel Beam Load Cell Water Proof Weighing Sensor 3
Packing & Shipping
5kg 10kg 20kg Aluminum Parallel Beam Load Cell Water Proof Weighing Sensor 4



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.


2.Do you accept customized?

Yes, we have different customers make their own OEM products. So we can make products as per your requirement.


3. When will you arrange the production?

We will arrange the production immediately after receiving your payment.


4. Can I get some samples before place order and how long for a sample?

Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.

5. Do you have any discount?

To clients who bring repeat orders and large orders. Please contact us for better quote.
