Strain Gauge Load Cell
>

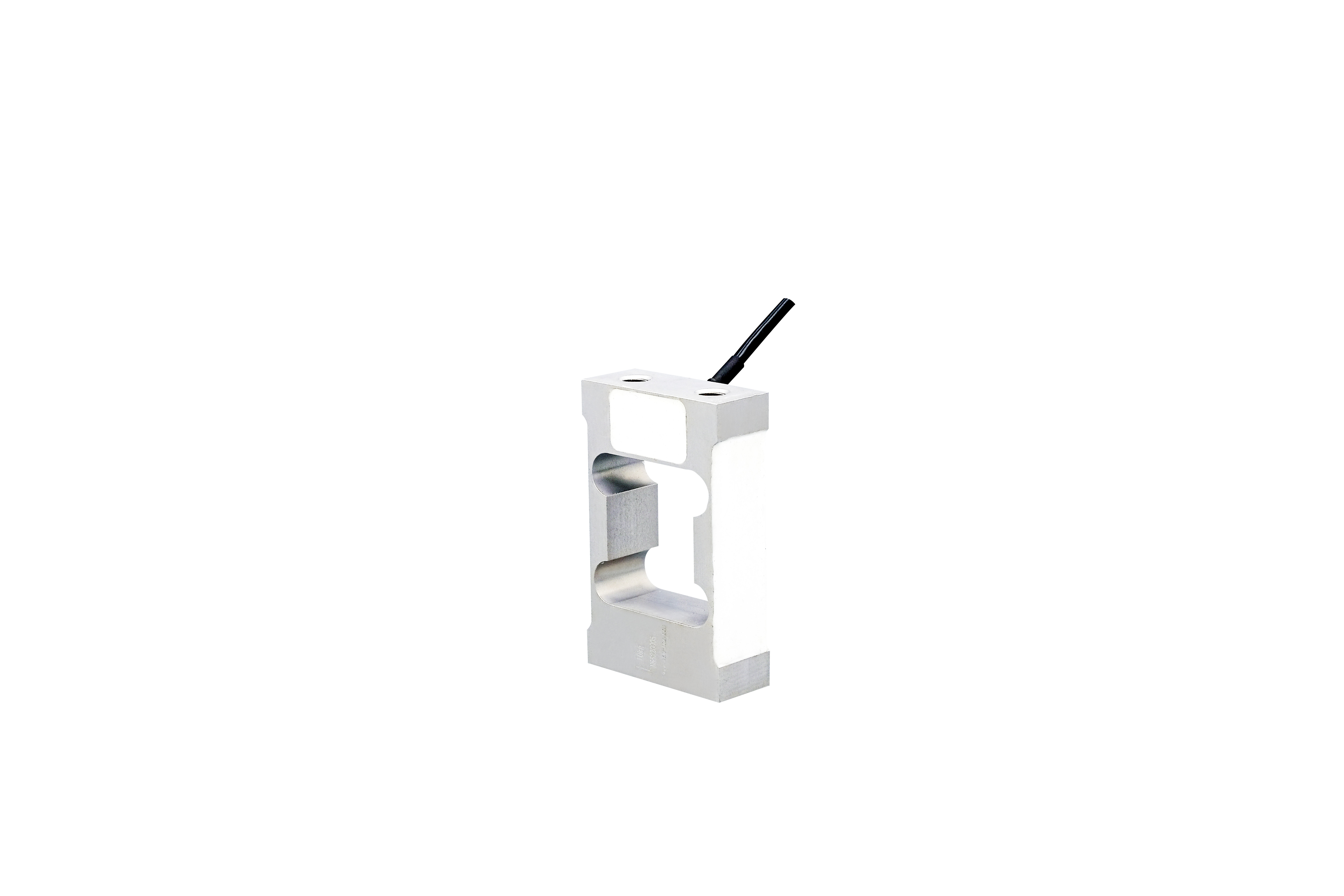

Silicone Rubber Sealing Strain Gauge Load Cell Small Range For Packing

Silicone Rubber Sealing Strain Gauge Load Cell Small Range For Packing

Product Details:
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-6522
Detail Information
Place of Origin:
china
Brand Name:
ruijia
Model Number:
RJ-6522
Theory:
Resistance Sensor
Capacity:
4/5/6/8/10/15/20/30 Kg
Sensitivity:
2.0±0.2 MV/V
Creep(15min):
±0.02 %FS
Input Resistance:
406±20 Ω
Output Resistance:
350±5 Ω
Rated Temperature Range:
-10~+60 ℃
Operating Temperature Range:
-20~+80 ℃
Cable Specification:
Ф4
Protection:
IP65
High Light:

High Light

High Light:

Silicone Rubber Sealing Load Cell

,

Packing Strain Gauge Weight Sensor

,

Resistance Strain Gauge Load Cell

Trading Information
Minimum Order Quantity:
1pc
Price:
USD 8~13/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
10000 Piece/Pieces per Month
Product Description



Small Range Silicon Rubber Sealing Load Cell suitable for Packing Scale Weighing Sensor





Principle and Structure:





The Weighing Sensor is constructed using the principle of resistance strain. When the measured force acts directly on the strain gauge of the hollow cylinder pasted with the resistance strain gauge through the pull-indenter, the strain gauge is axially compressed and radially expanded, the corresponding axial resistance strain value decreases, and the radial value increases. When the bridge is out of balance, when the bridge power is supplied from the outside, there is an unbalanced voltage output at the angle output, which is proportional to the measured force acting on the load cell.





Features:



1. The weighing sensor has a simple structure and is easy to install, use and carry.

2. It has good sealing and moisture-proof performance.

3. It has high anti-vibration and shock stability.

4. The structural design ensures that the transmission error is small and the measurement is reliable, and it has good static and dynamic characteristics.





Dimension:



Silicone Rubber Sealing Strain Gauge Load Cell Small Range For Packing 0





Specification:



Capacity Kg 4/5/6/8/10/15/20/30
Sensitivity mV/V 2.0±0.2
Accuracy

±0.02

Creep(15min) %FS ±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ ±0.017
Temperature Effect on Zero %FS/10℃ ±0.017
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф4
Cable length m 0.3
Material   Aluminum Alloy






















































Company information
Silicone Rubber Sealing Strain Gauge Load Cell Small Range For Packing 1

Our company takes product technology as guide, cooperates with partners confidentially, and strives to become your better supplier with perfect after-sales service as its guarantee.Since our company began to study resistance strain gauge in 1997, it has continuously pursued technological innovation and developing and producing in strict accordance with the 0IML62# recommendation and GB/T13992-92 standard. Our company employs several senior members of the strain gauge industry as the technical consultant for many years, and has more than 20 years of technical and technological personnel engaged in the industry, so as to ensure the long-term stability and consistency of our products.For many years, our company has been strengthening its cooperation with research institutions in polymer material industry to develop base materials which suitable for high-quality resistance strain gauge. The strain gauge produced by our company is suitable for manufacturing medium-precision and high-precision weighing load cells and precision stress analysis, greatly reducing the lag and non-linear error of products and improving the stability of the product.


Application

Silicone Rubber Sealing Strain Gauge Load Cell Small Range For Packing 2

Process flowchart

Silicone Rubber Sealing Strain Gauge Load Cell Small Range For Packing 3

Packing & Shipping
Silicone Rubber Sealing Strain Gauge Load Cell Small Range For Packing 4


FAQ



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.



2.Do you accept customized?

Yes, we have different customers make their own OEM products. So we can make products as per your requirement.



3. When will you arrange the production?

We will arrange the production immediately after receiving your payment.



4. Can I get some samples before place order and how long for a sample?

Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.


5. Do you have any discount?

To clients who bring repeat orders and large orders. Please contact us for better quote.
