| Place of Origin: | china |
|---|---|
| Brand Name: | ruijia |
| Model Number: | RJ-9830 |
| Minimum Order Quantity: | 1pc |
| Price: | USD 70 |
| Packaging Details: | Standard export packaging |
| Delivery Time: | Within 2-4 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Theory: | Resistance Sensor | Capacity: | 2T |
|---|---|---|---|
| Sensitivity: | 2.0±0.1 MV/V | Accuracy: | ≤±0.05 |
| Input Resistance: | 375±10 Ω | Output Resistance: | 350±10 Ω |
| Proposed Excitation Voltage: | 6~12 V | Allowed Excitation Voltage: | 18 V |
| Cable Specification: | Ф5 | Materail: | Alloy Steel |
| High Light: | Alloy Steel Strain Gauge Load Cell,8 Ton Load Cell Sensor,Elevator Weighing Strain Gauge Load Cell |
||

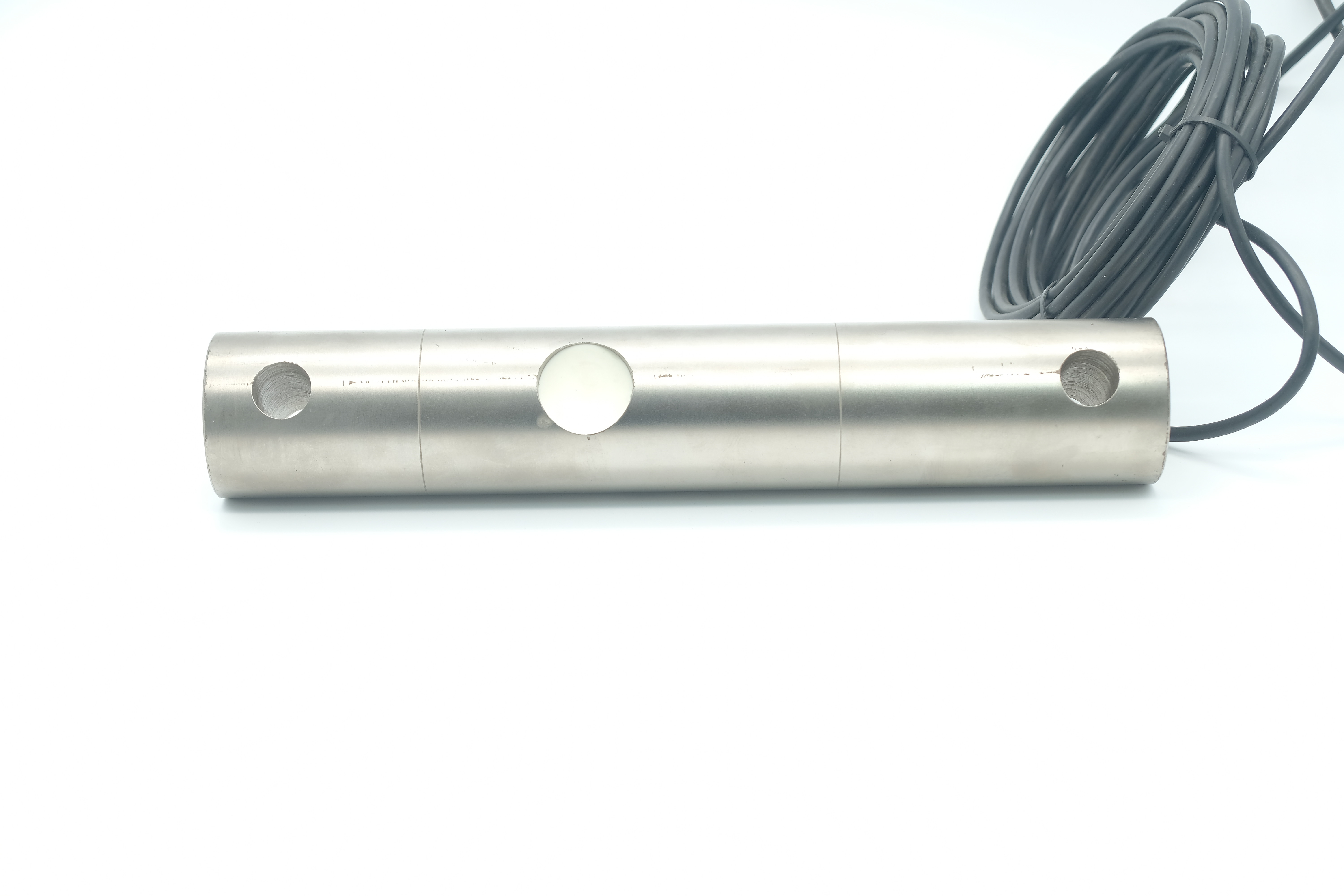

China factory 8 Ton alloy steel strain gauge load cell, used for elevator weighing sensor
Dimension:
Specification:
| Capacity | t | 8 |
| Sensitivity | mV/V | 2.0±0.1 |
| Accuracy |
≤±0.05 |
|
| Creep(15min) | %FS | ≤±0.02 |
| Input Resistance | Ω | 375±10 |
| Output Resistance | Ω | 350±10 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ≤±1 |
| Temperature Effects on Span | %FS/10℃ | ≤0.02 |
| Temperature Effect on Zero | %FS/10℃ | ≤0.02 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 6～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | IP65 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 2 |
| Material | Alloy Steel |
Company Information
Our company takes product technology as guide, cooperates with partners confidentially, and strives to become your better supplier with perfect after-sales service as its guarantee.Since our company began to study resistance strain gauge in 1997, it has continuously pursued technological innovation and developing and producing in strict accordance with the 0IML62# recommendation and GB/T13992-92 standard. Our company employs several senior members of the strain gauge industry as the technical consultant for many years, and has more than 20 years of technical and technological personnel engaged in the industry, so as to ensure the long-term stability and consistency of our products.For many years, our company has been strengthening its cooperation with research institutions in polymer material industry to develop base materials which suitable for high-quality resistance strain gauge. The strain gauge produced by our company is suitable for manufacturing medium-precision and high-precision weighing load cells and precision stress analysis, greatly reducing the lag and non-linear error of products and improving the stability of the product.
Application
Process flowchart
Packing & Shipping
FAQ
1.What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2.Are you a trading company?
We are manufacturer, our factory has passed CTI, ISO9001:2008, NTEP, OIML, we have good quality control.
3.Do you accept customized?
Yes, we have different customers make their own OEM products.
So we also can make products as per your requirement.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5.Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freight,the lead time for samples is about 7 days up on got the payment.
6.How is your shipping?
1)shipping by express(sample order) or by sea (bulk order);
2)worldwide shipping service available;
3)please contact before order as shipping cost varies time to time.
7.Will you have some discount?
1)To clients who bring repeat orders and large orders;
2)Please contact us for Better Quote.
8.May I have your contact information?
You can add us on WFATSAPP: +86 18992920670.
Looking forward to cooperating with you!
