| Place of Origin: | china |
| Brand Name: | ruijia |
| Model Number: | RJ-6525 |

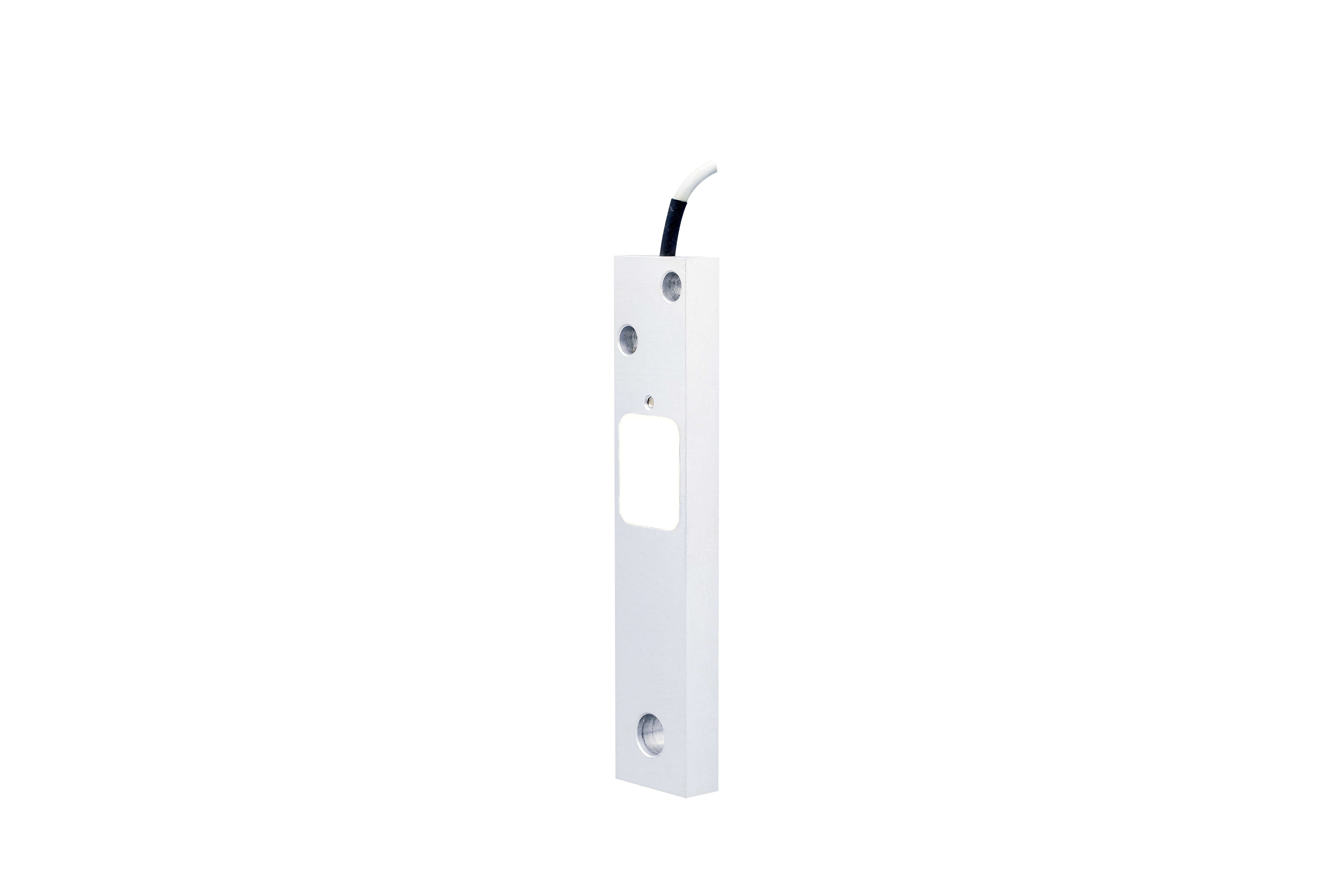

25kg aluminum alloy load cell parallel beam strain type lift and electronic weighing sensor
Features:
The product is made of aluminum alloy. It is hermetically sealed with glue to IP65, surface anodized and anti - corrosion, integral structure and easy installation. The product is suit for elevator and other weighing system.
Dimension:
Specification:
| 量程 Capacity | Kg | 25 |
| 灵敏度 Sensitivity | mV/V | 2.0±0.2 |
| 精度 Accuracy |
≤±0.05 0.02 |
|
| 蠕变 Creep(15min) | %FS | ≤±0.02 |
| 输入阻抗 Input Resistance | Ω | 395±20 |
| 输出阻抗 Output Resistance | Ω | 350±5 |
| 绝缘阻抗 Insulation Resistance | M Ω | ≥5000(100VDC) |
| 零点平衡 Zero Balance | %FS | ≤±1 |
| 温度对灵敏度影响Temperature Effects on Span | %FS/10℃ | ≤0.05 |
| 温度对零点影响Temperature Effect on Zero | %FS/10℃ | ≤0.05 |
| 补偿温度范围Rated Temperature Range | ℃ | -10～+60 |
| 工作温度范围Operating Temperature Range | ℃ | -20～+80 |
| 建议激励电压Proposed Excitation Voltage | V | 6～12 |
| 允许激励电压Allowed Excitation Voltage | V | 18 |
| 安全过载 Safe Overload | %FS | 120 |
| 极限过载 Ultimate Overload | %FS | 150 |
| 防护等级 Protection | IP65 | |
| 电缆线规格 Cable specification | mm | Ф3 |
| 电缆线长度 Cable length | m | 0.8/1.25 |
| 材料 Material | Aluminum Alloy |
Company Information
Our company takes product technology as guide, cooperates with partners confidentially, and strives to become your better supplier with perfect after-sales service as its guarantee.Since our company began to study resistance strain gauge in 1997, it has continuously pursued technological innovation and developing and producing in strict accordance with the 0IML62# recommendation and GB/T13992-92 standard. Our company employs several senior members of the strain gauge industry as the technical consultant for many years, and has more than 20 years of technical and technological personnel engaged in the industry, so as to ensure the long-term stability and consistency of our products.For many years, our company has been strengthening its cooperation with research institutions in polymer material industry to develop base materials which suitable for high-quality resistance strain gauge. The strain gauge produced by our company is suitable for manufacturing medium-precision and high-precision weighing load cells and precision stress analysis, greatly reducing the lag and non-linear error of products and improving the stability of the product.
Application
Process flowchart
Packing & Shipping
FAQ
1.What's your MOQ?
Normally our MOQ is 100 pcs, but sometimes maybe we have other order on hand, if based on ODM, MOQ can be negotiated.
2.Are you a trading company?
We are manufacturer, our factory has passed CTI, ISO9001:2008, NTEP, OIML, we have good quality control.
3.Do you accept customized?
Yes, we have different customers make their own OEM products.
So we also can make products as per your requirement.
4.How long can I expect to receive my goods after I place an order?
Our production time is always 45 days after pre-production sample confirmation.
5.Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freight,the lead time for samples is about 7 days up on got the payment.
6.How is your shipping?
1)shipping by express(sample order) or by sea (bulk order);
2)worldwide shipping service available;
3)please contact before order as shipping cost varies time to time.
7.Will you have some discount?
1)To clients who bring repeat orders and large orders;
2)Please contact us for Better Quote.
