Strain Gauge Load Cell
>

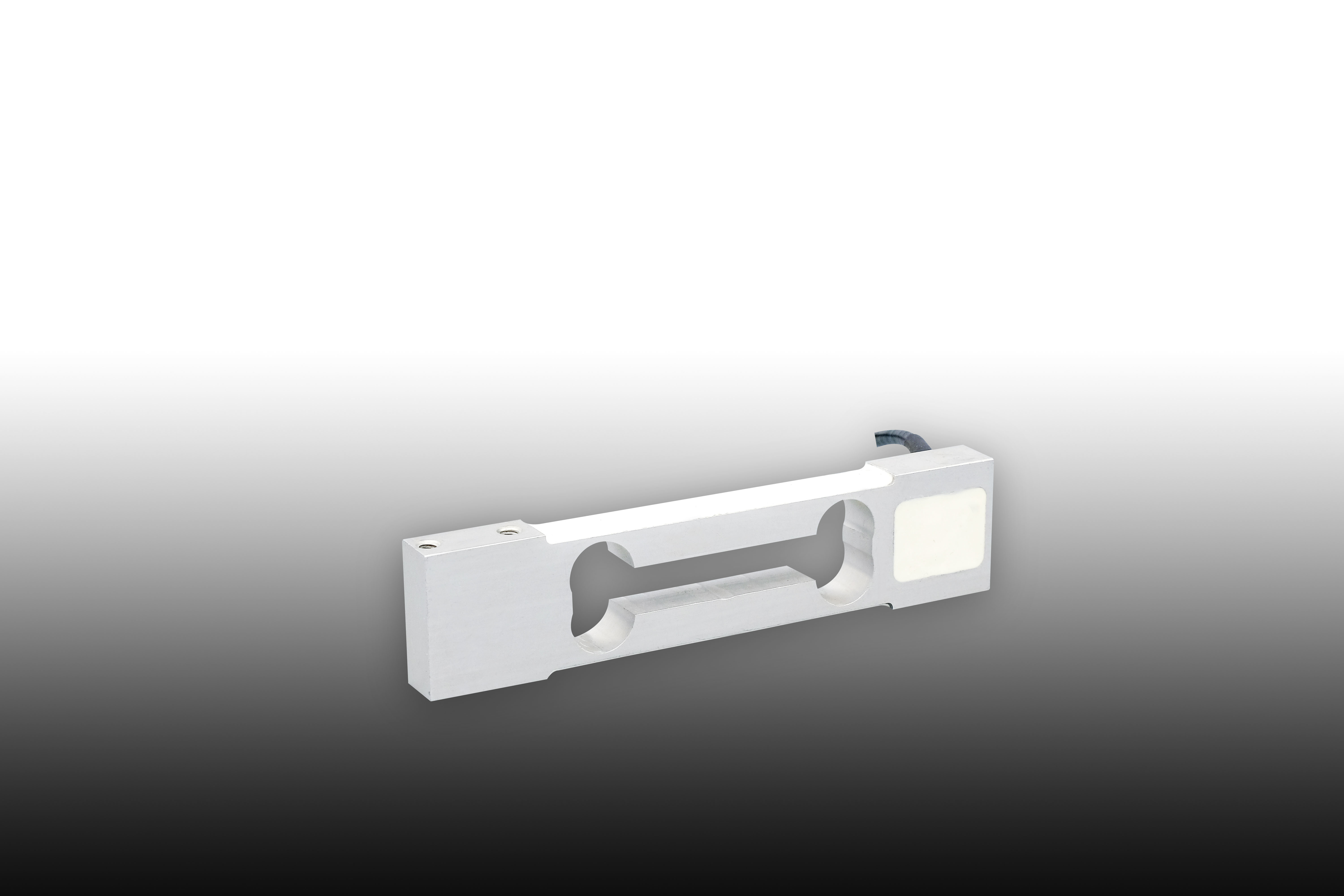

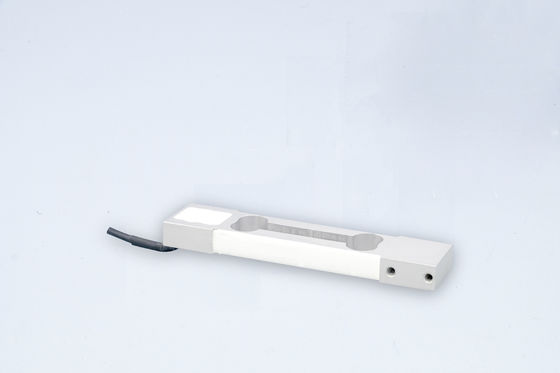

Aluminum Alloy Strain Gauge Load Cell High Precision Weighing Sensor

Aluminum Alloy Strain Gauge Load Cell High Precision Weighing Sensor

Product Details:
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-6520
Detail Information
Place of Origin:
china
Brand Name:
ruijia
Model Number:
RJ-6520
Theory:
Resistance Sensor
Capacity:
0.3/0.6/1.2/2/3
Safe Overload (%F.S):
120
Ultimate Overload (%F.S):
150
Excitation Voltage (V):
6-12(DC)
Material:
Aluminum Alloy
Warranty:
1 Year
Output Resistance:
350 ±5 Ohm
Input Resistance:
406 ± 20ohm
High Light:

High Light

High Light:

Aluminum Alloy Strain Gauge Load Cell

,

Strain Load Cells For Weighing

,

High Precision Load Cell Sensor 6DC

Trading Information
Minimum Order Quantity:
1pc
Price:
USD5
Packaging Details:
Standard export packaging
Delivery Time:
Within 2-4 Weeks
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
10000 Piece/Pieces per Month
Product Description



Hot selling small range high precision aluminum alloy weighing sensor



Features:



The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti - corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.



Dimension:

Aluminum Alloy Strain Gauge Load Cell High Precision Weighing Sensor 0

Aluminum Alloy Strain Gauge Load Cell High Precision Weighing Sensor 1



Specification:



Specification:

Rated Capacity : 0.3/0.6/1.2/2/3(KG)



Creep in 2 Min.:±0.015%R.O.

Accuracy :B*



Creep in 30 Min.:±0.03%R.O.

Rated output(mV/V) :1.3±10%mV/V



Temp. effect on Output: ±0.03%R.O./10℃

Zero balance : ±5%R.O.



Temp. effect on zero: ±0.05%R.O./10℃

Input resistance(Ω) : 405±10Ω



Excitation,Recommended:5-12VDC

Output resistance(Ω) : 350±3Ω



Excitation,Maximum:18VDC

Linearity Error:±0.02%R.O.



Operating Temp.Range:-20~+60℃

Repeatability Error:±0.015%R.O.



Safe Overload:150%R.C

Hysteresis Error:±0.015%R.O.



Ultimate Overload:200%R.C.

Compensated Temp.Range:-10~+40℃



Insulation Resistance:≥2000MΩ(50VDC)

Operating Temp.Range:-20~+60℃



Cable,Length:¢4mmx0.25m

Excitation,Recommended:5~12VDC



Protection Class:IP65



Application



Aluminum Alloy Strain Gauge Load Cell High Precision Weighing Sensor 2



Process flowchart

Aluminum Alloy Strain Gauge Load Cell High Precision Weighing Sensor 3



FAQ



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.



2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.



3. When will you arrange the production?

We will arrange the production immediately after receiving your payment.



4. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
