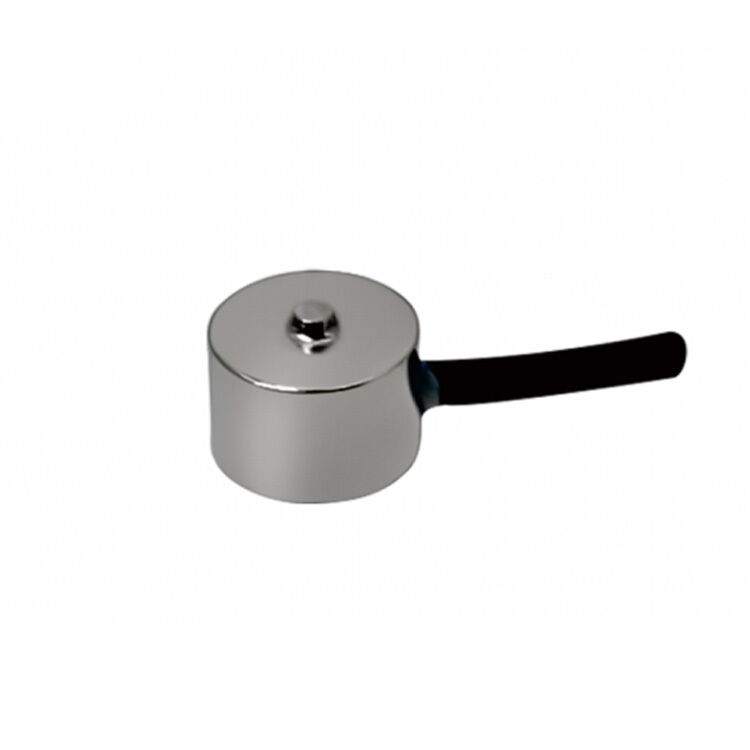

Micro Compression Force Load Cell
Micro Compression Force Load Cell
The sensor is miniature load cell,high precision and fast operational response.The micro load cell uses stainless steel material,tight welding technique that can prevent corrosion and waterproof.it suitable for medical inspection,robot field and industrial control system.
Key feature:
Micro load cell
Capacity:20-500N
Precision: 0.5%R.O.
Protection class: IP66/PI67
Rated Output : 1.0mV/V±20%
Use & Applications:
It mainly used in car press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial test, measurement and control systems.
Dimension:
Specifications:
| Rated Capacities |
20-500N |
| Rated Output |
1.0mV/V±20% |
| Zero Balance |
±0.0500 mV/V |
| Non-linearity |
0.5%R.O. |
| Hysteresis |
0.5%R.O. |
| Repeatability |
0.5%R.O. |
| Safe Overload |
150 %R.O. |
| Ultimate Overload |
200 %R.O. |
| Temperature Effect On Output |
0.005%R.O./℃ |
| Temperature Effect On Zero |
0.005%R.O./℃ |
| Input Impedance |
600~800Ω |
| Output Impedance |
600~800Ω |
| Insulation Impedance |
≥5000 MΩ/(50VDC) |
| Recommended Excitation |
5~12 VDC |
| Maximum Excitation |
15 VDC |
| Operating Temperature Range |
-20~80 ℃ |
| Construction |
Stainless Steel |
| Protection Class |
IP66/IP67 |
| Cable |
Φ2×4m |
| Recommended Platform Size |
|
| Mode of Connection |
Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) |
