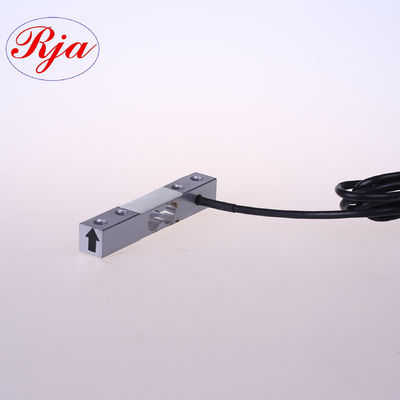

Kitchen Scale Micro Load Cells , 3kg - 50kg Analog Output Small Weight Sensor

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-6512
Minimum Order Quantity: 1pc
Price: USD3-10/pc
Packaging Details: Product packed in foam box with bubble bag.
Delivery Time: 2-4 weeks
Payment Terms: Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Usage: Pressure Sensor Theory: Resistance Sensor
Output: Analog Sensor Capacity: 3-50kg
Dimension (mm): 80*12.7*12.7mm Comprehensive Error (%F.S): ±0.05
Ultimate Overload (%F.S): 150 Accuracy: C2/ C3
Excitation Voltage (V): 5-10(DC) Application: Postal Scales, Kitchen Scales,fishing Scales Etc.
High Light:

floor scale load cells

,

strain load cell


Product Description



3kg 5kg 10kg 15kg 50kg micro load cells Kitchen scale small weight sensor



Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.



Micro load cell can be applied in kitchen scales, postal scales, another micro electronic weighting systems.



Specifications:



Item Specification
Range 0.5~25kg
Precision 0.05%F.S
Sensitivity 1.0±0.15mv/v
Non-linearity 0.05%F.S
Hysteresis 0.02%F.S
Repeatability 0.01&0.02%F.S
Creep 0.05%F.S/3min
Zero balance ±0.1mv/v
Input resistance 1000±150Ω
Output resistance 1000±10Ω
Insulation resistance ≥2000MΩ
Excitation voltage 5-10VDC
Use Temp .range -10~40℃
Temp. effect on zero 0.05%F.S/10℃
Temp. effect on span 0.05%F.S/10℃
Ultimate overload 150%F.S
Position error ±0.1%F.S
Wiring schematic diagram

Input:+(red)-(Black)

Output:+(green)-(white)

Cable φ0.8×220mm



Dimension:



GML611 Kitchen scale small micro weight sensor price





Product Show:



GML611 Kitchen scale small micro weight sensor price






Application



GML611 Kitchen scale small micro weight sensor price

GML611

Product flowchart



Kitchen Scale Micro Load Cells , 3kg - 50kg Analog Output Small Weight Sensor 4







Packaging & Shipping



Kitchen Scale Micro Load Cells , 3kg - 50kg Analog Output Small Weight Sensor 5



Our Services



Service standards: we are committed to provide a high quality and responsive service to all clients

The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.

Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.

Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business

OEM available



FAQ



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.



2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.



3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.
