Micro Pressure Button Load Cell

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

Capacities:

50-200N

Material:

Stainless Steel

Rated Output:

1.0mV/V±20%

Protection Class:

1.0mV/V±20%

Cable:

Φ2×3m

Payment:

100% Payment Before Shipment

Highlight:

High Light

Highlight:

micro pressure button load cell

compact load cell with warranty

high precision micro load cell

Trading Information

Minimum Order Quantity:

Price:

USD30 ~45/piece

Packaging Details:

Standard export packaging

Delivery Time:

5-8 Work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Month

Product Description

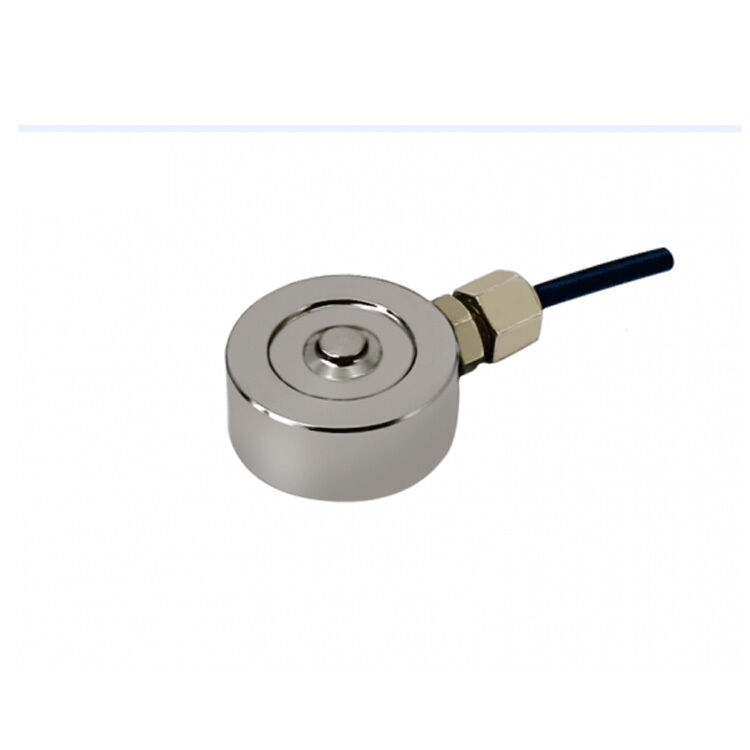

Micro Pressure Button Load Cell

Micro Pressure Button Load Cell

The load cell is high precision load cell suitable for force measurement and thread force monitoring in various small spaces, and is widely used in measurement and control in industries, R & D and other fields.The micro sensor made of stainless steel material that prevent corrosion and waterproof,it has the quality assurance.

Key feature:

Micro sensor

anti-corrosion

Stainless steel

High dynamic response frequency

Usage & Applications:

Push-pull dynamometer

3C product test

Robot field

Automation field

Dimension:

Micro Pressure Button Load Cell 0

Specification:

Rated Capacities	50-200N
Rated Output	1.0mV/V±20%
Zero Balance	±0.0300 mV/V
Non-linearity	0.5%R.O.
Hysteresis	0.2%R.O.
Repeatability	0.2%R.O.
Safe Overload	150 %R.O.
Ultimate Overload	200 %R.O.
Temperature Effect On Output	0.005%R.O./℃
Temperature Effect On Zero	0.005%R.O./℃
Input Impedance	800~1100Ω
Output Impedance	800~1100Ω
Insulation Impedance	≥5000 MΩ/(50VDC)
Recommended Excitation	5~12 VDC
Maximum Excitation	15 VDC
Operating Temperature Range	-20~80 ℃
Construction	Stainless Steel
Protection Class	IP66/IP67
Cable	Φ2×3m
Recommended Platform Size
Mode of Connection	Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)
