Ultra-Thin Full-Bridge Load Cell Weight Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

Material:

Stainless Steel

Feature:

Low Temperature Resistant

Certification:

RoHS

Output Signal Type:

Analog Type

IP Rating:

IP65

HS Code:

9031809090

Highlight:

High Light

Highlight:

ultra-thin full-bridge load cell

micro load cell weight sensor

full-bridge weight sensor with warranty

Trading Information

Minimum Order Quantity:

Price:

USD1.5 ~2.5/piece

Packaging Details:

Standard export packaging

Delivery Time:

5-8 Work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Month

Product Description

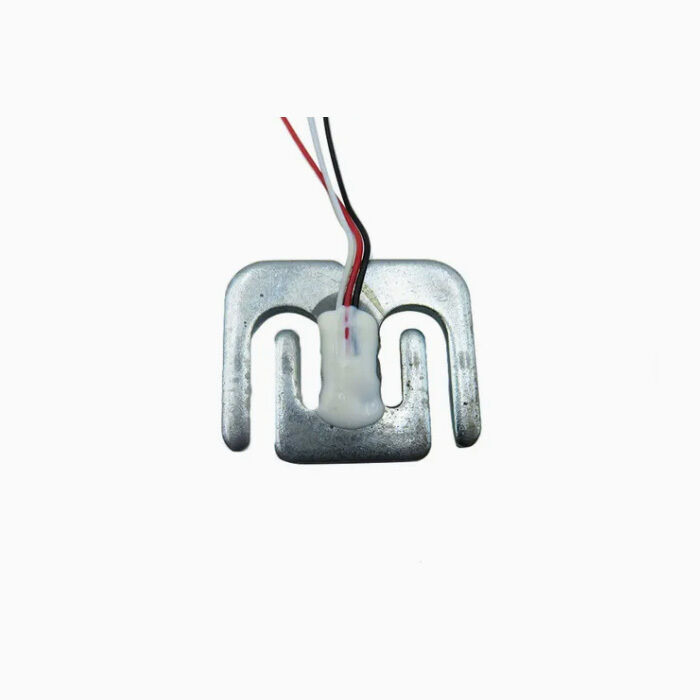

Ultra-Thin Full-Bridge Load Cell Weight Sensor

Ultra-Thin Full-Bridge Load Cell Weight Sensor 0

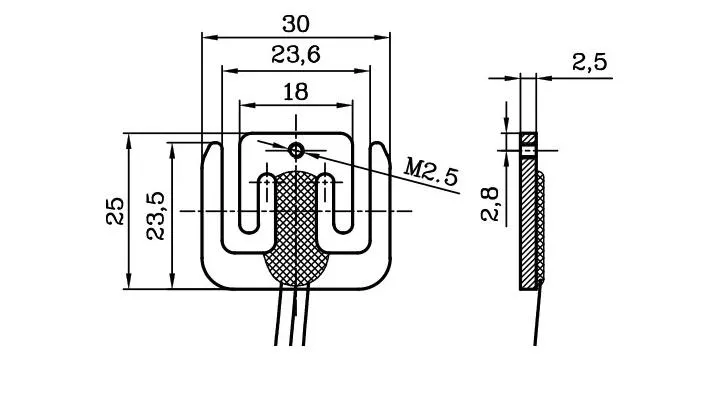

Product size drawing

Product parameter list

capacity	Kg	50Kg
Rated Output	mv/v	1.0±0.2
Non-linearity	%F.S	0.3
Hysteresis	%F.S	0.3
Repeatability	%F.S	0.3
Creep	%F.S/3min	0.3
Temp.effect on zero	%F.S/10ºC	0.3
Temp.effect on span	%F.S/10ºC	0.3
Zero balance	mv/v	±0.2
Input impedance	Ω	1000±10
Output impedance	Ω	1000±5
Insulation resistance	MΩ	≥2000(100VDC)
Recommended excitation voltage	VDC	3~12
Allowed excitation voltage	VDC	5~15
Compensated temp.Range	ºC	-10ºC~+40ºC
Operating temp.Range	ºC	-20ºC~+60ºC
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: White:E+ Black:E-
Connection	Signal: Red:S+
