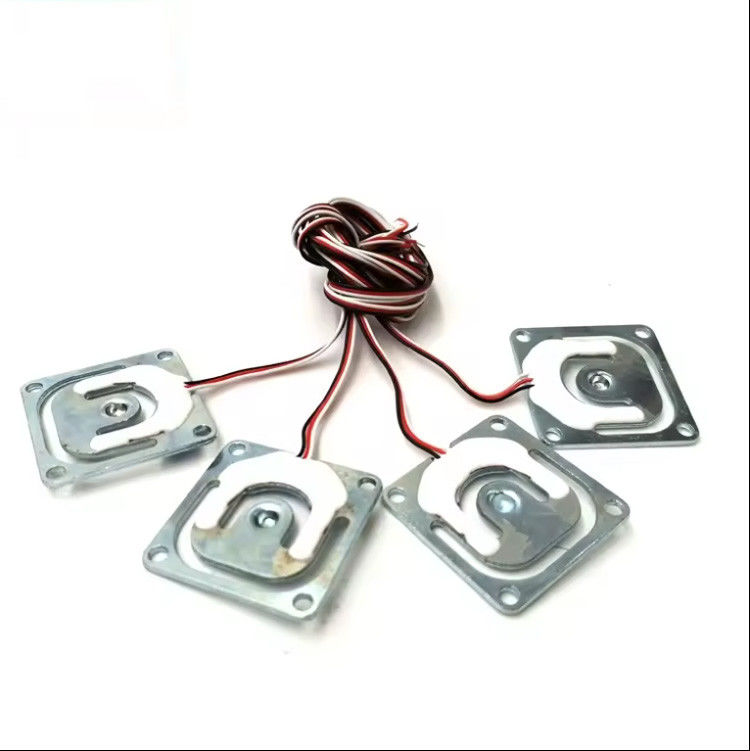

SMS beehive scale Body Scale flat thin Micro strain gauge Load Cell 50kg
Features:
Capacity: 10kg-50kg
Type: Full / half bridge load cell
Material: Alloy steel with IP66 waterproof
Application: Kitchen scale, body scale and other weighing devices.
Parameters:
| Rated capacity |
10kg, 30kg, 50kg |
| Zero balance |
±0.5mV/V |
| Output sensitivity |
0.8±0.2mV/V—Half Bridge, 1.6±0.2mV/V-Full Bridge |
| linearity |
0.05%F.S |
| Repeatability |
0.05%F.S |
| Hysteresis error |
0.05%F.S |
| Creep |
0.05%F.S/1min |
| Comprehensive error |
0.05%F.S |
| Temp. effect on span |
0.1%F.S/10℃ |
| Temp. effect on zero |
0.2%F.S/10℃ |
| Input resistance |
1000±10Ω |
| Output resistance |
1000±10Ω |
| Insulation resistance |
≥2000MΩ (10VDC) |
| Excitation voltage |
3~10VDC |
| Operating temp.range |
-10~+60℃ |
| Defend grade |
IP66 |
| Material |
alloy steel |
| Cable (Full bridge) |
Red, Black, White (Green) |
| Safe Overload F.S |
150%F.S |
| Ultimate overload |
150±10kg |
| Wiring |
Red(input+) Black(input-) White(output-) Green(output+) |
| Item |
Full bridge / half bridge load cell
|
