IP65 Industrial Aluminum Alloy Parallel Beam Load Cell 50 - 500kg 15min Creep

Basic Information
Place of Origin: China
Brand Name: Ruijia
Model Number: RJ-6540
Price: USD 6/piece
Payment Terms: T/T, L/C
Detail Information
Product Name: Parallel Beam Load Cell Input Impedance: 306±2Ω
Protection: IP65 Zero Balance: ±1%FS
Temperature Effect On Output: ±0.02%/10°C Output Impedance: 350±5Ω
Material: Aluminum Alloy Accuracy: ±0.02
High Light:

Industrial Aluminum Alloy Load Cell Scale


IP65 Beam Type Load Cell


Aluminum Alloy Single Point Load Cell

Product Description

Product Description:

Parallel Beam Load Cell is an ideal choice for platform scale applications. This type of load cell features excellent temperature stability, with an operating temperature range of -20°C~+80°C, a zero balance of ±1%FS, and a temperature effect on zero of ±0.02%/10°C. With a capacity of 50-500 Kg and an insulation resistance of ≥5000 M Ω, this load cell is suitable for a variety of applications. It is designed for easy installation and provides reliable, accurate performance. This load cell is also highly durable and shock-resistant and perfect for platform scale applications.



  • Product Name: Parallel Beam Load Cell
  • Material: Aluminum Alloy
  • Input Impedance: 306±2Ω
  • Protection: IP65
  • Output: 2mV/V
  • Compensated Temperature Range: -10°C~+60°C
  • Applications: Platform Scale load cell, Platform Scale load cell

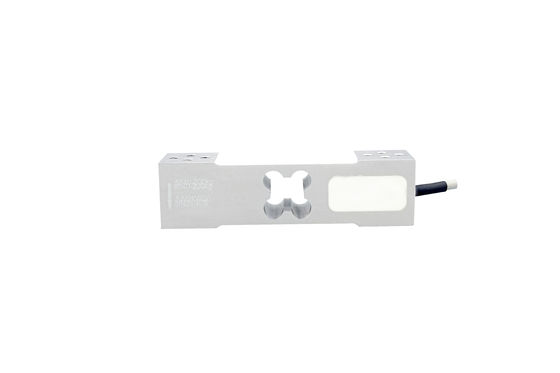

IP65 Industrial Aluminum Alloy Parallel Beam Load Cell 50 - 500kg 15min Creep 0

Technical Parameters:


Capacity Kg 50/100/150/200/250/350/500
Sensitivity mV/V 2.0±0.2


Creep(15min) %FS ±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ ±0.02
Temperature Effect on Zero %FS/10℃ ±0.02
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф5
Cable length m 2
Material   Aluminum Alloy



































Support and Services:

Parallel Beam Load Cell Technical Support and Service

Parallel Beam Load Cell is a high-quality strain gauge load cell with excellent performance. It is designed for a wide variety of applications including industrial, medical, and aerospace. Our team of experts provide technical support and service to ensure that your product is functioning properly and consistently.

Our technical support services include:

  • Assistance with product installation and setup
  • Troubleshooting product issues
  • Product upgrades and feature enhancements
  • Remote monitoring and diagnostic services
  • Training on product operation and maintenance

We also provide regular maintenance and calibration services to ensure that your product is always performing at its best. Our team of experienced technicians are available to answer any questions you may have about the product or its performance.

For more information on our Parallel Beam Load Cell technical support and service, please contact us today.


Packing and Shipping:

Packaging and Shipping of Parallel Beam Load Cell

Parallel beam load cells are securely packaged in a corrugated box. The box is lined with foam to protect the load cell from any shock or vibration during the shipping process. The package is labeled with the product name, specifications, and the customer’s address. The load cell is then shipped to the customer via a reliable carrier.
