Anti Corrosion IP65 Electronic Load Cell , 800kg Strain Gauge Load Cell

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-6550
Minimum Order Quantity: 1pc
Price: USD8-15/pc
Packaging Details: Standard export packaging
Delivery Time: 2-4 weeks
Payment Terms: Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Usage: Pressure Sensor Theory: Resistance Sensor
Output: Analog Sensor Platform Size: 600*600mm
Sensitivity: 2.0±0.1mV/V Creep: 0.016%F.S/30min
Zero Balance: 2%F.S Input Resistance: 410±10Ω
Output Resistance: 350±2Ω Protection Class: IP65
High Light:

small load cell

,

beam type load cell


Product Description

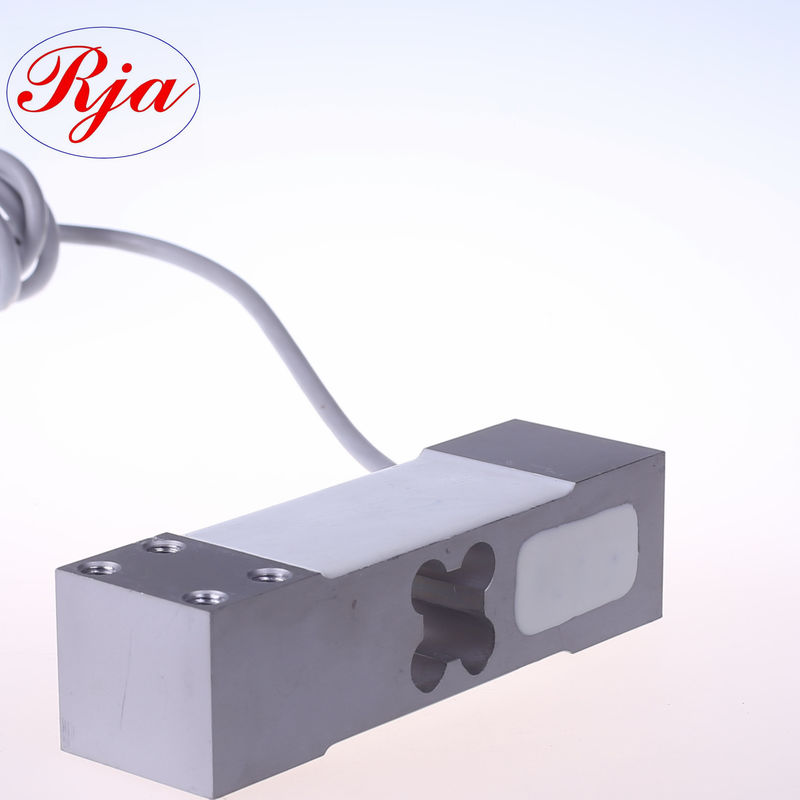

High Accuracy Parallel Beam Load Cell C3 Electronic Platform Scale sensor 800kg



Parallel Beam Load Cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.



Features:



1. Material: Aluminum Alloy

2. Silicone rubber seal, surface oxidation treatment, good anti-corrosion performance.

3. Applicable to electronic platform scales, electronic counting scales and weighing systems, with a resolution of 15,000 degrees.



Specification:



Rated Load

50, 100, 150, 200,

300, 500, 600KG

Platform Size

600*600mm

Accuracy

C3

Hysteresis Error

0.02%F.S

Sensitivity

2.0±0.1mV/V

Repeatability Error

0.01%F.S

Creep

0.016%F.S/30min

Linearity Error

0.02%F.S

Zero Balance

2%F.S

Insulation Resistance

≥3GΩ(100VDC)

Input Resistance

410±10Ω

Max.excitation Voltage

15V (AV/DC)

Output Resistance

350±2Ω

Excitation Voltage

10V (AV/DC)

Compensated temp. range

-10~+40℃

Breaking Load

150%F.S

Operation temp. range

-20~+60℃

Safe Load Limit

120%F.S

Temp.effect on sensitivity

0.0175%F.S/10℃

Off-center Error

0.02%F.S/100mm

Temp.effect on zero

0.015%F.S/10℃

Protection Class

IP65

Cable

Φ5mm*3m



Application

Anti Corrosion IP65 Electronic Load Cell , 800kg Strain Gauge Load Cell 0



Process flowchart



Anti Corrosion IP65 Electronic Load Cell , 800kg Strain Gauge Load Cell 1





Packaging & Shipping



Packing



Standard export package: each unit has individual box and all boxes are packed in standard packages.



Shipping

Products are shipped from china. We will sent out within 15 working days after the payment. We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.



Our Services



Service standards: we are committed to provide a high quality and responsive service to all clients

The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.

Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.

Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business

OEM available
