| Place of Origin: | china |
|---|---|
| Brand Name: | ruijia |
| Model Number: | RJ-6512 |
| Minimum Order Quantity: | 1pc |
| Price: | USD3-10/pc |
| Packaging Details: | Product packed in foam box with bubble bag. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | Western Union, MoneyGram |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Usage: | Pressure Sensor | Capacity: | 3-50kg |
|---|---|---|---|
| Dimension (mm): | 80*12.7*12.7mm | Comprehensive Error (%F.S): | ±0.05 |
| Ultimate Overload (%F.S): | 150 | Accuracy: | C2 / C3 |
| Excitation Voltage (V): | 5-10(DC) | Application: | Postal Scales, Kitchen Scales,fishing Scales Etc. |
| High Light: | beam type load cell,digital load cell |
||
Features:

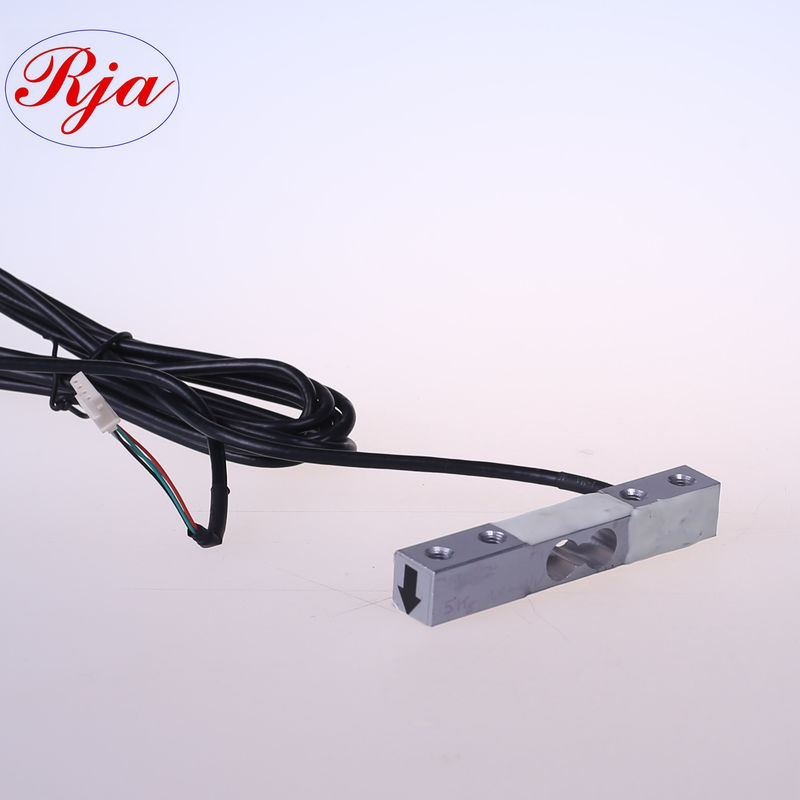

Micro load cell can be applied in kitchen scales, postal scales, another micro electronic weighting systems.
Dimension:
Product Show:
Specifications:
| Item | Specification |
| Range | 0.5~25kg |
| Precision | 0.05%F.S |
| Sensitivity | 1.0±0.15mv/v |
| Non-linearity | 0.05%F.S |
| Hysteresis | 0.02%F.S |
| Repeatability | 0.01&0.02%F.S |
| Creep | 0.05%F.S/3min |
| Zero balance | ±0.1mv/v |
| Input resistance | 1000±150Ω |
| Output resistance | 1000±10Ω |
| Insulation resistance | ≥2000MΩ |
| Excitation voltage | 5-10VDC |
| Use Temp .range | -10~40℃ |
| Temp. effect on zero | 0.05%F.S/10℃ |
| Temp. effect on span | 0.05%F.S/10℃ |
| Ultimate overload | 150%F.S |
| Position error | ±0.1%F.S |
| Wiring schematic diagram |
Input:+(red)-(Black) Output:+(green)-(white) |
| Cable | φ0.8×220mm |
Application
