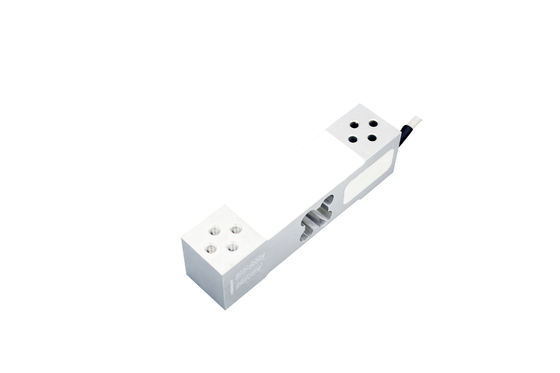

High Insulation Resistance Parallel Beam Load Cell Aluminum Alloy Material

Basic Information
Place of Origin: China
Brand Name: Ruijia
Model Number: RJ-6540
Detail Information
Temperature Effect On Output: ±0.02%/10°C Operating Temperature Range: -20°C~+80°C
Temperature Effect On Zero: ±0.02%/10°C Zero Balance: ±1%FS
Accuracy: ±0.02 Insulation Resistance: ≥5000 M Ω
Output Impedance: 350±5Ω Material: Aluminum Alloy
High Light:

Insulation Resistance Parallel Beam Load Cell


100VDC Platform Scale Load Cell


Aluminum Alloy Beam Load Cell Sensor

Product Description

Product Description:

Our Parallel Beam Load Cell is a platform scale load cell, designed for weighing systems. It features a robust construction, with an output impedance of 350 ± 5 Ω, insulation resistance of ≥5000 M Ω, creep of ±0.02%/15min, and an input impedance of 306 ± 2 Ω. It has a wide operating temperature range of -20°C to +80°C, making it suitable for use in a variety of weighing applications. This Parallel Beam Load Cell is a reliable and versatile choice for a range of platform scale and weighing system projects.



  • Product Name: Parallel Beam Load Cell
  • Output: 2mV/V
  • Compensated Temperature Range: -10°C~+60°C
  • Accuracy: ±0.02
  • Protection: IP65
  • Insulation Resistance: ≥5000 M Ω


The Ruijia RJ-6540 Single Point Load Cell is a parallel beam load cell made in China. It features an insulation resistance of ≥5000 M Ω, zero balance of ±1%FS, temperature effect on zero of ±0.02%/10°C, and a capacity of 50-500 Kg. This load cell can operate within a temperature range of -20°C to +80°C. It is the perfect choice for applications where accuracy and reliability is of utmost importance. This load cell is the perfect choice for weight measurement systems, such as crane scales, hoppers, and truck scales. It is also suitable for medical and laboratory equipment, as it is able to deliver accurate results in a wide range of temperatures.

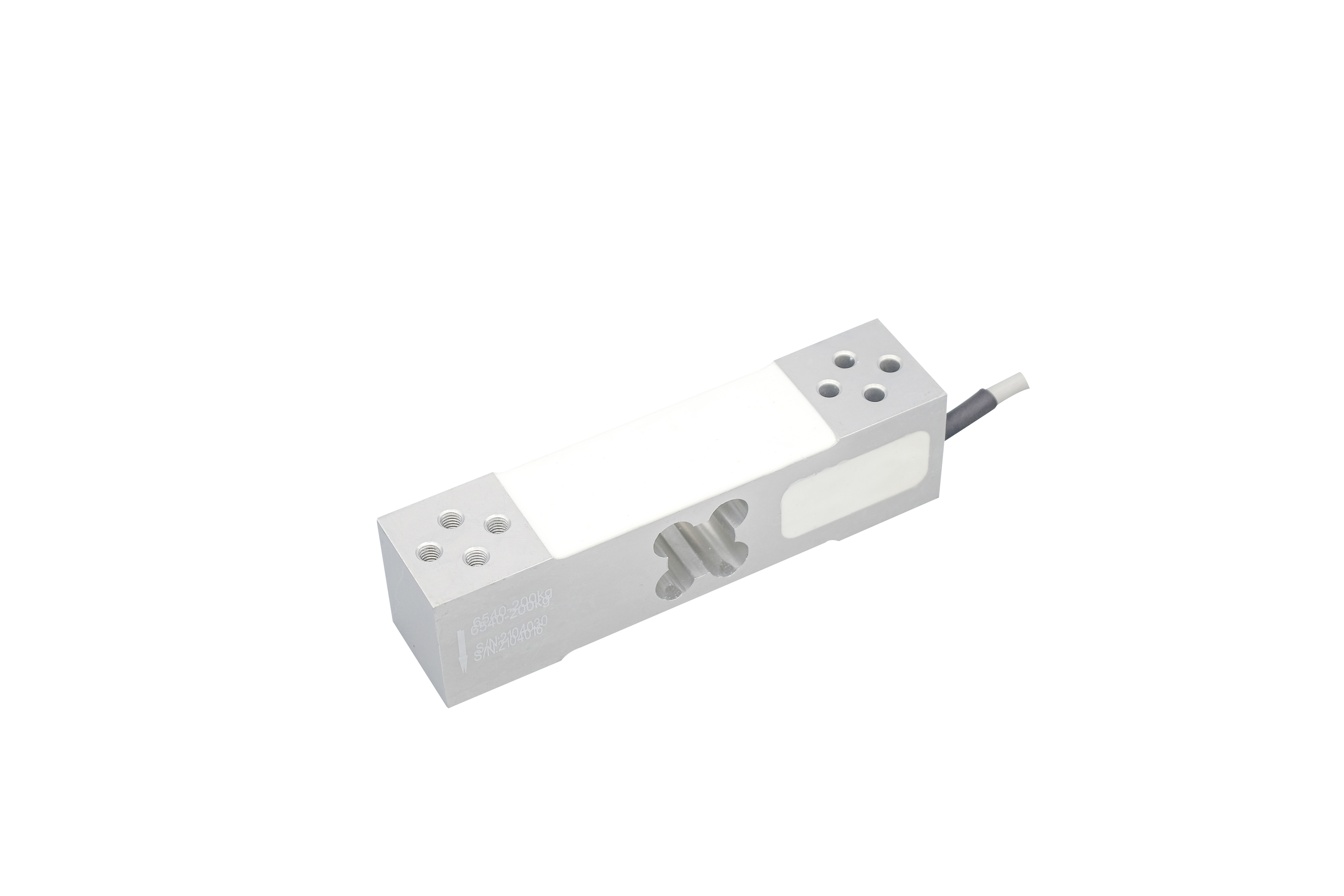

High Insulation Resistance Parallel Beam Load Cell Aluminum Alloy Material 0

Technical Parameters:


Capacity Kg 50/100/150/200/250/350/500
Sensitivity mV/V 2.0±0.2


Creep(15min) %FS ±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ ±0.02
Temperature Effect on Zero %FS/10℃ ±0.02
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф5
Cable length m 2
Material   Aluminum Alloy




































Support and Services:

Parallel Beam Load Cell Technical Support and Service

Parallel Beam Load Cell provides technical support and service for customers around the world. Our team of experts is available to answer any of your questions, provide guidance and offer solutions to ensure the best performance of your Parallel Beam Load Cell.

Technical Support

Our technical support team is available to troubleshoot any technical issues you may have with your Parallel Beam Load Cell. Our experts are knowledgeable in all aspects of the product, and can help you find the best solution for any issue.

Product Service

We also offer product service, which includes repairs, maintenance, and replacements. Our experienced technicians can provide a range of services to ensure your Parallel Beam Load Cell is in top condition.

Customer Care

At Parallel Beam Load Cell, customer care is our top priority. We strive to provide the best customer service experience possible, and are available 24/7 to answer any of your questions or concerns.


Packing and Shipping:

Packaging and Shipping for Parallel Beam Load Cell

Parallel Beam Load Cell is packaged in protective plastic casing that is securely sealed and contains an individual serial number.

It is shipped securely in a cardboard or wooden box, depending on the size and weight of the product. The box is cushioned with foam or other material to ensure protection from damage during transit.

The box is labeled with the product name, serial number, and destination address. The box is then placed in a larger box or pallet for shipment.
