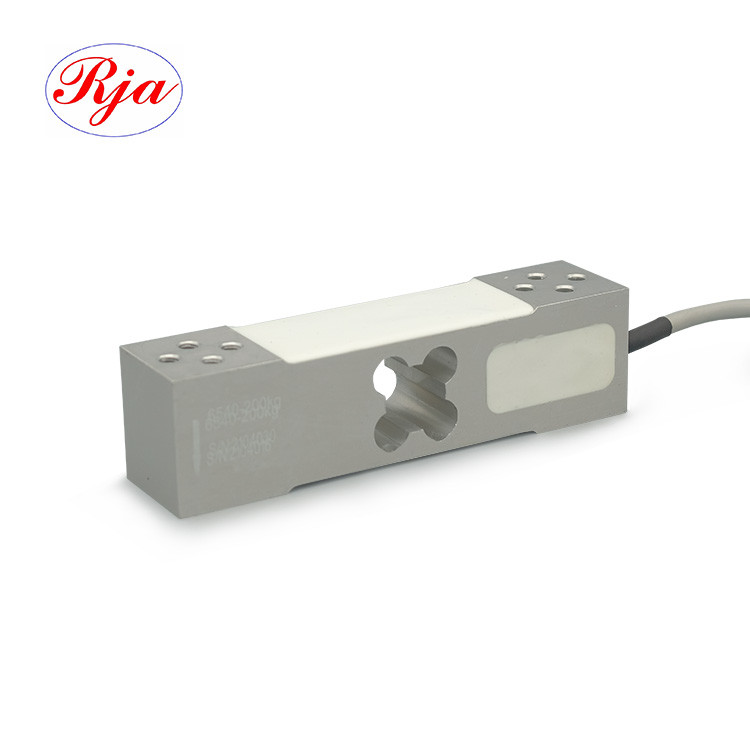

High Precision Parallel Beam Load Cell With Zero Balance And Input Impedance

Basic Information
Place of Origin: China
Brand Name: Ruijia
Model Number: RJ-6540
Price: USD 6/piece
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C
Detail Information
Product Name: Parallel Beam Load Cell Capacity: 50-500 Kg
Temperature Effect On Zero: ±0.02%/10°C Output Impedance: 350±5Ω
Compensated Temperature Range: -10°C~+60°C Input Impedance: 306±2Ω
Protection: IP65 Material: Aluminum Alloy
High Light:

IP65 Single Point Load Cell Sensor


High Precision Parallel Beam Load Cell


Parallel Beam Weighing Scale Sensor 50kg

Product Description

Product Description:

Parallel Beam Load Cell, also known as Single Point Load Cell, is an ideal force-measuring device for weighing systems. It is designed for applications where accuracy and reliability are paramount. It is a robust and reliable solution for weighing platforms, hoppers, tanks, and other industrial applications. The Parallel Beam Load Cell is made from an aluminum alloy to provide superior strength and durability. It is designed with a temperature effect on zero of ±0.02%/10°C, protection rating of IP65 and creep of ±0.02%/15min. It is available in capacities ranging from 50 to 500 Kg. This load cell is suitable for industrial applications where accuracy and reliability are needed. With its robust design, it can withstand harsh conditions and is suitable for use in the toughest of environments.



  • Product Name: Parallel Beam Load Cell
  • Material: Aluminum Alloy
  • Compensated Temperature Range: -10°C~+60°C
  • Operating Temperature Range: -20°C~+80°C
  • Temperature Effect on Zero: ±0.02%/10°C
  • Input Impedance: 306±2Ω

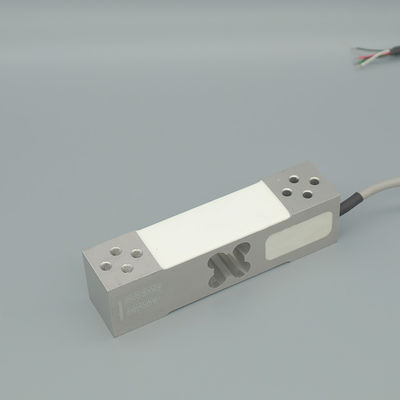

High Precision Parallel Beam Load Cell With Zero Balance And Input Impedance 0


Technical Parameters:


Capacity Kg 50/100/150/200/250/350/500
Sensitivity mV/V 2.0±0.2


Creep(15min) %FS ±0.02
Input Resistance Ω 406±20
Output Resistance Ω 350±5
Insulation Resistance M Ω ≥5000(100VDC)
Zero Balance %FS ±1
Temperature Effects on Span %FS/10℃ ±0.02
Temperature Effect on Zero %FS/10℃ ±0.02
Rated Temperature Range -10~+60
Operating Temperature Range -20~+80
Proposed Excitation Voltage V 5~12
Allowed Excitation Voltage V 18
Safe Overload %FS 120
Ultimate Overload %FS 150
Protection   IP65
Cable specification mm Ф5
Cable length m 2
Material   Aluminum Alloy



































Support and Services:

Parallel Beam Load Cells provide accurate, reliable, and precise measurements for a variety of industrial, commercial, and agricultural applications. Our experienced team of technical support specialists are available to help you with your product selection, installation, calibration, and maintenance.

Product Selection

Packing and Shipping:

Parallel Beam Load Cells are packaged in sturdy cardboard boxes designed for safe and secure transport. They are securely packed to withstand rough handling, vibration, and other disturbances. All components are labeled clearly and in compliance with international standards.

The Parallel Beam Load Cells are shipped by air, land, or sea. We ship to all major countries at competitive rates. During shipping, all products are tracked and monitored to ensure safe and timely delivery.
