| Place of Origin: | China |
|---|---|
| Brand Name: | Ruijia |
| Model Number: | RJ-6540-M12 |
| Insulation Resistance: | ≥5000 M Ω | Output Impedance: | 350±5Ω |
|---|---|---|---|
| Operating Temperature Range: | -20°C~+80°C | Capacity: | 50-500 Kg |
| Input Impedance: | 306±2Ω | Output: | 2mV/V |
| Material: | Aluminum Alloy | Product Name: | Parallel Beam Load Cell |
| High Light: | 500kg Parallel Beam Load Cell,Industrial Weighing Load Cell Sensor |
||

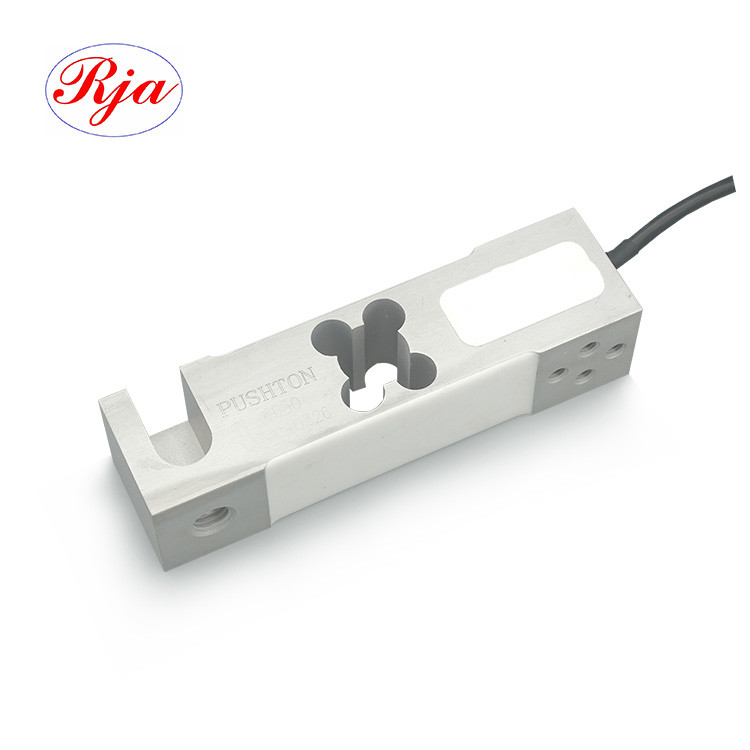

Parallel Beam Load Cell is a type of single point load cell, which is widely used in platform scales and other weighing systems. It is composed of a strong aluminum alloy material that is capable of withstanding high loads. It has an output impedance of 350 ± 5Ω, zero balance of ± 1%FS, input impedance of 306 ± 2Ω, and insulation resistance of ≥5000 M Ω. In addition, its protection level is IP65, which ensures its high reliability and durability in harsh environments.
The Parallel Beam Load Cell offers superior performance and accuracy for weighing applications. It is designed to be sensitive to low loads and features a wide operating temperature range. Its robust construction makes it suitable for a variety of platform scales and other weighing systems. Furthermore, its exceptional accuracy and reliability make it an ideal choice for high-precision weighing systems.
In conclusion, the Parallel Beam Load Cell is a reliable and accurate single point load cell that is suitable for a variety of weighing systems. It features high output impedance, zero balance, input impedance, insulation resistance, and protection level, which make it suitable for various industrial applications.
| Capacity | Kg | 50/100/150/200/250/350/500 |
| Sensitivity | mV/V | 2.0±0.2 |
| Accuracy |
±0.02 |
|
| Creep(15min) | %FS | ±0.02 |
| Input Resistance | Ω | 406±20 |
| Output Resistance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ±1 |
| Temperature Effects on Span | %FS/10℃ | ±0.02 |
| Temperature Effect on Zero | %FS/10℃ | ±0.02 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 5～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | IP65 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 2 |
| Material | Aluminum Allo |
At XYZ, we offer technical support and service for our Parallel Beam Load Cell product. Our team of dedicated engineers are available to provide assistance and guidance on any queries you may have. Whether it's a simple installation question or a complex problem, we are here to help.
We provide an online platform for customers to submit inquiries and questions about our Parallel Beam Load Cell product. Our customer service team is available to answer any queries you may have and provide technical support if needed. We also offer a range of additional services, including installation, maintenance, and troubleshooting.
We are committed to providing excellent customer service and technical support for our Parallel Beam Load Cell product. Our team of experienced engineers and technicians are available to help with any inquiries you may have. If you need assistance, please don't hesitate to contact us.
Parallel Beam Load Cell Packaging and Shipping:
Parallel Beam Load Cells are packaged with a hard plastic shell for extra protection. The product is then sealed in a moistureproof bag and placed in a corrugated cardboard box. The top and bottom of the box are cushioned with foam or cardboard to prevent the product from any damage. The box is then wrapped with a heavy-duty stretch film and labeled with the product name, quantity and destination.
Parallel Beam Load Cells are shipped via air, sea, and land. Customers can choose which option is best for them based on delivery time and cost. All shipments are tracked and insured to ensure timely and secure delivery.
