|Theory:||Resistance Sensor||Output:||Analog Sensor|
|Ultimate Overload (%F.S):||150||Accuracy:||C2/ C3|
|Excitation Voltage (V):||3-10VDC||Application:||Postal Scales, Kitchen Scales,fishing Scales Etc.|
|Rated Capacity:||3-75kg||Rated Output-HALF BRIDGE:||0.8±0.15mV/V|

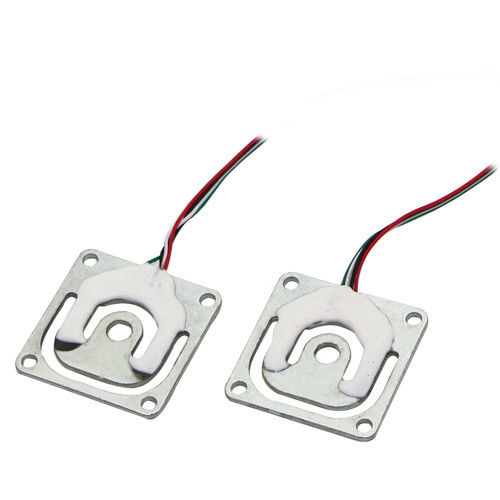

Resistance Micro Weight Sensor Half Bridge,
Alloy Steel Micro Load Cell Sensor,
10VDC Micro Force Sensor
Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas.
Micro load cell can be applied in kitchen scales, postal scales, another micro electronic weighting systems.
|Rated output- FULL BRIDGE:||
|Temp. effect on span||0.1%F.S/10℃|
|Rated output- HALF BRIDGE:||0.8±0.15mV/V||Temp. effect on zero||0.1%F.S/10℃|
|Comprehensive error||0.05%F.S||Input resistance||1000±10Ω|
|Hysteresis error||0.05%F.S||Excitation voltage||3-10VDC|
|Creep||0.05%F.S/10min||Compensated temp. range||-10~+40℃|
|Zero balance||1±0.1%F.S||Defend grade||IP66|
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
Q:What are the applications of micro load cell?
A:Kitchen scales, human scales, vending machines, unmanned supermarkets, hanging scale, etc.
Q:What is half bridge and full bridge?
A: Half bridge has 3 wires, 4 pieces in 1 set. Full bridge has 4 wires, it can be used alone.
Q: What is wire meaning?
A: Red: E+, Black: E-, Green: S+, White: S-
Q: What is the accuracy for micro load cell?
A: 0.05%, 0.1%, 0.2%
Q: Can micro load cell connect with amplifier/transmitter?
A: NO. The micro resistance is about 1000Ω, the transmitter can connect with 350Ω-700Ω load cells.
