Elevator Overload strain gauge Load Cell / High Precision Load Cell 60kg Capacity

Basic Information
Place of Origin: China
Brand Name: ruijia
Model Number: RJ-9210
Minimum Order Quantity: 1pc
Price: USD8-25/pc
Packaging Details: Standard export packaging
Delivery Time: 2-4 weeks
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 5000 Piece/Pieces per Month
Detail Information
Type: Elevator Parts Capacity: 60kg
Excitation: 5-12VDC Operating Temperature: -20~60℃
Ultimate Overload: 200%F.S Action Error: ≤1%F.S
Protection Class: IP65 Alarm Output: AC250V/7A
High Light:

alloy steel load cell

,

weighing scale load cell


Product Description

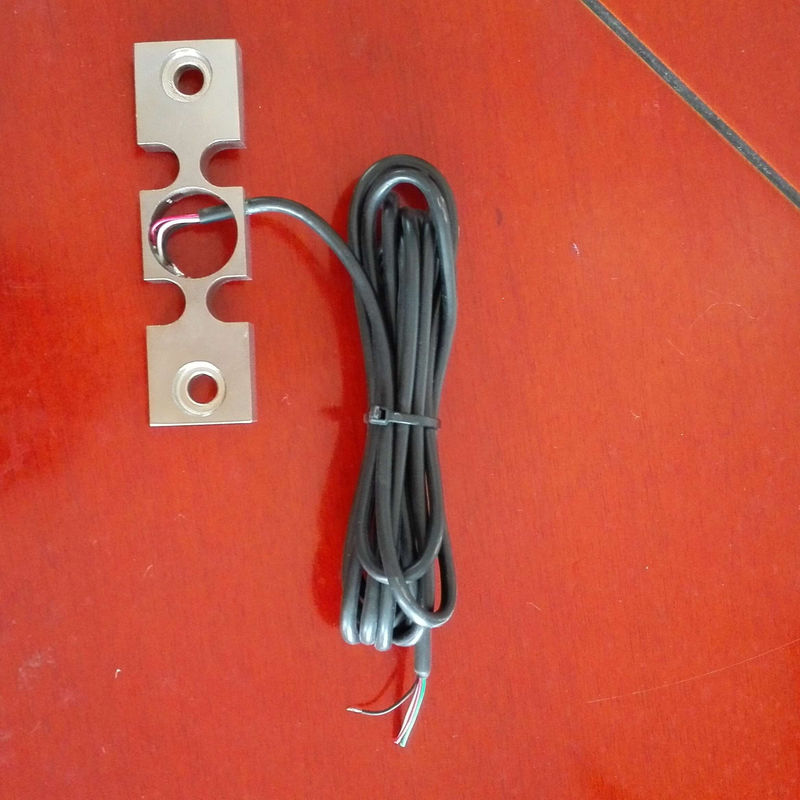

Elevator Overload strain gauge Load Cell / High Precision Load Cell 60kg Capacity



What is load cell?



Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.



Product Features:



1. Elastomer for aluminum alloy material

2. Suitable for elevator overload weighing system.

3. The sensor can be used independently.



Technical parameters:



Parameters
comprehensive error: 0.05%FS output resistance: 350±5Ω
Rated output: 2.0±0.15mv/v Insulation resistance: ≥5000MΩ(50VDC)
Non-linearity: 0.1%FS Excitation voltage: 3~15VDC
Hysteresis: 0.1%FS compensated temp: -10~+40℃
Repeatability: 0.1%FS use temperature: -20~+80℃
Creep: 0.02%FS/10MIN temp effect on zero: 0.02%FS/10℃
Zero balance: ±1%FS Temp effect on span: 0.02%FS/10℃
Input resistance: 510±10Ω defend grade: IP65





























How about  Elevator overload sensor dimension?



Elevator Overload strain gauge Load Cell / High Precision Load Cell 60kg Capacity 0



Installation:



Elevator Overload strain gauge Load Cell / High Precision Load Cell 60kg Capacity 1



FAQ



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.

4. When will you arrange the production?

We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.



Packing



Standard export package: each unit has individual box and all boxes are packed in standard packages.



Shipping



Products are shipped from china. We will sent out within 15 working days after the payment. We usually sendthe parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.
