Single Shear Beam Load Cells For Industrial Scales hand pallet truck

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

Capacity:

100kg-10,000kg

Combined Error::

±0.02

Rated Output::

2mv / 3mv/v±0.003

Output Resistance::

350±5

Defend Grade:

IP68

Cable Length::

3 Meters -10 Meters

Highlight:

High Light

Highlight:

single shear beam load cell

industrial scale load cell

hand pallet truck load cell

Trading Information

Minimum Order Quantity:

Price:

USD5 ~45/piece

Packaging Details:

Standard export packaging

Delivery Time:

5-8 Work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Month

Product Description

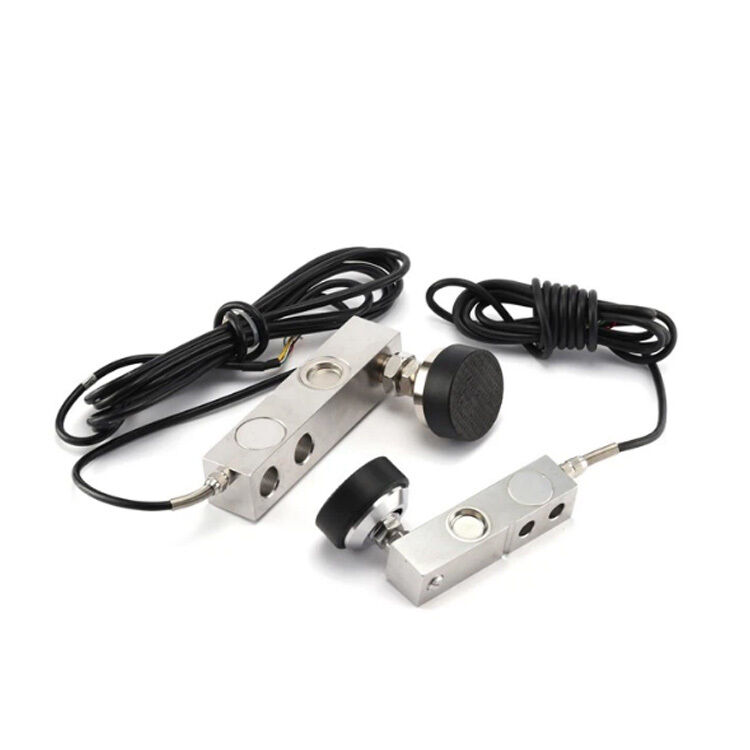

Single Shear Beam Load Cells For Industrial Scales hand pallet truck

Features:
Single Shear Beam Load Cell, Capacity range from 100kg to 10,000kg
Material: Alloy Steel or Stainless Steel, High quality, high accuracy OIML standard, low costs,
Laser Sealed, Water Proof to IP68, Anti corrosion.
APPLICATIONS: Floor scales, platform scales, weigh bridge,hand pallet truck and other weighing devices.

Dimensions:(mm)

Single Shear Beam Load Cells For Industrial Scales hand pallet truck 0

Capacity	L	L1	L2	L3	L4	d	B	M
1~4(klb) 0.5~2(t) 5KSE	130	56.5	15.8	25.4	76.2	13.5	31.8	M16X2 M12X1.75 1/2-20UNF
5~10(klb) 2.5~5(t)	171.5	77.2	19.1	38.1	95.3	20	38.1	M18X1.5 3/4-16UNF
20(klb) 10(t)	222.3	101.6	25.4	50.8	120.7	26.2	50.8	M24x2 1-12 UNF

SPECIFICATION:
Precision:		C3
Combined Error:		±0.02
Rated Output:		2mv / 3mv/v±0.003
Creep(%F.S/30min):		±0.02
Non-linearity(%F.S)		±0.02
Hysteresis:(%F.S)		±0.02
Zero balance(%F.S):		±1.0
Input resistance:		350±5
Output resistance:		350±5
Insulation resistance:		≥5000(100VDC)
Temp. effect on span(%F.S/10℃):		±0.017
Temp. effect on zero(%F.S/10℃):		±0.02
Use temp. range(℃):		-20～+55
Excitation voltage(V):		9～12(DC)
Safety overload (%F.S)		150%
Ultimate overload (%F.S)		200%
Defend grade		IP68
Cable Length:		3 meters -10 meters
Wire Connection Method
RED=EXC+	BLACK=EXC-	GREEN=Signal+	WHITE=Signal-
