Keli SQB IP68 Beam Load Cell For Truck Scale / Electronic Scale 500kg - 10ton

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-9810
Minimum Order Quantity: 1pc
Price: USD13-40/pc
Packaging Details: Product packed in foam box with bubble bag
Delivery Time: 2-4weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Usage: Pressure Sensor Theory: Resistance Sensor
Capacity: 500kg-10ton Comprehensive Error (%F.S): ≤±0.02%F.S
Application: Truck Scale, Electronic Scale And Other Weighing Devices Safe Overload (%F.S): 150
Material: Alloy Steel Or Stainless Steel Optional Internal Transmitter: 4-20mA Or 0-5V Output
High Light:

truck scale load cells

,

compression type load cell


Product Description

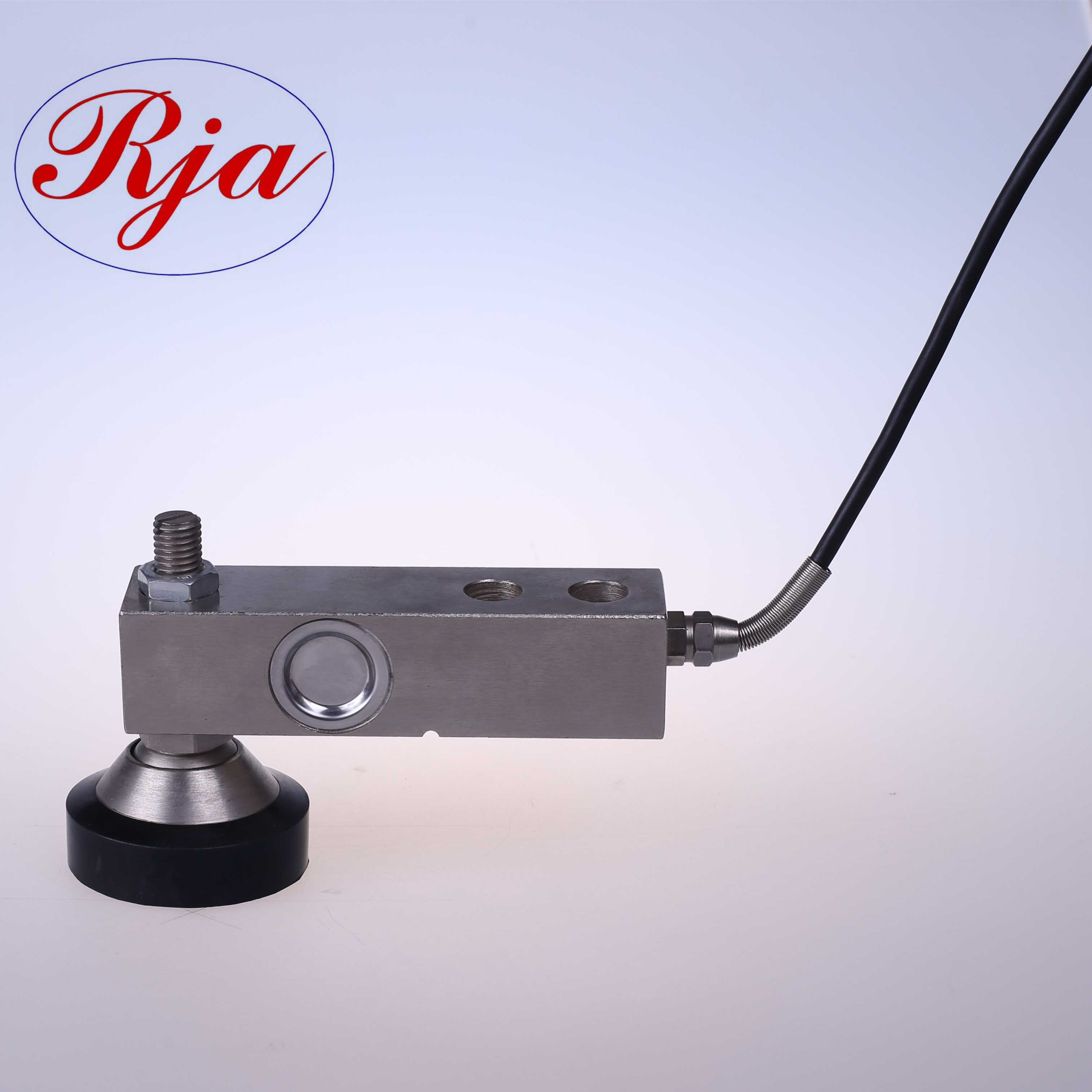

Keli SQB IP68 shear beam load cell OIML C3 approval 500KG to 10 ton



♦ Made of alloy steel or stainless steel

♦ Suitable for truck scale, electronic scale and other weighing devices

♦ Optional internal transmitter for 4-20mA or 0-5V output



What advantages of forklift scale shear beam load cell 3 ton?



Rated load



100 200 300 500 1000 2000 3000kg/10000kg can be customized

Accuracy class



C3

Rated output



2.0±0.004mV/V

Comprehensive error



≤±0.02%F.S

Creep



0.02%F.S/30min

Zero balance



±1.0%F.S

Temperature effect on sensitivity



0.016%F.S/℃

Temperature effect on zero



0.002%F.S/℃

Input resistance



365±10Ω

Output resistance



350±3Ω

Insulation resistance



≥5000MΩ(50VDC)

Excitation voltage



5~12VDC

Compensated temp.range



-10~+40℃

Use temp.range



-35~+80℃

Safe overload



150%

Ultimate overload



200%

Load cell material



Alloy steel

Defend grade



IP67

Cable



Φ5.7mm*2m



What dimension of forklift scale shear beam load cell 3 ton?



GSB205



Detailed Images



What details of forklift scale shear beam load cell 3 ton?



GSB205-



Application





What application of forklift scale shear beam load cell 3 ton?



GSB205-



FAQ



Q:What are the applications of shear beam load cell?

A: Platform scale, Animal weighing scale, Floor scale, Forklift scale, Tank weighing system, belt scale, batching scale, etc.



Q:What is the raw material?

A: Alloy steel



Q: What is the load range?

A: 0.1-10T



Q: What is the accuracy/precision?

A: C3 0.02%



Q: What is the IP protection rate?

A: IP66



Q: What is the wire meaning?

A: 5 wires (Red: E+, Black: E-, Green: S+, White: S-, Other color: ground)



Q: How to install?

A: 4 or more load cells connect with junction box, then the junction box connect with indicator.
