Shear Beam Load Cell
>

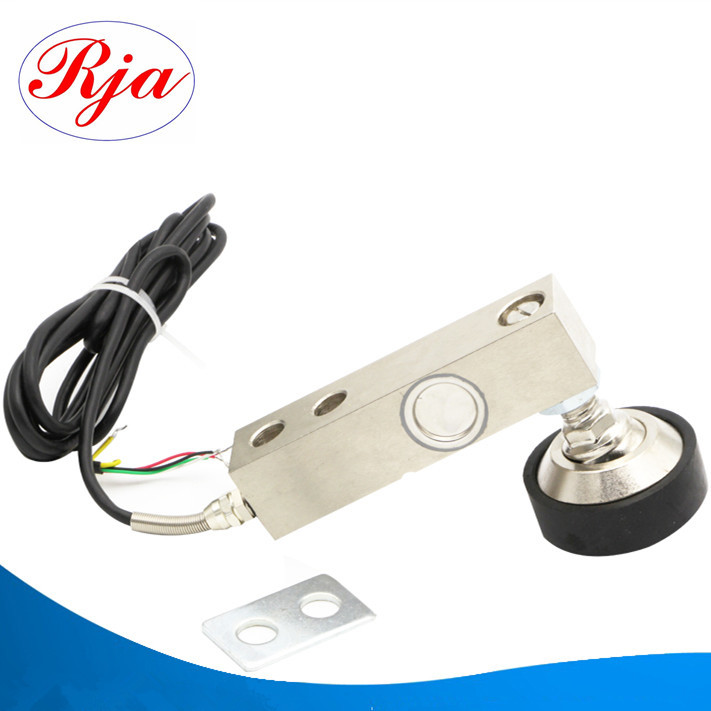

High Performance Shear Beam Load Cell For Different Weighing Devices

High Performance Shear Beam Load Cell For Different Weighing Devices

Product Details:
Place of Origin: china
Brand Name: ruijia
Model Number: RJ-9810
Detail Information
Place of Origin:
china
Brand Name:
ruijia
Model Number:
RJ-9810
Usage:
Pressure Sensor
Output:
Analog Sensor
Capacity:
500kg-10ton
Comprehensive Error (%F.S):
≤±0.02%F.S
Application:
Truck Scale, Electronic Scale And Other Weighing Devices
Excitation Voltage (V):
10(DC)
Material:
Alloy Steel Or Stainless Steel
Optional Internal Transmitter:
4-20mA Or 0-5V Output
High Light:

High Light

High Light:

double ended load cell

,

truck scale load cells

Trading Information
Minimum Order Quantity:
1pc
Price:
USD13-40/pc
Packaging Details:
Product packed in foam box with bubble bag
Delivery Time:
2-4weeks
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
10000 Piece/Pieces per Month
Product Description

1000KG 2000KG shear beam load cell single point ended cantilever weighing scale system load cell



♦ Made of alloy steel or stainless steel

♦ Suitable for truck scale, electronic scale and other weighing devices

♦ Optional internal transmitter for 4-20mA or 0-5V output



What advantages of forklift scale shear beam load cell 3 ton?



Rated load   100 200 300 500 1000 2000 3000kg/10000kg can be customized
Accuracy class   C3
Rated output   2.0±0.004mV/V
Comprehensive error   ≤±0.02%F.S
Creep   0.02%F.S/30min
Zero balance   ±1.0%F.S
Temperature effect on sensitivity   0.016%F.S/℃
Temperature effect on zero   0.002%F.S/℃
Input resistance   365±10Ω
Output resistance   350±3Ω
Insulation resistance   ≥5000MΩ(50VDC)
Excitation voltage   5~12VDC
Compensated temp.range   -10~+40℃
Use temp.range   -35~+80℃
Safe overload   150%
Ultimate overload   200%
Load cell material   Alloy steel
Defend grade   IP67
Cable   Φ5.7mm*2mm



What dimension of forklift scale shear beam load cell 3 ton?





GSB205




Detailed Images



What details of forklift scale shear beam load cell 3 ton?



GSB205-



Application



What application of forklift scale shear beam load cell 3 ton?



GSB205-



What process flowchart of forklift scale shear beam load cell 3 ton?





High Performance Shear Beam Load Cell For Different Weighing Devices 3



Packaging & Shipping



♦ Multiple Packaging Protection: Professional packaging material and rigorous packaging operation.

♦ Multiple Transportation way: Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping for your choose.



ASIAN EUROPE AMERICA AFRICA OCEANIA
3-5 working days 5-7 working days 3-5 working days 7-10 working days 4-6 working days



GSB205
