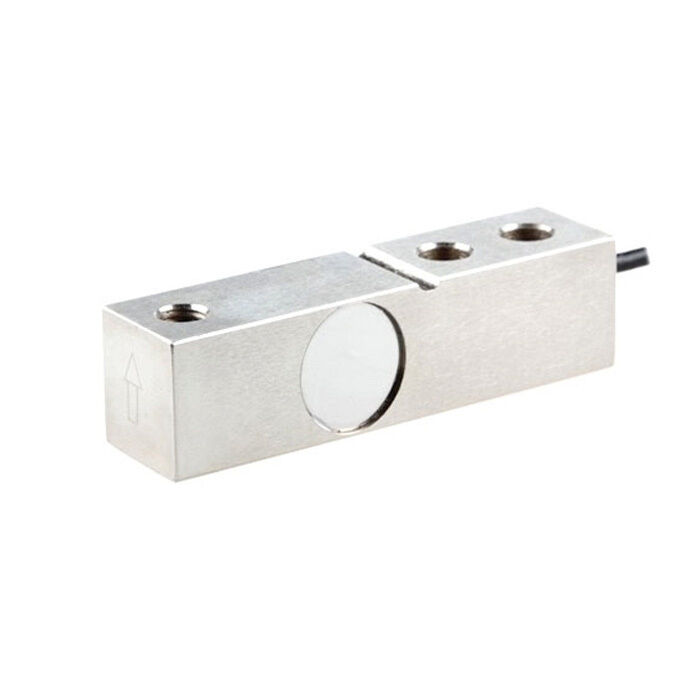

Beam Load Cell, 200kg/500kg/1000kg/3 ton/5 ton to 10 ton
After purchasing one RJ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.
Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.
Cantilever beam load cells have capacity range from 200kg, 500kg, 1000kg, 3 ton, 5 ton to 10 ton. Load cell capacity can be customized according to customer requirements.
Specification
| Model |
RJ |
| Shipping Weight |
1.1~5kg |
| Capacity Range * |
200 kg~10 ton |
| Matched Display Controller |
(Click it to the controller page) |
| Matched Transmitter |
(Click it to the transmitter page) |
| Accuracy |
0.02%F.S (linearity + hysteresis + repeatability) |
| Sensitivity |
2.0±0.1mV/V |
| Creep |
±0.02%F.S/30min |
| Zero Output |
±1%F.S |
| Temperature Effect on Zero |
±0.02%F.S/10℃ |
| Temperature Effect on Output |
±0.02%F.S/10℃ |
| Operating Temperature |
-20℃~+65℃ |
| Input Impedance |
380±10Ω |
| Output Impedance |
350±3Ω |
| Insulation Resistance |
≥5000MΩ |
| Safety Overload |
150%F.S |
| Bridge Voltage (excitation voltage) |
DC 10V |
| Material |
Alloy steel or stainless steel |
| Protection Class |
IP67 |
| Cable Length |
3m (＜5 ton), 6m (≥5 ton) |
| Wiring |
EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White |
Feature
- Easy Installation: Designed with one fixed end and one loaded end for simple, quick setup.
- Low Center of Gravity: Enhances stability and ensures accurate measurements.
- Versatile & Interchangeable: High compatibility, suitable for various systems with excellent interchangeability.
- Wide Application: Ideal for vehicle scales, electronic scales, platform scales, hopper scales, and more.
- Durable & Reliable: Strong construction for heavy load capacity, ensuring long-lasting, dependable performance in industrial settings.
Dimension
| Capacity |
Dimension (mm) |
| L |
L1 |
L2 |
L3 |
L4 |
H |
Φ |
M |
W |
| 200kg~2.5 ton |
130 |
15.8 |
25.4 |
76.2 |
54 |
31.8 |
12.7 |
M12 (<1 1000kg)
M16 (≥1 1000kg) |
31.8 |
| 3~5 ton |
171 |
19.1 |
38.1 |
95.3 |
80 |
38.1 |
20 |
M18*1.5 |
38.1 |
| 10ton |
222.5 |
25.4 |
50.8 |
123.8 |
110 |
50.8 |
26 |
M24*2 |
50.8 |
Application
Tips: Can I use Cantilever Beam Load Cells for weighing liquids or gases?
While Cantilever Beam Load Cells are ideal for solid objects, they can also be used for measuring forces associated with liquid or gas containers, such as pressure or weight in tanks, provided they are part of the structure supporting the container.
