Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

Production Process:

Normal Wirewound

Output Signal Type:

Analog Type

Out-Wire:

4-Wire

Feature:

Low Temperature Resistant

Certification:

RoHS

IP Rating:

IP65

Highlight:

High Light

Highlight:

Alloy Steel Cantilever Beam Sensor

1t Shear Beam Load Cell

Keli Force Sensor Replacement

Trading Information

Minimum Order Quantity:

Price:

USD12 ~100/piece

Packaging Details:

Standard export packaging

Delivery Time:

5-8 Work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

2000 Piece/Pieces per Month

Product Description

Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor

Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor 0

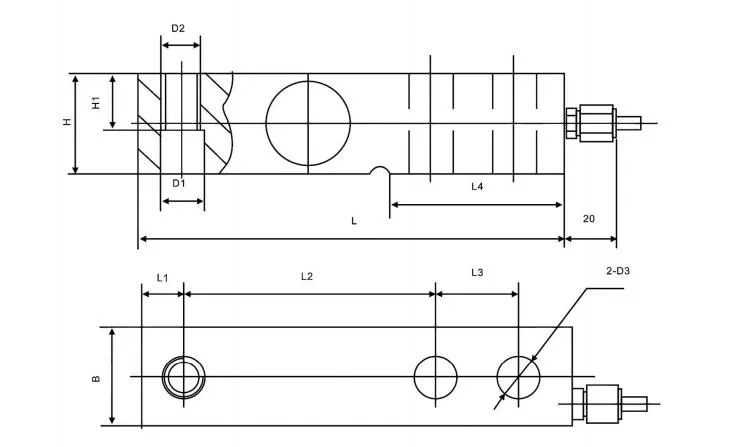

Product size drawing

capacity	L	L1	L2	L3	L4	H/B	H1	D	D2	D3
0.5T~3T	130	12.7	76.2	25.4	57	31.8	15.9	Φ18	M16*1.75	Φ18
3T~5T	171.5	19	95.3	38.1	72.5	38.1	26	Φ20	M20*1.5	Φ20
7.5T~10T	222.5	25.3	124	50.8	10.2	50.8	25.4	Φ27	M24*2	Φ27

Product parameter list

capacity	T	0.5~10T
Rated Output	mv/v	2.0/3.0±0.2
Non-linearity	%F.S	0.03
Hysteresis	%F.S	0.03
Repeatability	%F.S	0.03
Creep	%F.S/3min	0.03
Temp.effect on zero	%F.S/10ºC	0.03
Temp.effect on span	%F.S/10ºC	0.03
Zero balance	mv/v	±0.03
Input impedance	Ω	380±20
Output impedance	Ω	352±5
Insulation resistance	MΩ	≥5000(100VDC)
Recommended excitation voltage	VDC	5~12
Allowed excitation voltage	VDC	5~15
Compensated temp.Range	ºC	-10ºC~+40ºC
Operating temp.Range	ºC	-20ºC~+60ºC
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: Red:+ Black:-
Connection	Signal: Green:+ White:-

Company Information

Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor 2

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages

1, Professional	17+years industrial experience,Know your needs quickly
2, Wide Product Variety	include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence	we can also customize replacement to the same specifications as the brand you need
4, Good service	If you have any question,Welcome to feel free to contact
