Micro Tension Sensor Stainless Steel Weighing Tension Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

Output Signal Type:

Analog Type

Production Process:

Normal Wirewound

IP Rating:

IP65

Out-Wire:

4-Wire

Material:

Stainless Steel

HS Code:

9031809090

Highlight:

High Light

Highlight:

stainless steel tension sensor

S type load cell

weighing tension sensor

Trading Information

Minimum Order Quantity:

Price:

USD20 ~100/piece

Packaging Details:

Standard export packaging

Delivery Time:

5-8 Work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Month

Product Description

Micro Tension Sensor Stainless Steel Weighing Tension Sensor

Micro Tension Sensor Stainless Steel Weighing Tension Sensor 0

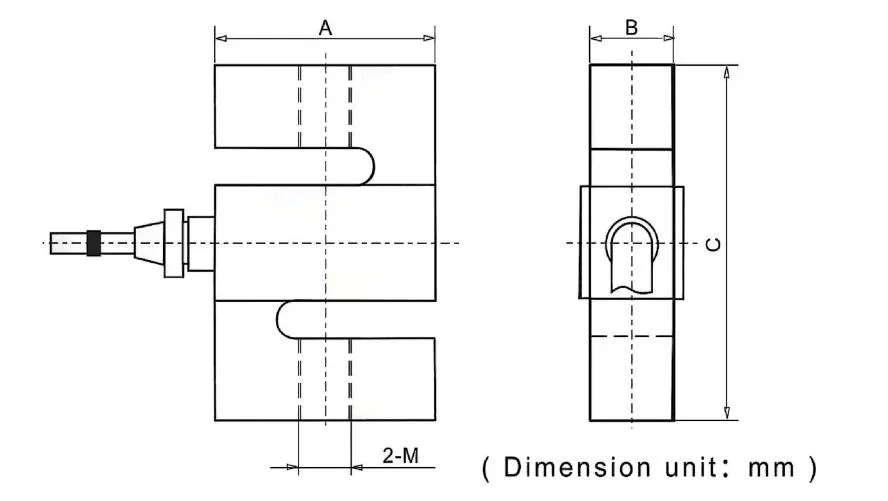

Product size drawing

capacity	A	B	C	M
10kg~30kg	50.8	12.7	64	M8
50kg~300kg	50.8	19.1	76.2	M12*1.75
500kg~2000kg	50.8	25.4	76.2	M121.75/M162
2000kg~5000kg	76.2	25.4	108	M18*1.5

Product parameter list

capacity	kg	10~5000kg
Rated Output	mv/v	2.0±0.2
Non-linearity	%F.S	0.03
Hysteresis	%F.S	0.03
Repeatability	%F.S	0.03
Creep	%F.S/3min	0.03
Temp.effect on zero	%F.S/10ºC	0.03
Temp.effect on span	%F.S/10ºC	0.03
Zero balance	mv/v	±0.03
Input impedance	Ω	350±5
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000(100VDC)
Recommended excitation voltage	VDC	5~12
Allowed excitation voltage	VDC	5~15
Compensated temp.Range	ºC	-10ºC~+40ºC
Operating temp.Range	ºC	-20ºC~+60ºC
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: Red:+ Black:-
Connection	Signal: Green:+ White:-
