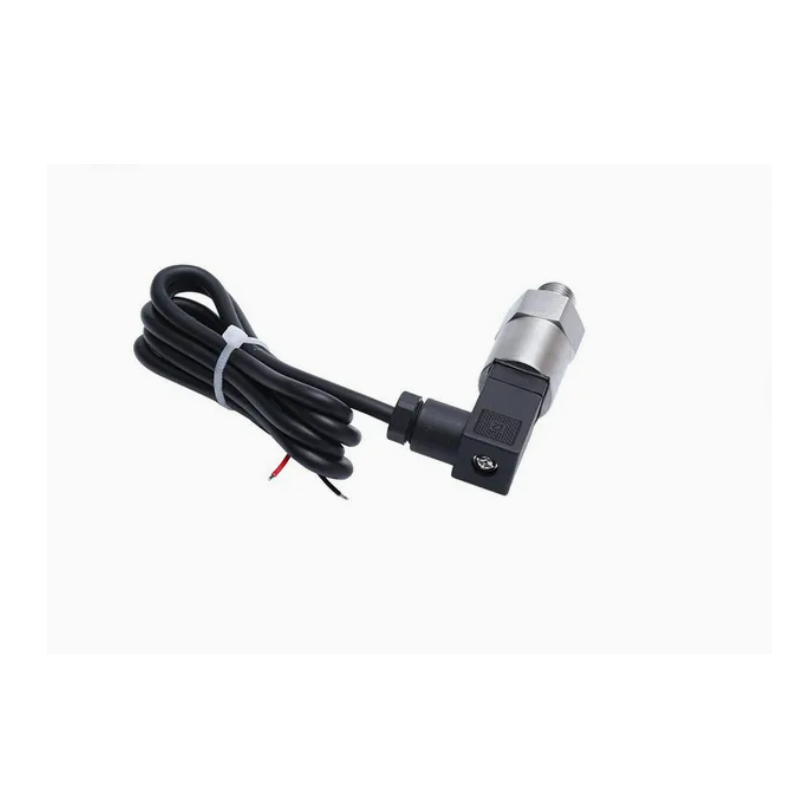

Pressure Tester Compact 4 20mA Thread Connection 0-0.1-10MPa Pressure Transmitter

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

Applicable Media:

Liquid, Gas

Pressure Type:

Gauge Pressure, Absolute Pressure,Sealing Pressure

Output:

4-20mA/0.5-4.5V/1 -5VI0-10V/I2c

Accuracy(Linearity,Hysteresis And Repeat:

0.5%F.S.(Typical)

Compensation Temperature:

-20~85°ºC

Ambient Temperature:

-40~125ºC

Highlight:

High Light

Highlight:

4-20mA pressure transmitter

thread connection pressure sensor

0-10MPa pressure tester

Trading Information

Minimum Order Quantity:

Price:

USD30~35/piece

Packaging Details:

Standard export packaging

Delivery Time:

5-8 Work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Month

Product Description

Pressure Tester Compact 4 20mA Thread Connection 0-0.1-10MPa Pressure Transmitter

Features:
It has a strong corrosion resistance
Good stability Integral structure, easy installation
Be suitable for a wide range of using
The range of medium temperature: -20ºC~80ºC
Adopting high precision components, it's will to work in the harsh environment.
Strong anti-interference design.
Support remote transmission.
Diffused silicon sensor and stainless steel case.

Applicable media	Liquid, Gas
Pressure Range	0-60bar
Pressure Type	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
0.5%F.S.(Typical)	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

Pressure Tester Compact 4 20mA Thread Connection 0-0.1-10MPa Pressure Transmitter 0
