2bar 10bar Gas Pressure Sensor / Water Liquid Pressure Sensor With 5 Digit LCD Display

Basic Information
Place of Origin: china
Brand Name: ruijia
Model Number: CAP-2088GW
Minimum Order Quantity: 1
Price: USD270
Packaging Details: Safe and environmentally friendly carton packing for Air Pressure Sensor
Delivery Time: 7 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000 Piece/Pieces per Month
Detail Information
Pressure Range: -0.1~0-0.02~100MPa Medium: Water, Gas, Oil Purity Medium
Power Supply: 12~36VDC Output: 4~20mA,0~5VDC,1~5VDC,0~10VDC Optional
Accuracy: 0.1,0.25,0.5% F.S Optional Pressure Type: Gauge (G), Absolute (A), Sealed Gauge (S)
Pressure Connector: M20X1.5,G1/2,G1/4,NPT1/2 Or Customized Ingress Protection: IP65
Overload Capacity: 150%F.S
High Light:

oil pressure sensor

,

fuel pressure sensor


Product Description

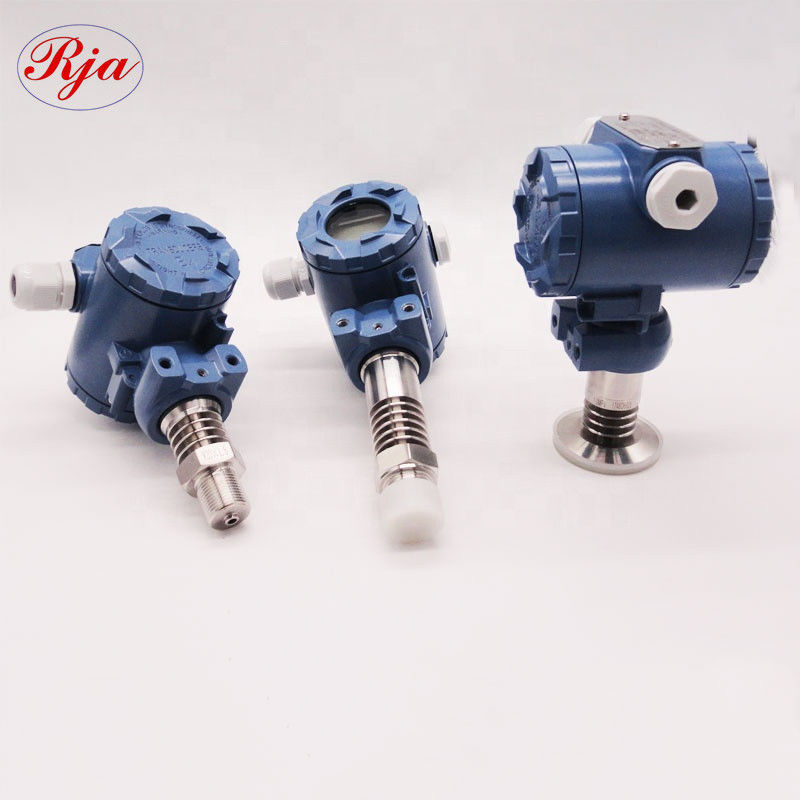

2bar 10bar Gas Pressure Sensor / Water Liquid Pressure Sensor With 5 Digit LCD Display

Introduction of the pressure sensor

GPT248 is a high precision, high stability intelligent pressure transmitter. Fully welded OEM oil-filled core and ADI-specific chips. With on-site display, data processing, zero point, full scale software adjustment function. 4-20mA output and RS485/ RS232 interface or Hart communication protocol.



♦Application

process control system
petroleum industry
chemical industry
electric power etc



2bar 10bar Gas Pressure Sensor / Water Liquid Pressure Sensor With 5 Digit LCD Display 0

Dimension

2bar 10bar Gas Pressure Sensor / Water Liquid Pressure Sensor With 5 Digit LCD Display 1



Attention



1. Product shall not be used to test mediums that not compatible with stainless steel;

2. Make sure power supply is conformed with power requirements of the probe, and positive and negative wiring connection correct. Ensure max pressure of the medium is in range of the product capacity;

3. During measurement, please exert or release the pressure slowly to prevent a high or low pressure occurred

in very short time;

4. In case of medium spout, disconnect the pressure source before probe disassembly.

5. To avoid damage caused by misusage, please DO NOT disassemble the product or touch the diaphragm.



Common faults and exclusion



Fault Cause Exclusion
No output

√ Transmitter no power



√ Wiring fault

Power the transmitter

according to wiring of manual

Output change irregularly

while pressure remain stable

√ Housing of the transmitter

is not grounded



√ Strong RFI on site



√ No shielding wire connected

Use shielding wire and

ground the shielding layer





Ground housing of the transmitter firmly

Output show incorrect value

before pressure source is connected

√ Transmitter is not working

under proper conditions

Change the site or

made conditions fit the product

Output do not show correct pressure value

√ Voltage of power supply

do not fit the product



√ Over external load

Adjust voltage of power supply

to 9-36VDC



Adjust external load





Ordering Code

2bar 10bar Gas Pressure Sensor / Water Liquid Pressure Sensor With 5 Digit LCD Display 2





Packing and shipping

>>Standard export package: each unit has individual box and all boxes are packed in standard packages;

>>As the clients requirement;



2bar 10bar Gas Pressure Sensor / Water Liquid Pressure Sensor With 5 Digit LCD Display 3





Our service

>>Ruijia products are 100% calibrated before the packaging and delivered with <<Calibration Certification>>.

>>The products are guaranteed free of production defects and the quality is guaranteed for 12 months from the shipment date.
