Digital Air Compressor Liquid Industrial General Water Compact Pressure Transmitter

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIJIA
Certification:	CE
Model Number:	RJ

Detail Information

Place of Origin:

CHINA

Brand Name:

RUIJIA

Certification:

Model Number:

Pressure Range:

0～1.5kPa

IP Rating:

IP65

Pressure Type:

Gauge Pressure, Absolute Pressure,Sealing Pressure

Output:

4-20mA/0.5-4.5V/1 -5VI0-10V/I2c

Accuracy(Linearity,Hysteresis And Repeat:

0.5%F.S.(Typical)

Compensation Temperature:

-20~85°ºC

Highlight:

High Light

Highlight:

digital air compressor pressure transmitter

industrial water pressure sensor

compact liquid pressure transmitter

Trading Information

Minimum Order Quantity:

Price:

USD30 ~35/piece

Packaging Details:

Standard export packaging

Delivery Time:

5-8 Work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Month

Product Description

Digital Air Compressor Liquid Industrial General Water Compact Pressure Transmitter

Features:
It has a strong corrosion resistance
Good stability Integral structure, easy installation
Be suitable for a wide range of using
The range of medium temperature: -20ºC~80ºC
Adopting high precision components, it's will to work in the harsh environment.
Strong anti-interference design.
Support remote transmission.
Diffused silicon sensor and stainless steel case.

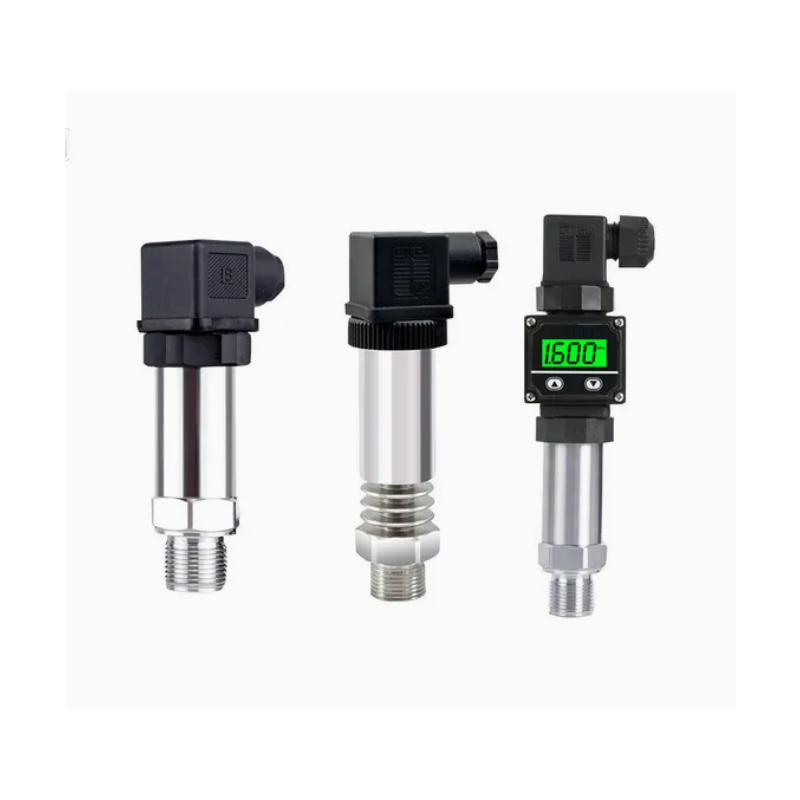

Digital Air Compressor Liquid Industrial General Water Compact Pressure Transmitter 0

Applicable media	Liquid, Gas
Pressure Range	0-60bar
Pressure Type	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
0.5%F.S.(Typical)	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

Company Profile

Digital Air Compressor Liquid Industrial General Water Compact Pressure Transmitter 1

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
