Industrial OEM CE ISO9001 -100KPa 100MPa Corrosion Resistant Hydrostatic Oil Water Pressure Sensor
Full welded seal, can be used in harsh environment
High performance, all solid, corrosion resistant
MEMS technology
High accuracy and stability
Strong anti-interference, good long-term stability
Constant current excitation option
Customization available
RJ11B is applicable to the standard housing support for instrumentation manufacturers and industries of columnar transmitters, 2088, E+H, etc. It is widely used in the process control and measurement in the industries including petroleum, chemical, metallurgy, aviation, aerospace, shipbuilding, medical equipment, vehicles, refrigerators, compressors, etc.
Caution

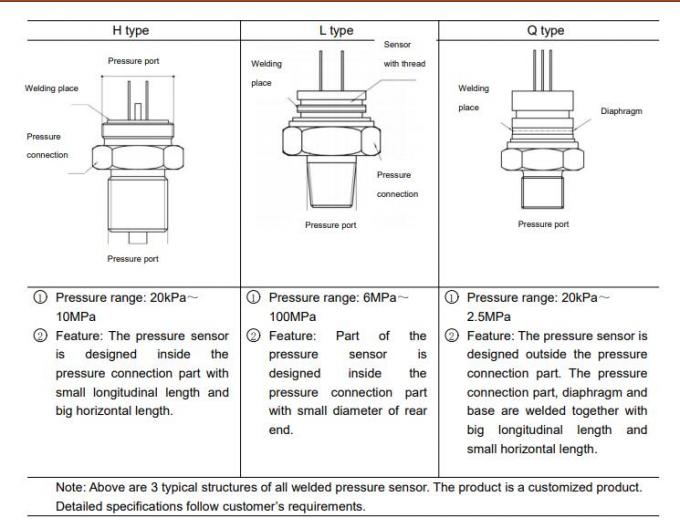

The sensor is welded with housing, so no leakage will happen. That is more reliable compared with O-ring sealing. But if the sensor has problem, the housing will be wasted.
Parameters
| Pressure range |
| Pressure range |
-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa |
| Pressure reference |
Gauge pressure | Absolute pressure | Sealed gauge pressure |
| Overpressure |
200%F.S.(<25MPa) | 150%F.S.(≥25MPa) |
| Output signal |
| Zero output |
±2mV |
| Span output |
1.5mA excitation: ≥40mV (≤35kPa); ≥60mV (Other ranges)
10V excitation: ≥60mV (≤35kPa); 80-120mV (Other ranges)
|
| Specification |
| Accuracy (linearity, repeatability and hysteresis) |
±0.25%F.S. (Typical) |
| Excitation |
1.5mA | 10VDC |
| Compensated temp. |
0℃-60℃ (≤35kPa) | -10℃-70℃ (Other ranges) |
| Operating temp. |
-40℃-125℃ |
| Storage temp. |
-40℃-125℃ |
| Zero temp. coefficient |
0.02%F.S. /℃(≥100kPa) | 0.04%F.S. /℃(<100kPa) |
| Span temp. coefficient |
0.02%F.S. /℃(≥100kPa) | 0.04%F.S. /℃(<100kPa) |
| Insulation resistance |
200Mohm/250VDC |
| Input impedance |
2kΩ-5kΩ |
| Long term stability |
≤0.2%F.S.S/year |
| Vibration |
20g (20-5000Hz) |
| Shock |
100g (11ms) |
| Response time |
≤1ms(up to 90%F.S.) |
| Lifetime |
10*106 (cycles) |
| Oil filling |
Silicon oil |
| Housing material |
Stainless steel 304 |
| Diaphragm |
Stainless steel 316L |
| Wire connection |
4 wire (typical) | 5 wire (available) 39×φ0.015, Silicon shielded, 200℃ bearing |
| Pin connection |
Kovar pin (0.6um Gold platted) |
| Weight |
130g(approx.) |
